296 KBSpecification
Fabric Specification
| Fibre Specifics | Toray T700 12k | |
|---|---|---|
| Colour | Black | |
| Fibre Orientation | 0, 90 | |
| Type | Component Prepreg | |
| Resin Matrix | Epoxy | |
| Weave | 1 x 1 Plain | |
| Format | Woven Fabric | |
| Filament Count | 12k | |
| Fibre Type | Carbon Fibre | |
| Ends | 0.55 | cm |
| Picks | 0.56 | cm |
Weight and Dimensions
| Width | 1000 | mm |
|---|---|---|
| Consolidated Thickness | 0.12 | mm |
| Areal Weight | 88 | g/m² |
| Resin Weight | 48 | % |
Fibre Properties
| Min Cure Temp | 80 | °C |
|---|---|---|
| Max Cure Temp | 120 | °C |
| Max Service Temp | 130 | °C |
| Filament Diameter | 7 | µm |
| Out-life (at 20°C) | 30 | Days |
| Freezer-life (at -18°C) | 12 | Months |
| UV Resistance | Good |
General Properties
| Gross Weight | 0.38 | kg |
|---|---|---|
| Brand | XPREG |
Shipping Information
Non Hazardous
This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.
Prepregs are Perishable!
Prepreg materials are stored in our freezers at -20°C (-4°F) and are shipped from our warehouse still frozen. This prepreg has an 'out-life' of at least 30 days at room temperature and so typical delivery times will still leave plenty of 'out-life' remaining.
During summer months or periods of hot weather, it is recommended to order prepregs at the start of the week (Monday or Tuesday) to avoid adding extra shipping days over the weekend.
Unless you plan to use the product immediately, it should be placed into frozen storage as soon as possible on receipt.
Because of their perishable nature, we only ship prepregs internationally on priority (air) services. As a result of this, it may not always be possible to order prepregs at the same time as some large or bulky items. If this is the case, the shipping calculator will warn you and suggest that you remove large items or place separate orders.
Customs Clearance
Although orders to the USA are delivered 'duty paid', orders over $800 are still subject to a 'formal' customs entry procedure where US customs may contact you to confirm some details. We remind customers that customs clearance is your responsibility and that when ordering perishable 'prepregs' it is important to respond quickly to any such request in order to avoid delay and potential damage to the material. Easy Composites cannot be held responsible for damage caused to prepregs during transport as a result of customs delays. By placing an order for prepreg materials, you accept these conditions of sale.
Package Size
When packaged, this product is over 1m in length. A small 'additional handling' charge will be included in the shipping cost.
Delivery Cost
To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.
XC130 88g (2.6oz) 18mm Spread-Tow Prepreg Carbon Fiber 1000mm (39")
- XPREG
- XC130-CST12PW-88(1000)-1
- No reviews
Ultra-lightweight prepreg reinforcement using our XPREG® XC130 resin system but 100% compatible with our XC110 system. This is an uncured prepreg material and requires an oven or autoclave to cure it.

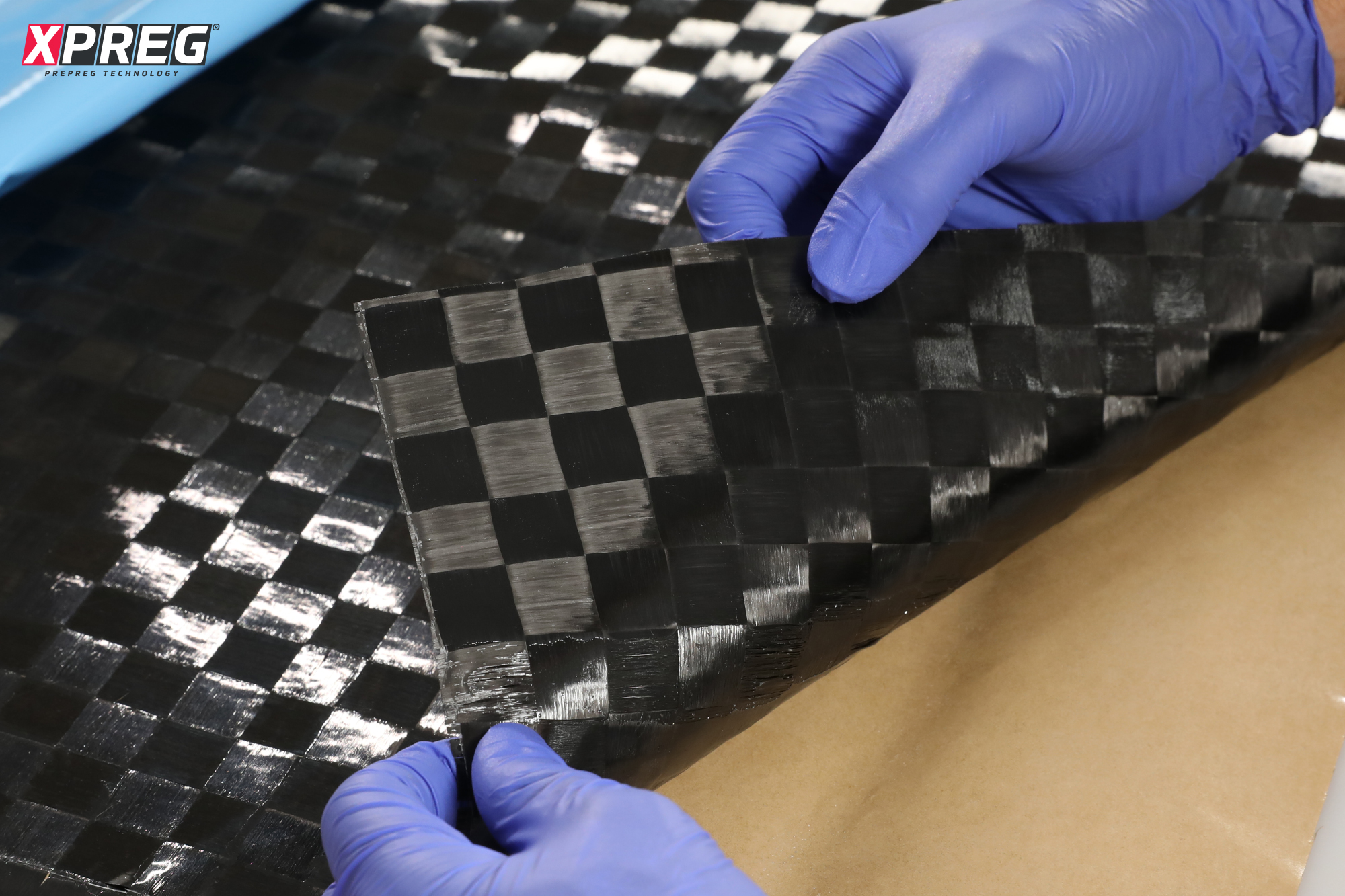

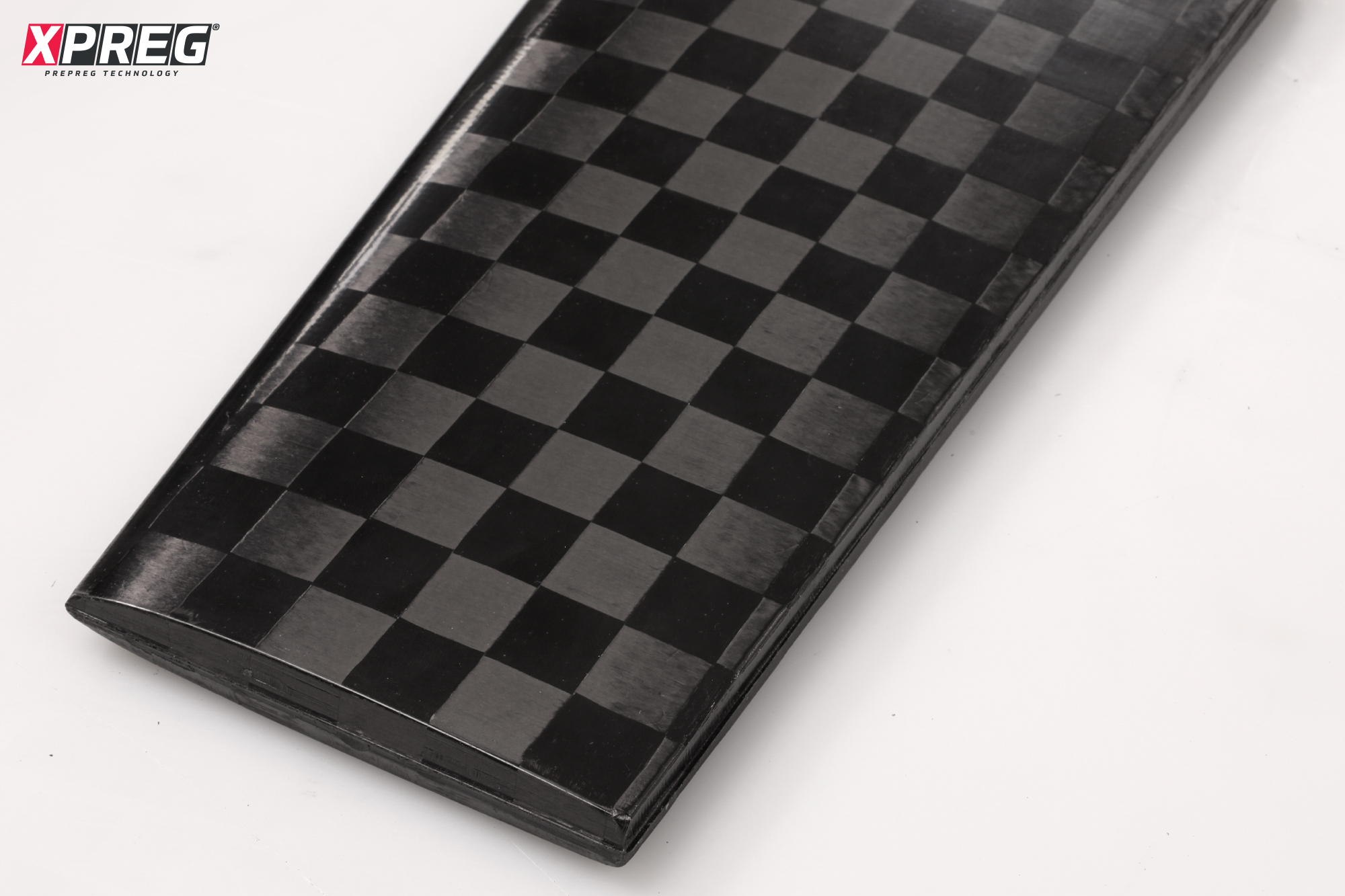

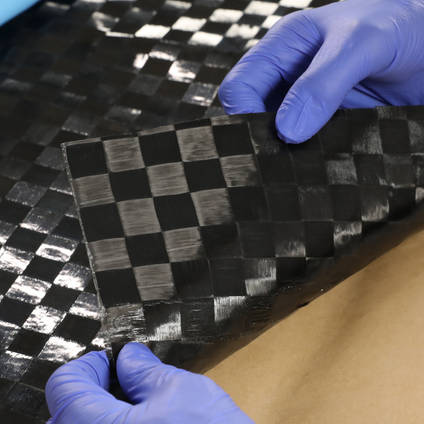

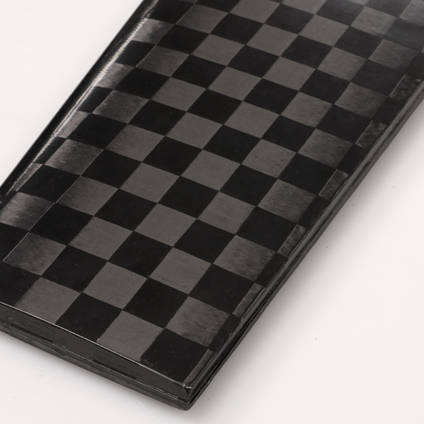

This 88g (2.6oz/yd²) spread-tow reinforcement is typically used as a surface ply on lightweight laminates, such as wing-skins, but can also provide an eye-catching appearance on cosmetic or structural components, on its own or combined with other reinforcements.
This prepreg reinforcement is 1m/1000mm (39") wide and sold in a choice of prepacked roll lengths.
PRODUCT VERSIONS
Roll Length
49 more can built in 2-3 days
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
XPREG® XC130 is an epoxy-based component prepreg carbon fiber system with a 130°C (266°F) maximum service temperature. Although XC130 is usually recommended only for autoclave cure, on this 88g (2.6oz) spread-tow it also delivers a pin-hole free 'visual quality' surface finish when cured correctly in an oven under vacuum pressure only (i.e. out-of-autoclave).
This toughened resin system offers excellent mechanical properties whilst its clear formulation and excellent surface finish make it suitable for the manufacture of visual quality carbon fiber components. The XC130 resin system has a long out-life with an intermediate tack level making for easy handling and laminating whilst its variable cure temperature from 80°C (176°F) allows a wide range of mold systems to be used.
Combining with Other Prepreg Reinforcements
XC130 is fully compatible with our XA120 adhesive film, as well as XC110 out-of-autoclave system, and other XC130 autoclave cure prepregs.
When oven curing out of autoclave
This 88g (2.6oz/yd²) spread-tow XC130 prepreg can be used to create a pin-hole free, visual quality surface ply without an autoclave, instead requiring only accurate temperature control (ramp and soak) and maximum vacuum bag pressure.
In order to achieve a pin-hole free surface finish when using the 88g (2.6oz) spread tow out-of-autoclave, it should be combined with our XC110 (out-of-autoclave) prepregs.
When curing in an autoclave
When this 88g (2.6oz) spread-tow will be cured in an autoclave, it should be used on its own or combined with any of our XC130 (autoclave cure) prepregs. Doing so will maintain the higher 130°C (266°F) Tg and higher mechanical properties of the XC130 system.
Typical Uses
This 88g (2.6oz) spread-tow carbon fiber is suitable for fully structural, as well as cosmetic applications. Given its extremely low weight of just 88gsm (2.6oz), it is often used in particularly lightweight applications like wing skins on RC models, or in fishing pole repairs.

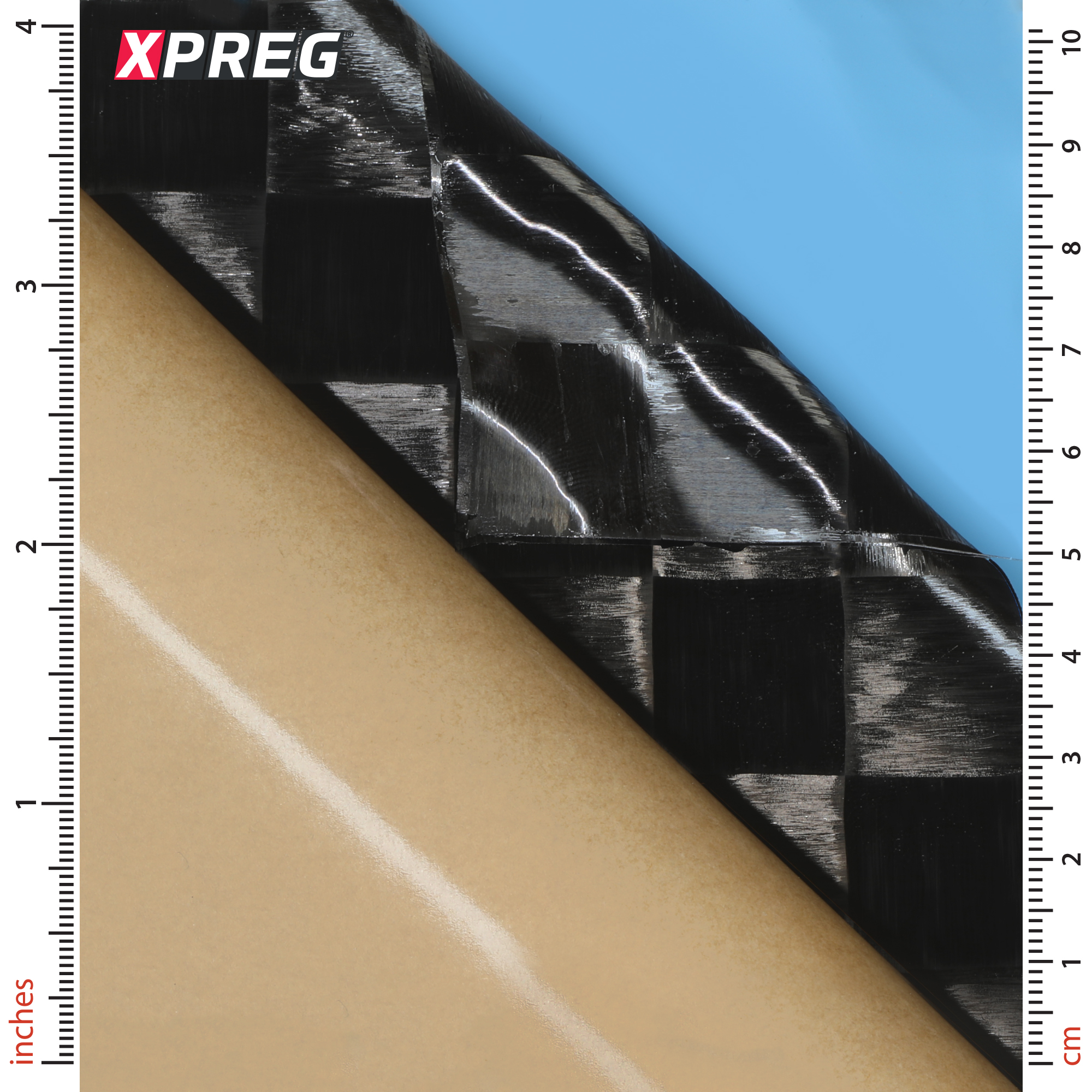

This spread-tow carbon fiber prepreg has 18mm (0.7") wide carbon 'tows' arranged in a plain weave pattern, creating the checkerboard appearance of plain weave carbon fiber but in a much larger pattern. The large pattern print of spread-tow means it is also used as a distinctive and eye-catching surface ply on cosmetic components like vehicle panels, interior trim and sports equipment ranging from hockey sticks to hydrofoils.
- Wing skins on RC planes
- Surface ply on vehicle panels
- Interior trim
- Fishing pole repairs
- Skis, snowboards, foils, kiteboards
How to Buy
All XPREG® prepregs are stored on site in our freezers. To reduce handling time and allow same-day dispatch, prepregs are available in pre-cut roll lengths. Choose the roll length you require from the options at the top of the page. When ordering a full roll of material, the option shows the typical roll length but please allow for length variance of plus or minus 1m (39") which has already been factored into the low unit price of our full length rolls.
Your XPREG® prepreg is sealed in air-tight packaging and will ship from us still frozen. Please see the transport tab for further details and important information about delivery.
The Sample Pack Contains two 400x300mm (15.7x11.8") pieces of prepreg.
Further Information
Curing
XC130 can be cured from 80°C to 130°C (176°F to 266°F), although service temperature will be determined by the final cure temperature. For out-of-autoclave cure, a precisely controlled stepped temperature cure cycle is required. See the Technical Datasheet for full details on recommended cure cycles.
Storage and Handling
The ‘out-life’ of XC130 is 6 weeks at 20°C (68°F).
When not in use, XPREG® prepregs should be kept frozen at -18°C (0°F) in sealed plastic packaging, in which condition the freezer-life is 12 months. When ready to use, the material should be removed from the freezer and allowed to thaw fully to room temperature before being removed from the packaging. See technical datasheet for full details storage and handling.
XPREG® XC130 is an epoxy-based component prepreg carbon fiber system with a 130°C (266°F) maximum service temperature. Although XC130 is usually recommended only for autoclave cure, on this 88g (2.6oz) spread-tow it also delivers a pin-hole free 'visual quality' surface finish when cured correctly in an oven under vacuum pressure only (i.e. out-of-autoclave).
This toughened resin system offers excellent mechanical properties whilst its clear formulation and excellent surface finish make it suitable for the manufacture of visual quality carbon fiber components. The XC130 resin system has a long out-life with an intermediate tack level making for easy handling and laminating whilst its variable cure temperature from 80°C (176°F) allows a wide range of mold systems to be used.
Combining with Other Prepreg Reinforcements
XC130 is fully compatible with our XA120 adhesive film, as well as XC110 out-of-autoclave system, and other XC130 autoclave cure prepregs.
When oven curing out of autoclave
This 88g (2.6oz/yd²) spread-tow XC130 prepreg can be used to create a pin-hole free, visual quality surface ply without an autoclave, instead requiring only accurate temperature control (ramp and soak) and maximum vacuum bag pressure.
In order to achieve a pin-hole free surface finish when using the 88g (2.6oz) spread tow out-of-autoclave, it should be combined with our XC110 (out-of-autoclave) prepregs.
When curing in an autoclave
When this 88g (2.6oz) spread-tow will be cured in an autoclave, it should be used on its own or combined with any of our XC130 (autoclave cure) prepregs. Doing so will maintain the higher 130°C (266°F) Tg and higher mechanical properties of the XC130 system.
Typical Uses
This 88g (2.6oz) spread-tow carbon fiber is suitable for fully structural, as well as cosmetic applications. Given its extremely low weight of just 88gsm (2.6oz), it is often used in particularly lightweight applications like wing skins on RC models, or in fishing pole repairs.
This spread-tow carbon fiber prepreg has 18mm (0.7") wide carbon 'tows' arranged in a plain weave pattern, creating the checkerboard appearance of plain weave carbon fiber but in a much larger pattern. The large pattern print of spread-tow means it is also used as a distinctive and eye-catching surface ply on cosmetic components like vehicle panels, interior trim and sports equipment ranging from hockey sticks to hydrofoils.
- Wing skins on RC planes
- Surface ply on vehicle panels
- Interior trim
- Fishing pole repairs
- Skis, snowboards, foils, kiteboards
How to Buy
All XPREG® prepregs are stored on site in our freezers. To reduce handling time and allow same-day dispatch, prepregs are available in pre-cut roll lengths. Choose the roll length you require from the options at the top of the page. When ordering a full roll of material, the option shows the typical roll length but please allow for length variance of plus or minus 1m (39") which has already been factored into the low unit price of our full length rolls.
Your XPREG® prepreg is sealed in air-tight packaging and will ship from us still frozen. Please see the transport tab for further details and important information about delivery.
The Sample Pack Contains two 400x300mm (15.7x11.8") pieces of prepreg.
Further Information
Curing
XC130 can be cured from 80°C to 130°C (176°F to 266°F), although service temperature will be determined by the final cure temperature. For out-of-autoclave cure, a precisely controlled stepped temperature cure cycle is required. See the Technical Datasheet for full details on recommended cure cycles.
Storage and Handling
The ‘out-life’ of XC130 is 6 weeks at 20°C (68°F).
When not in use, XPREG® prepregs should be kept frozen at -18°C (0°F) in sealed plastic packaging, in which condition the freezer-life is 12 months. When ready to use, the material should be removed from the freezer and allowed to thaw fully to room temperature before being removed from the packaging. See technical datasheet for full details storage and handling.
Specification
Fabric Specification
| Fibre Specifics | Toray T700 12k | |
|---|---|---|
| Colour | Black | |
| Fibre Orientation | 0, 90 | |
| Type | Component Prepreg | |
| Resin Matrix | Epoxy | |
| Weave | 1 x 1 Plain | |
| Format | Woven Fabric | |
| Filament Count | 12k | |
| Fibre Type | Carbon Fibre | |
| Ends | 0.55 | cm |
| Picks | 0.56 | cm |
Weight and Dimensions
| Width | 1000 | mm |
|---|---|---|
| Consolidated Thickness | 0.12 | mm |
| Areal Weight | 88 | g/m² |
| Resin Weight | 48 | % |
Fibre Properties
| Min Cure Temp | 80 | °C |
|---|---|---|
| Max Cure Temp | 120 | °C |
| Max Service Temp | 130 | °C |
| Filament Diameter | 7 | µm |
| Out-life (at 20°C) | 30 | Days |
| Freezer-life (at -18°C) | 12 | Months |
| UV Resistance | Good |
General Properties
| Gross Weight | 0.38 | kg |
|---|---|---|
| Brand | XPREG |
Unfortunately we do not stock any pre-pregs with a flexible resin. The only flexible resin we supply is our EF80 Flexible Epoxy Resin which is suitable for wet lay and vacuum bagged processes.
Unfortunately we do not stock any pre-pregs with a flexible resin. The only flexible resin we supply is our EF80 Flexible Epoxy Resin which is suitable for wet lay and vacuum bagged processes.
