Specification
Fabric Specification
| Fibre Specifics | Toray T300 6k | |
|---|---|---|
| Colour | Black | |
| Fibre Orientation | 0, 90 | |
| Type | Component Prepreg | |
| Resin Matrix | Epoxy | |
| Weave | 2 x 2 Twill | |
| Format | Woven Fabric | |
| Filament Count | 6k | |
| Fibre Type | Carbon Fibre | |
| Brand | XPREG | |
| Ends | 5.1 | cm |
| Picks | 5.1 | cm |
Weight and Dimensions
| Width | 1250 | mm |
|---|---|---|
| Consolidated Thickness | 0.45 | mm |
| Areal Weight | 416 | g/m² |
| Resin Weight | 38 | % |
Fibre Properties
| Min Cure Temp | 85 | °C |
|---|---|---|
| Max Cure Temp | 120 | °C |
| Max Service Temp | 115 | °C |
| Filament Diameter | 7 | µm |
| Out-life (at 20°C) | 30 | Days |
| Freezer-life (at -18°C) | 12 | Months |
| UV Resistance | Good |
Typical Laminate Properties
| Compressive Strength | 483 | MPa |
|---|---|---|
| Tensile Strength | 521 | MPa |
| Tensile Modulus | 55.1 | GPa |
| Flexural Strength | 777 | MPa |
| Flexural Modulus | 46.7 | GPa |
| Interlaminar Shear Strength | 64.7 | MPa |
| Tg Onset (DMA) | 121 | °C |
| Tg Peak (DMA) | 135 | °C |
General Properties
| Gross Weight | 1.22 | kg |
|---|---|---|
| Brand | XPREG |
Shipping Information
Non Hazardous
This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.
Prepregs are Perishable!
Prepreg materials are stored in our freezers at -20°C (-4°F) and are shipped from our warehouse still frozen. This prepreg has an 'out-life' of at least 30 days at room temperature and so typical delivery times will still leave plenty of 'out-life' remaining.
During summer months or periods of hot weather, it is recommended to order prepregs at the start of the week (Monday or Tuesday) to avoid adding extra shipping days over the weekend.
Unless you plan to use the product immediately, it should be placed into frozen storage as soon as possible on receipt.
Because of their perishable nature, we only ship prepregs internationally on priority (air) services. As a result of this, it may not always be possible to order prepregs at the same time as some large or bulky items. If this is the case, the shipping calculator will warn you and suggest that you remove large items or place separate orders.
Customs Clearance
Although orders to the USA are delivered 'duty paid', orders over $800 are still subject to a 'formal' customs entry procedure where US customs may contact you to confirm some details. We remind customers that customs clearance is your responsibility and that when ordering perishable 'prepregs' it is important to respond quickly to any such request in order to avoid delay and potential damage to the material. Easy Composites cannot be held responsible for damage caused to prepregs during transport as a result of customs delays. By placing an order for prepreg materials, you accept these conditions of sale.
Package Size
When packaged, this product is over 1m in length. A small 'additional handling' charge will be included in the shipping cost.
Delivery Cost
To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.
XC110 416g (12.3oz) 2x2 Twill 6k Prepreg Carbon Fiber 1250mm (49")
- XPREG
- XC110-C611T2-416(1250)-1
- No reviews

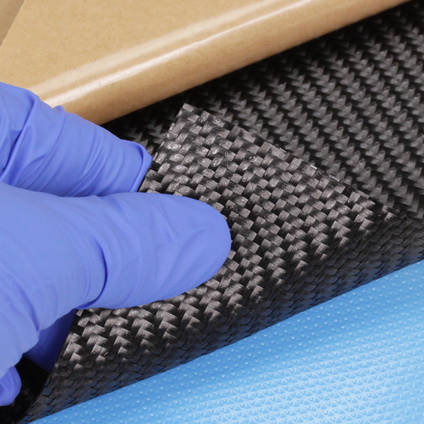

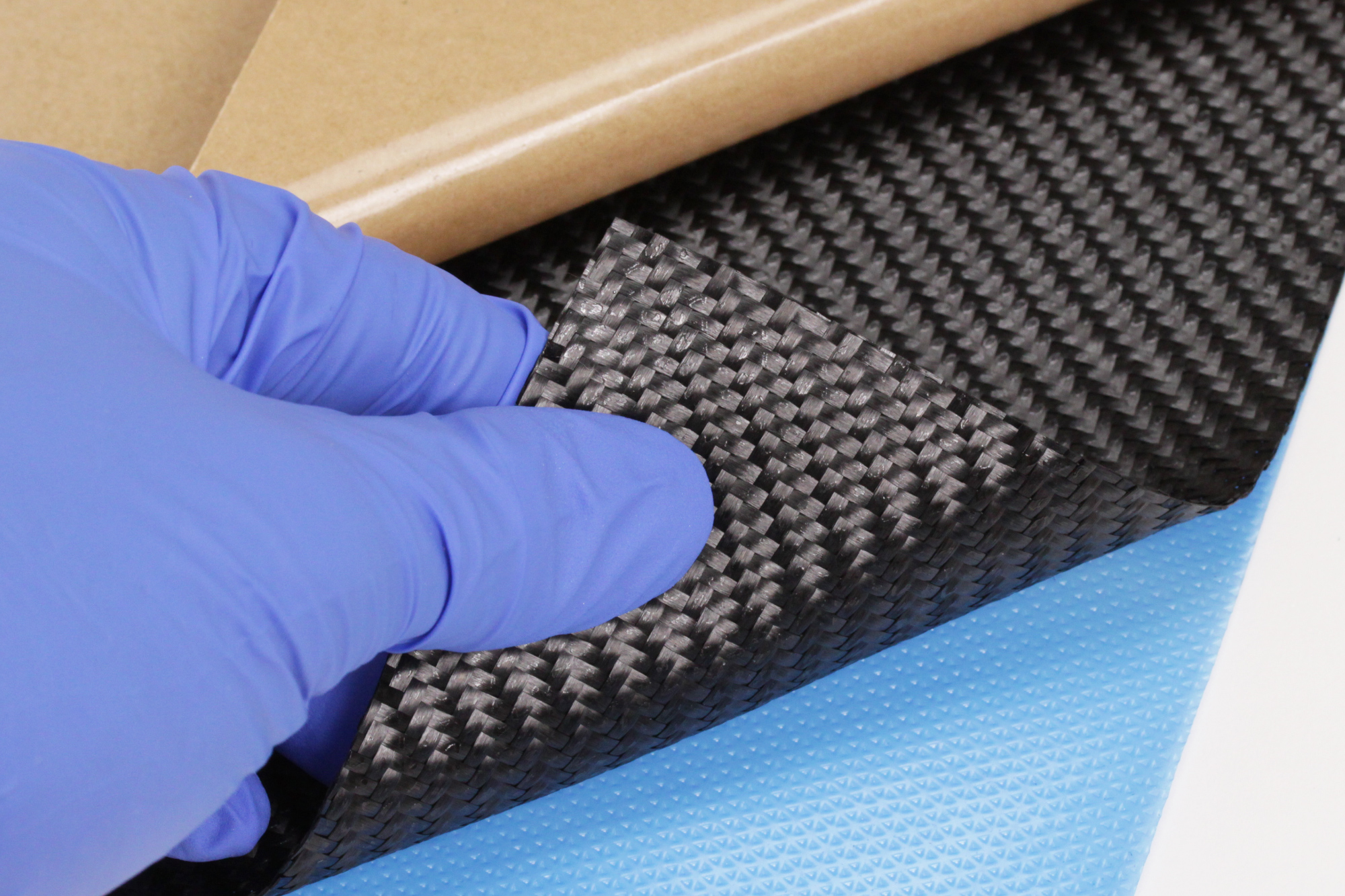

The backing ply for our XPREG® XC110 out-of-autoclave prepreg carbon fiber system. This is an uncured prepreg material and requires an oven or autoclave to cure it.

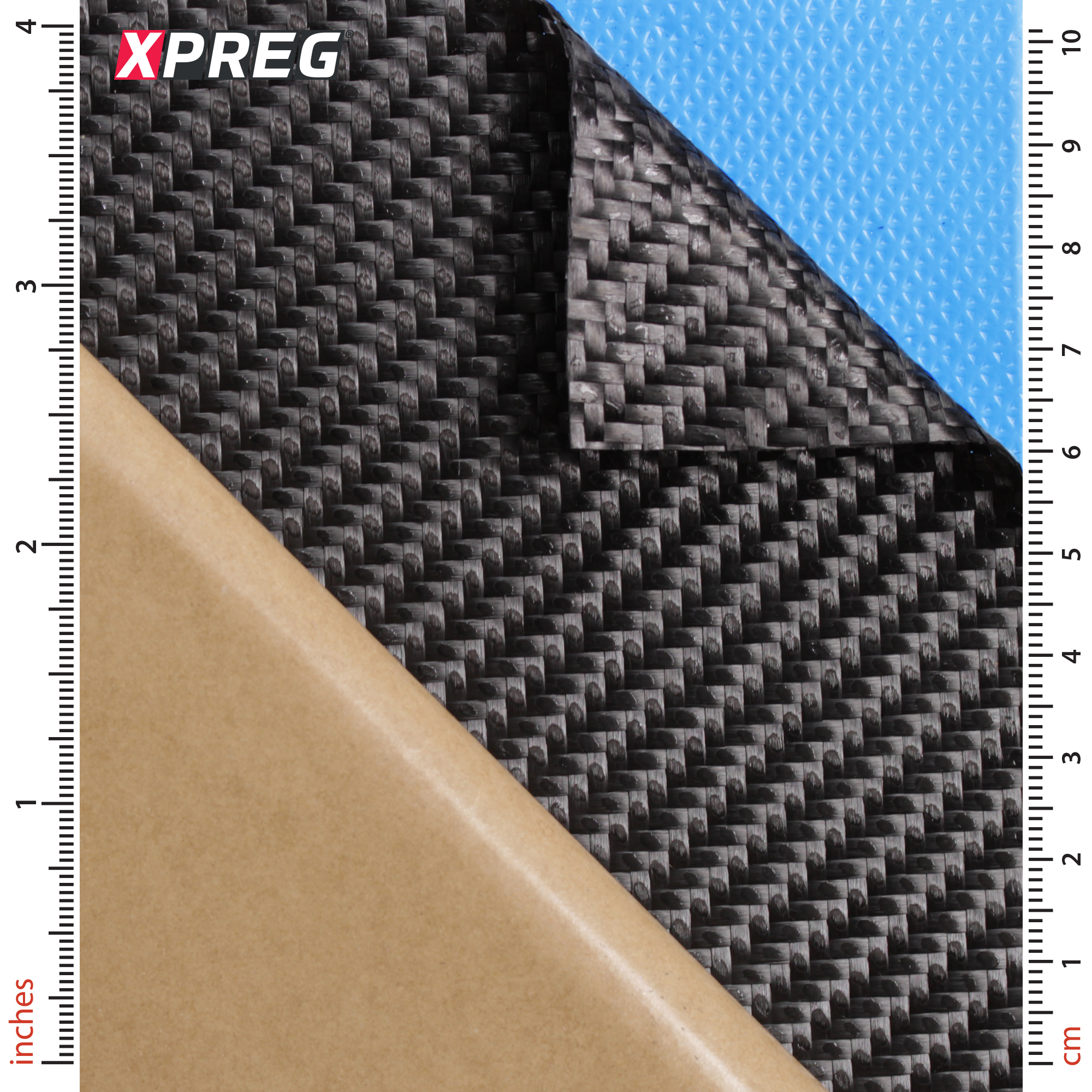

This 416gsm (12.3oz/yd²) 6k prepreg uses a 2x2 twill weave for the classic carbon fiber appearance and excellent drape characteristics. It can be used on its own, in one or more plies, or together with lighter surface ply for the best possible surface finish.
This prepreg reinforcement is 1.25m/1250mm (49") wide and sold in a choice of prepacked roll lengths.
PRODUCT VERSIONS
Roll Length
3 more can built in 2-3 days
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
XPREG® XC110 is an advanced OOA prepreg carbon fiber backing system designed specifically for out-of-autoclave (vacuum bag, oven cure) processing. After several years in development, XC110 is a class-leading prepreg system capable of producing carbon fiber components with a 'class A' surface finish and minimal void content when oven-cured under vacuum pressure only.
Components made using the XC110 resin system offer mechanical properties comparable to autoclave-cure systems (such as XPREG® XC130) without the need for expensive autoclave plant or the associated cycle costs. The system is also ideally suited for large components which exceed the capacity of typical autoclaves, such as boat hulls and turbine blades.
XC110 prepregs can be backed-up with (and co-cured alongside) unidirectional reinforcement (from the XC130 range) and are fully compatible with our XA120 adhesive film meaning that even the most complex composite structures - including honeycomb cores - can be achieved out-of-autoclave.
The 416g (12.3oz/yd²) 6k material listed on this page is recommended for use as an out of autoclave prepreg carbon fiber backing ply, typically used to back-up a layer of XC110 210g (6.2oz) 3k Surface Ply. It is however possible to use this large pattern OOA prepreg carbon fiber 6k material as a surface ply, although slightly more surface print should be expected from this heavier fiber.
Typical Uses
OOA prepreg carbon fiber surface fabrics such as this XC110 are the recommended system for both structural and cosmetic applications where components will be cured without an autoclave.

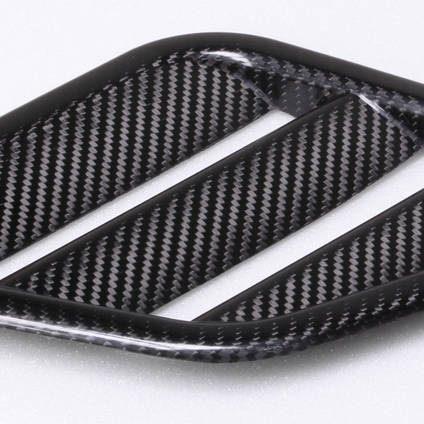

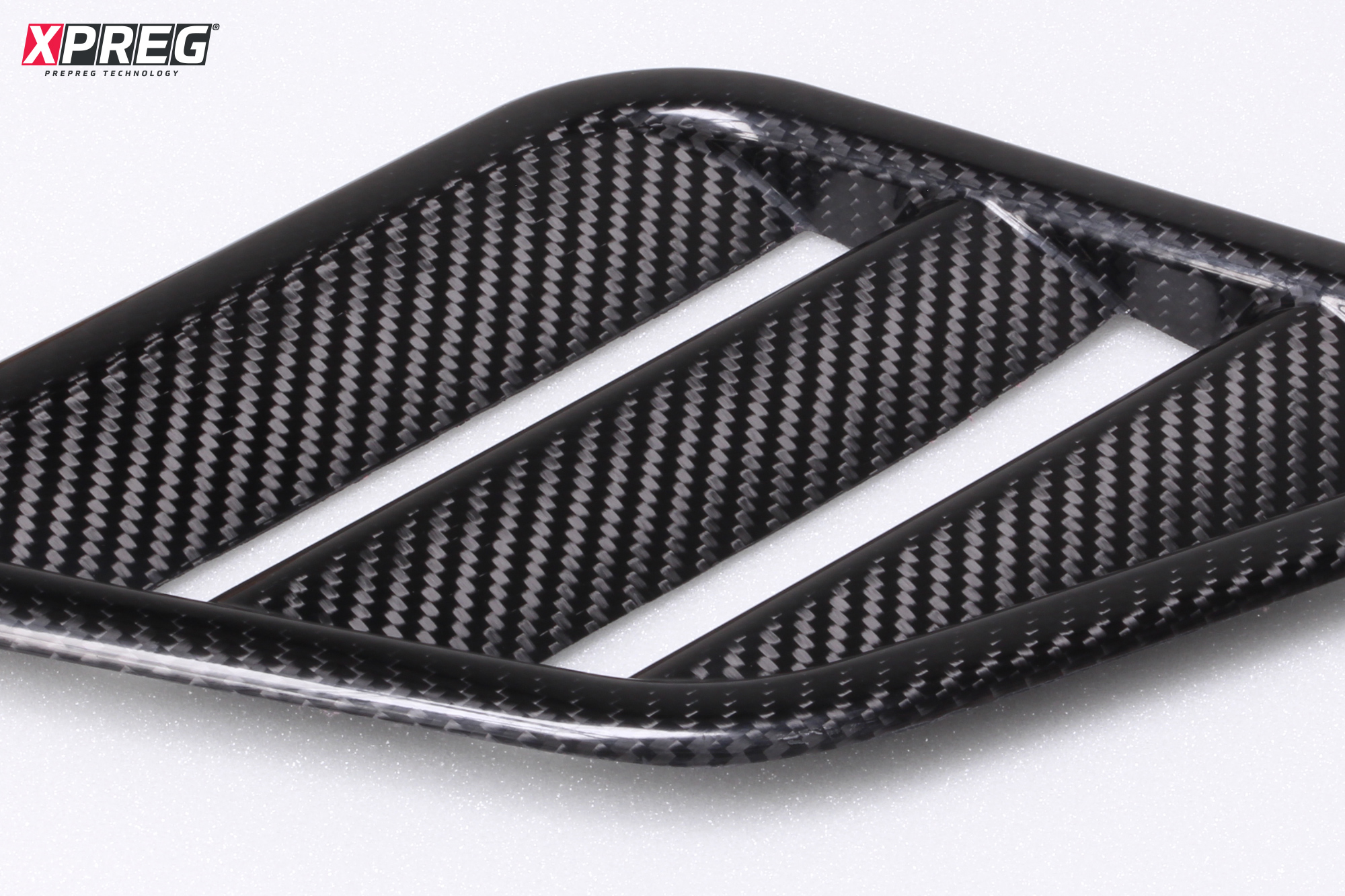

The combination of excellent mechanical performance, visual quality appearance and class-A surface finish make XC110 prepregs suitable for a wide range of applications from large-scale structural components to high-precision cosmetic parts.
High Performance
- Motorsport
- Light Aerospace / RC
- Bike frames
- Racing boats
- Skis, boards
Large Scale
- Boat hulls
- Wind energy
- Mass transit
- Light aircraft
Cosmetic/Lifestyle
- Interior trim
- Phone cases
- Furniture
- Stands/display
How to Buy
All XPREG® prepregs are stored on site in our freezers. To reduce handling time and allow same-day dispatch, prepregs are available in pre-cut roll lengths. Choose the roll length you require from the drop-down list at the top of the page. When ordering a full roll of fabric the drop-down list shows the typical roll length but please allow for length variance of plus or minus 1m which has already been factored into the low unit price of our full length rolls.
Your XPREG® prepreg is sealed in air-tight packaging and will ship from us still frozen. Please see the transport tab for further details and important information about delivery.
The Sample Pack Contains two 400x300mm (15.7x11.8") pieces of pre-preg.
Further Information
Curing

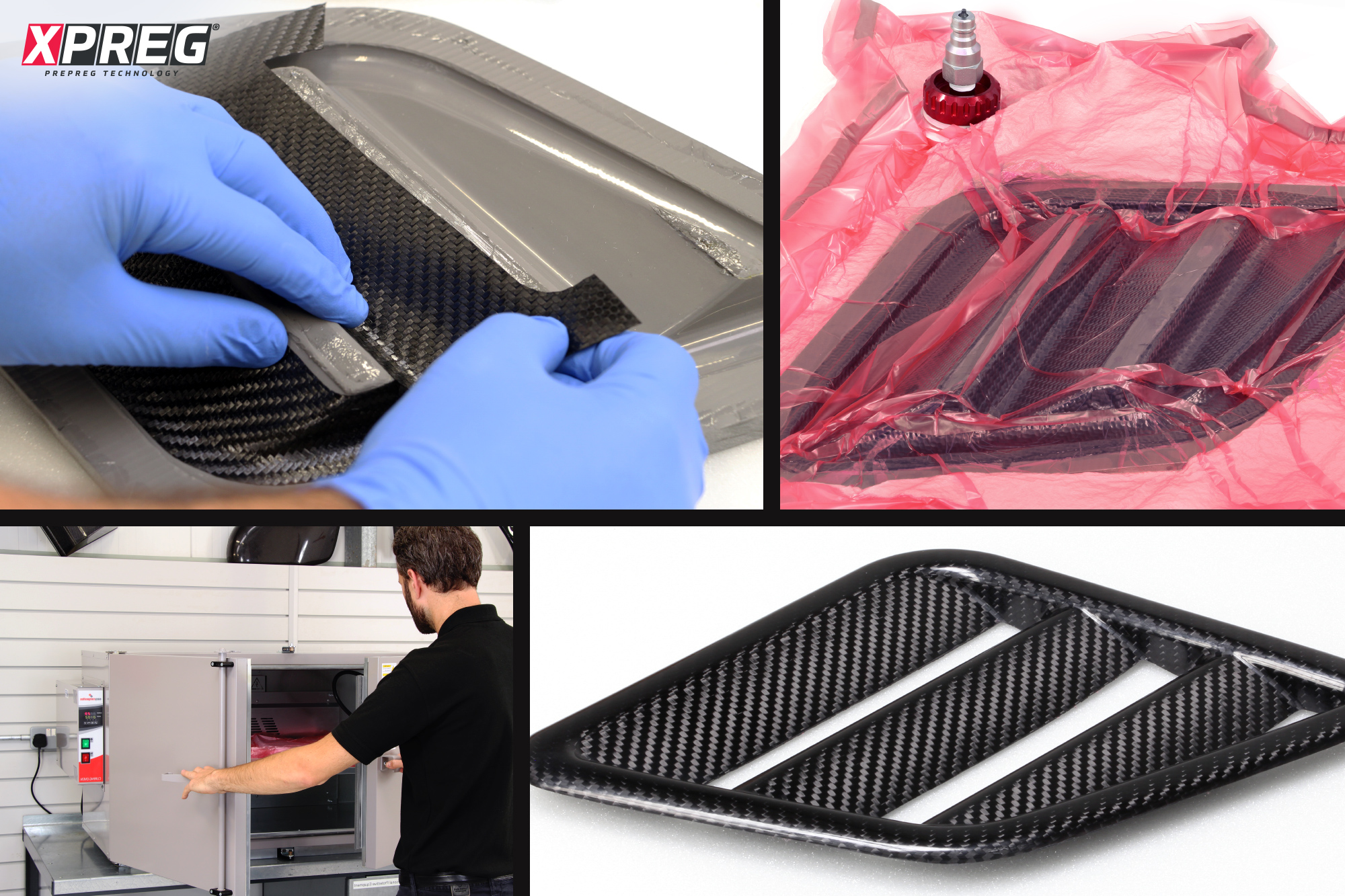

XPREG® XC110 is designed to be oven cured in a vacuum bag at full vacuum pressure however it can also be cured in an autoclave or hot-press. Minimum vacuum pressure is 10mbar.
For best results, an accurately controlled multi-stage temperature cycle with final cure temperature of 120°C (248°F) should be followed. See technical datasheet or XC110 Processing Guide for details, including a range of alternative cure cycles from 85°C (185°F).
Suitable Molds/Tooling

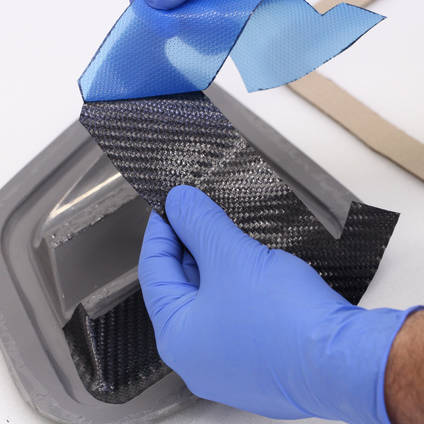

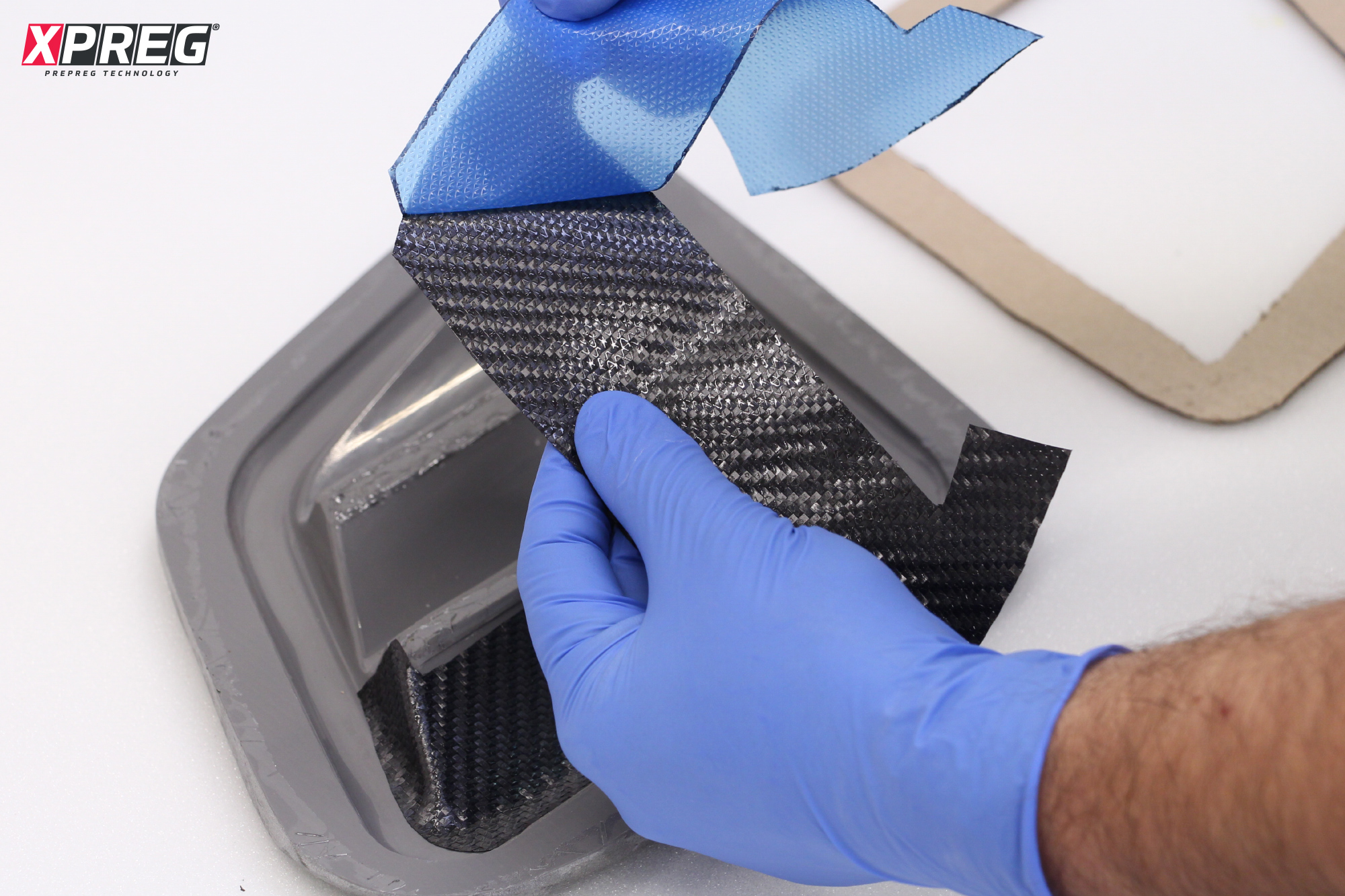

Molds/tools should be epoxy-based composite molds, epoxy tooling board or metal. In all cases, molds must be temperature stable to a minimum of 85°C (185°F) but ideally to 120°C (248°F).
Fully Compatible:
- High temp epoxy hand-layup molds (e.g. EG160 / EMP160)
- Carbon or glass fiber prepreg molds (e.g. XPREG® XT135)
- Epoxy tooling board (e.g. EB700 Epoxy Tooling Board with S120 Board Sealer)
- Aluminum / stainless steel molds
- Toughened glass (for flat sheet/panels)
Although it is possible to use vinylester tools (such as Uni-Mold™) they are not recommended due to the increased possibility of surface imperfections (pin holes) which can occur when XPREG® XC110 is cured in the presence of vinylester.
See technical data sheet and XC110 Processing Guide for full details on mold compatibility.
Storage and Handling
When not in use, XPREG® prepregs should be kept frozen at -18°C (0°F) in sealed plastic packaging. When ready to use, the material should be removed from the freezer and allowed to thaw fully to room temperature before being removed from the packaging.
Remaining material should be re-sealed before returning to the freezer to avoid the risk of moisture uptake.
XPREG® XC110 is an advanced OOA prepreg carbon fiber backing system designed specifically for out-of-autoclave (vacuum bag, oven cure) processing. After several years in development, XC110 is a class-leading prepreg system capable of producing carbon fiber components with a 'class A' surface finish and minimal void content when oven-cured under vacuum pressure only.
Components made using the XC110 resin system offer mechanical properties comparable to autoclave-cure systems (such as XPREG® XC130) without the need for expensive autoclave plant or the associated cycle costs. The system is also ideally suited for large components which exceed the capacity of typical autoclaves, such as boat hulls and turbine blades.
XC110 prepregs can be backed-up with (and co-cured alongside) unidirectional reinforcement (from the XC130 range) and are fully compatible with our XA120 adhesive film meaning that even the most complex composite structures - including honeycomb cores - can be achieved out-of-autoclave.
The 416g (12.3oz/yd²) 6k material listed on this page is recommended for use as an out of autoclave prepreg carbon fiber backing ply, typically used to back-up a layer of XC110 210g (6.2oz) 3k Surface Ply. It is however possible to use this large pattern OOA prepreg carbon fiber 6k material as a surface ply, although slightly more surface print should be expected from this heavier fiber.
Typical Uses
OOA prepreg carbon fiber surface fabrics such as this XC110 are the recommended system for both structural and cosmetic applications where components will be cured without an autoclave.
The combination of excellent mechanical performance, visual quality appearance and class-A surface finish make XC110 prepregs suitable for a wide range of applications from large-scale structural components to high-precision cosmetic parts.
High Performance
- Motorsport
- Light Aerospace / RC
- Bike frames
- Racing boats
- Skis, boards
Large Scale
- Boat hulls
- Wind energy
- Mass transit
- Light aircraft
Cosmetic/Lifestyle
- Interior trim
- Phone cases
- Furniture
- Stands/display
How to Buy
All XPREG® prepregs are stored on site in our freezers. To reduce handling time and allow same-day dispatch, prepregs are available in pre-cut roll lengths. Choose the roll length you require from the drop-down list at the top of the page. When ordering a full roll of fabric the drop-down list shows the typical roll length but please allow for length variance of plus or minus 1m which has already been factored into the low unit price of our full length rolls.
Your XPREG® prepreg is sealed in air-tight packaging and will ship from us still frozen. Please see the transport tab for further details and important information about delivery.
The Sample Pack Contains two 400x300mm (15.7x11.8") pieces of pre-preg.
Further Information
Curing
XPREG® XC110 is designed to be oven cured in a vacuum bag at full vacuum pressure however it can also be cured in an autoclave or hot-press. Minimum vacuum pressure is 10mbar.
For best results, an accurately controlled multi-stage temperature cycle with final cure temperature of 120°C (248°F) should be followed. See technical datasheet or XC110 Processing Guide for details, including a range of alternative cure cycles from 85°C (185°F).
Suitable Molds/Tooling
Molds/tools should be epoxy-based composite molds, epoxy tooling board or metal. In all cases, molds must be temperature stable to a minimum of 85°C (185°F) but ideally to 120°C (248°F).
Fully Compatible:
- High temp epoxy hand-layup molds (e.g. EG160 / EMP160)
- Carbon or glass fiber prepreg molds (e.g. XPREG® XT135)
- Epoxy tooling board (e.g. EB700 Epoxy Tooling Board with S120 Board Sealer)
- Aluminum / stainless steel molds
- Toughened glass (for flat sheet/panels)
Although it is possible to use vinylester tools (such as Uni-Mold™) they are not recommended due to the increased possibility of surface imperfections (pin holes) which can occur when XPREG® XC110 is cured in the presence of vinylester.
See technical data sheet and XC110 Processing Guide for full details on mold compatibility.
Storage and Handling
When not in use, XPREG® prepregs should be kept frozen at -18°C (0°F) in sealed plastic packaging. When ready to use, the material should be removed from the freezer and allowed to thaw fully to room temperature before being removed from the packaging.
Remaining material should be re-sealed before returning to the freezer to avoid the risk of moisture uptake.
Specification
Fabric Specification
| Fibre Specifics | Toray T300 6k | |
|---|---|---|
| Colour | Black | |
| Fibre Orientation | 0, 90 | |
| Type | Component Prepreg | |
| Resin Matrix | Epoxy | |
| Weave | 2 x 2 Twill | |
| Format | Woven Fabric | |
| Filament Count | 6k | |
| Fibre Type | Carbon Fibre | |
| Brand | XPREG | |
| Ends | 5.1 | cm |
| Picks | 5.1 | cm |
Weight and Dimensions
| Width | 1250 | mm |
|---|---|---|
| Consolidated Thickness | 0.45 | mm |
| Areal Weight | 416 | g/m² |
| Resin Weight | 38 | % |
Fibre Properties
| Min Cure Temp | 85 | °C |
|---|---|---|
| Max Cure Temp | 120 | °C |
| Max Service Temp | 115 | °C |
| Filament Diameter | 7 | µm |
| Out-life (at 20°C) | 30 | Days |
| Freezer-life (at -18°C) | 12 | Months |
| UV Resistance | Good |
Typical Laminate Properties
| Compressive Strength | 483 | MPa |
|---|---|---|
| Tensile Strength | 521 | MPa |
| Tensile Modulus | 55.1 | GPa |
| Flexural Strength | 777 | MPa |
| Flexural Modulus | 46.7 | GPa |
| Interlaminar Shear Strength | 64.7 | MPa |
| Tg Onset (DMA) | 121 | °C |
| Tg Peak (DMA) | 135 | °C |
General Properties
| Gross Weight | 1.22 | kg |
|---|---|---|
| Brand | XPREG |
It is quite common for domestic ovens to only have a lowest settable temperature of around 70C so you're not alone, however, the temperature of the initial 'dwell' is particularly important for OOA (out of autoclave) prepregs and can have quite an effect on the quality of the surface finish on the component so you might need to accept some compromise if you can't accurately keep the initial dwell down to 70C.
Given that the lowest temperature you can set is 76C (when the target would be 70C) I would just suggest using the standard cure cycle (or in your case the standard 'switched' cure cycle, because you can't set a ramp rate) and then leave the rest the same. Technically, you could shorten the initial dwell because you're running a slightly higher temperature, but because the accuracy and stability of a thermostatically switched domestic oven isn't great, you're better off curing a little longer than you need to, to be on the safe side.
Unfortunately we do not stock any pre-pregs with a flexible resin. The only flexible resin we supply is our EF80 Flexible Epoxy Resin which is suitable for wet lay and vacuum bagged processes.
Our XC110 OOA and XC130 Autoclave Component PrePreg and XA120 material don't necessarily need to be shipped in insulated/dry ice packed boxes but is shipped direct from our freezers meaning that for at least the first 12-24hours of the delivery, it remains frozen. We even have several long-term Asia and Australian/NZ based customers who regularly purchase PrePreg from us in large quantities without issues.
The out-life of the material (the cumulative time that the PrePreg can spend out of the freezer) is at least 28 days at 20°C - as such, you should still have a minimum of 20+days of useable life left on arrival. As soon as the material arrives with you, if you put it straight into the freezer, it will preserve the remaining outlife. In most cases the 28 days is conservative too and in practice, you will get more than this.
This fabric uses a 416gsm base cloth which is then impregnated with resin at a 38% fibre resin ratio to give a total weight of 693g per square meter of finished cloth.
