PP200 Nylon Peel Ply 1.52m (Red Tracer) - 5lm Folded Pack

PP200 is an 85gsm (2.51oz/yd) nylon peel ply suitable for vacuum bagging of wet-lay laminates, peel ply resin infusion and hand-layup applications. It is compatible with a wide range of resin systems including epoxy, polyester and vinylester.

Nylon peel ply offers a lower cost alternative to our aerospace-grade nylon-66 peel ply and is suitable for most applications. The main differences being that this has a lower temperature tolerance than PP230.

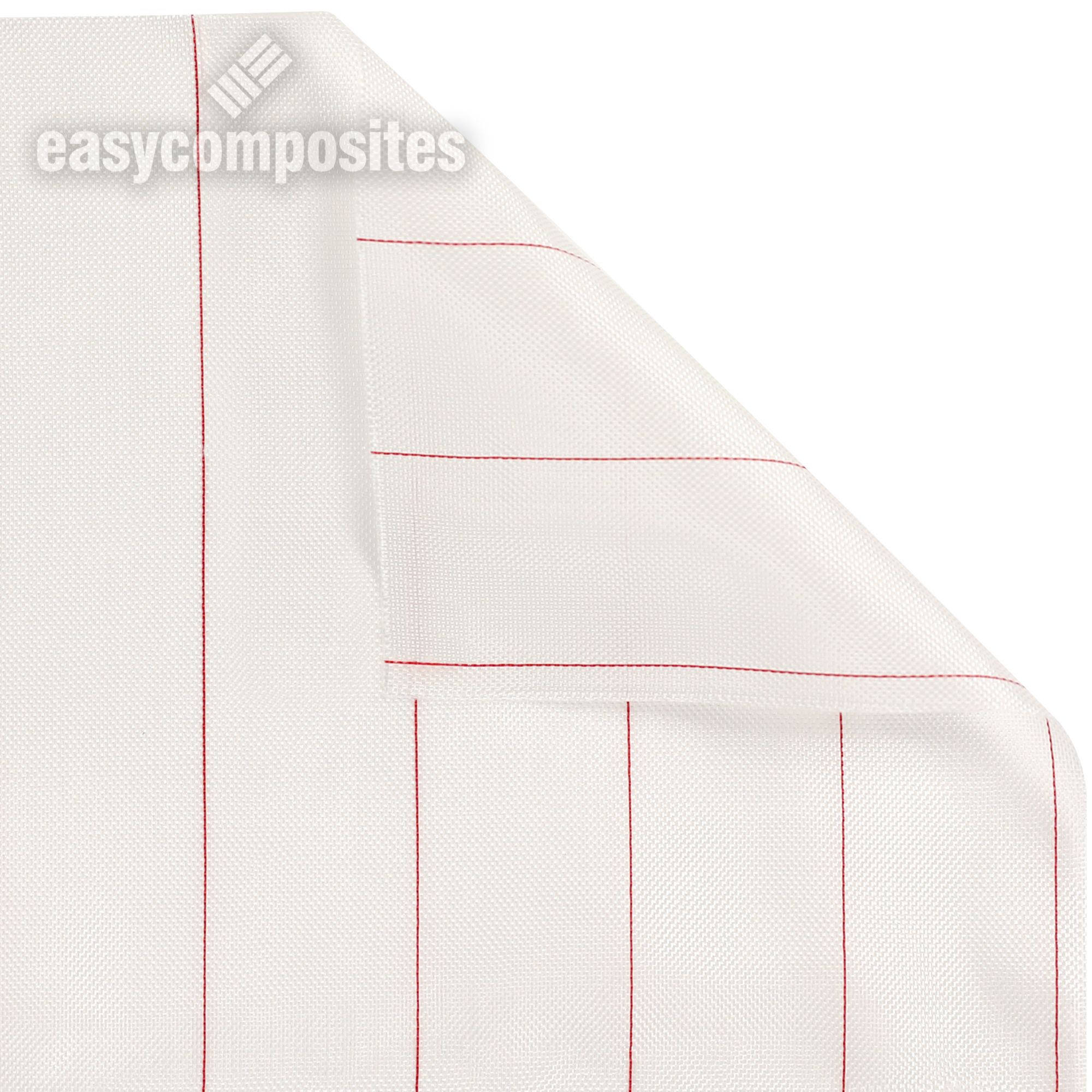

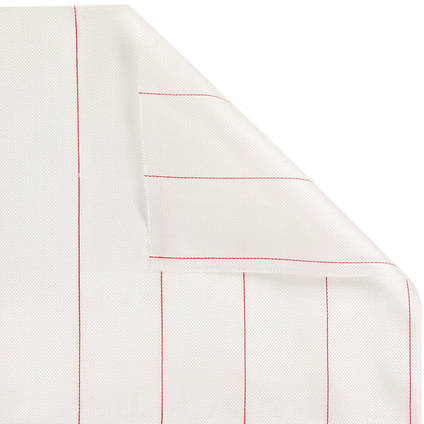

PP200 is a tightly woven white fabric with red 'tracer' lines, still visible after wet-out, to reduce the risk of the peel ply being accidentally left on the cured laminate.

Typical Uses

• Resin infusion (epoxy, polyester or vinylester)
• Vacuum bagged wet-lay
• Hand-layup, where secondary bonding is required

How to Buy

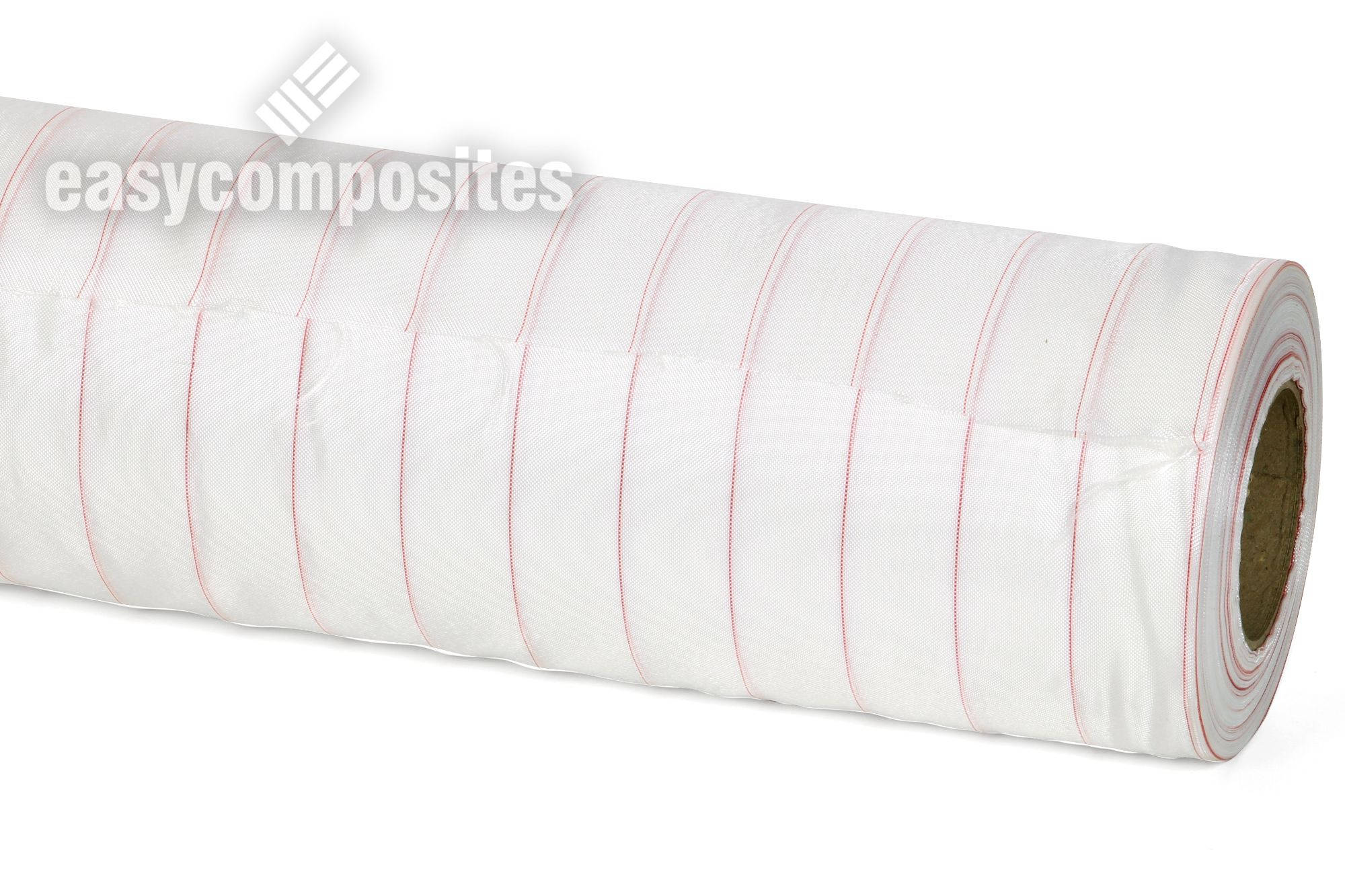

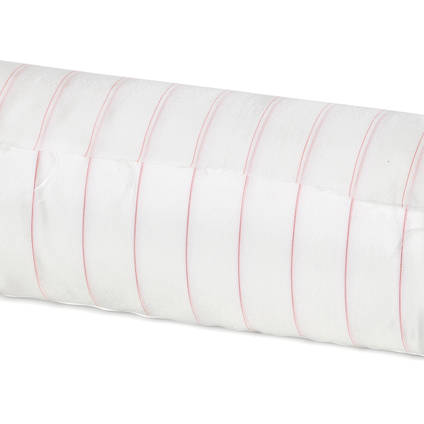

This peel-ply is available to buy in a folded 5lm (5.5yd) pack or by the linear meter (10lm+). Please choose how you would like to purchase from the drop-down list above.

The material itself is 1.52m wide meaning that each linear meter is equal to 1.52sqm (1.82yd²).

The 1.52m width of the peel-ply means that (except for the folded pack) it is supplied in a 160cm long box. Please be aware that this 'oversize' package can result in higher transport costs for some international destinations. The 5m pack is folded into a small package which avoids this 'oversize' charge.

We believe we offer unbeatable prices on vacuum bagging consumables. To make comparisons easy, select the different pack/roll sizes from the drop down menu above.

Further Information

Typical Use

Peel ply is most commonly used to create a textured surface on a laminate ideal for secondary laminating/bonding or to act as a porous, removable barrier between the laminate and other bagging consumables for processes such as resin infusion.

Being a porous layer, peel ply allows the vacuum to bleed trapped air and volatiles out of the laminate and so finds applications in wet-lay vacuum bagging, resin infusion and some prepreg laminating.

Using Peel Ply in Different Processes:

• Resin Infusion
• [ -- Dry Reinforcement -- ]
• PP200 Peel Ply
• Infusion Mesh
• Vacuum Bagging Film
• Vacuum Bagged Wet Layup
• [ -- Wet Laminate -- ]
• PP200 Peel Ply<
• Perforated Release Film
• Breather Layer Cloth
•
• Vacuum Bagging Film
• Hand-Layup
• [ -- Wet Laminate -- ]
• PP200 Peel Ply
