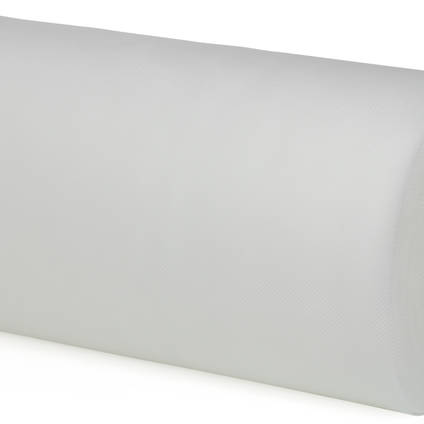

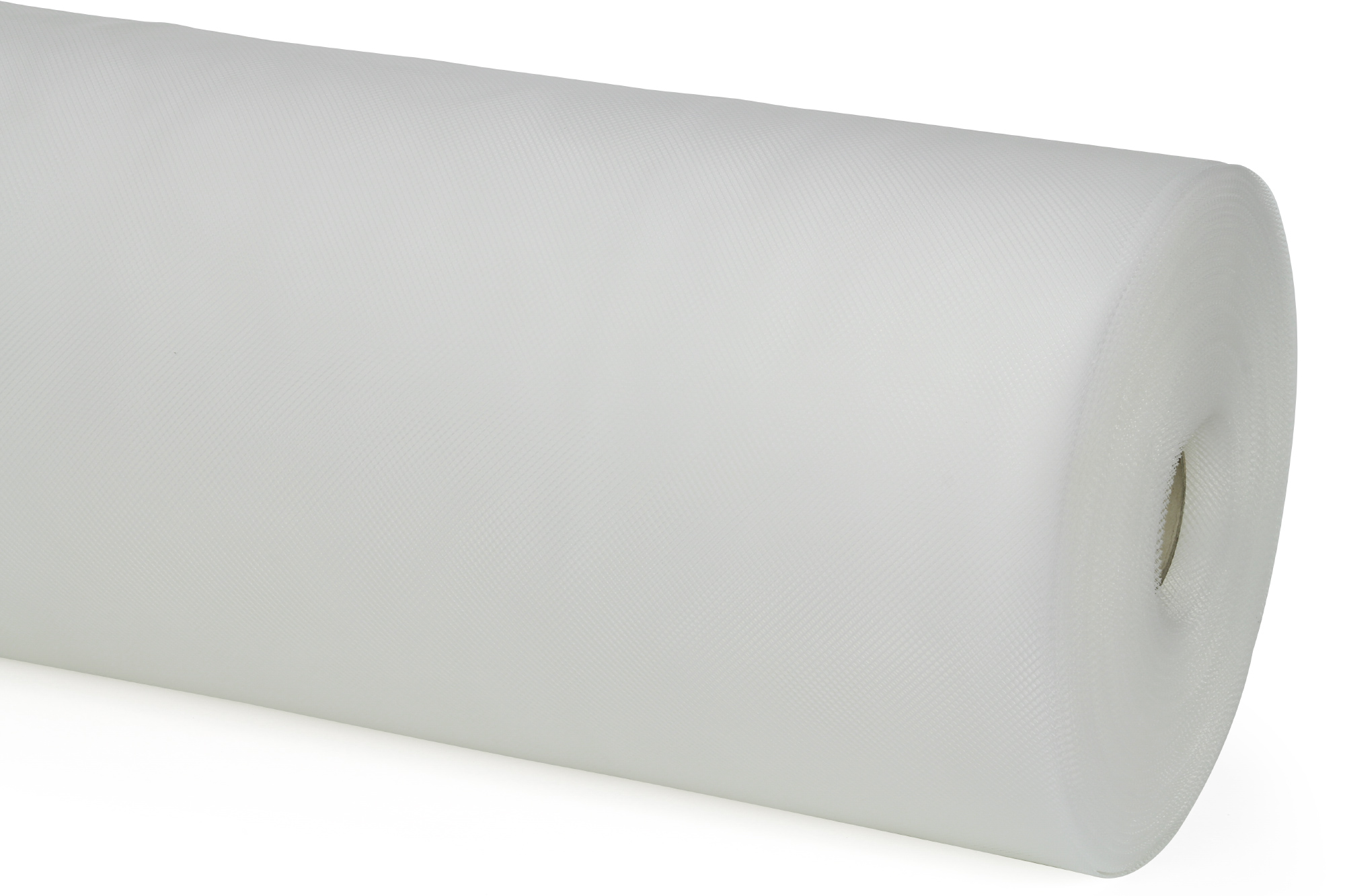

FM100 Infusion Mesh 1050mm (42")

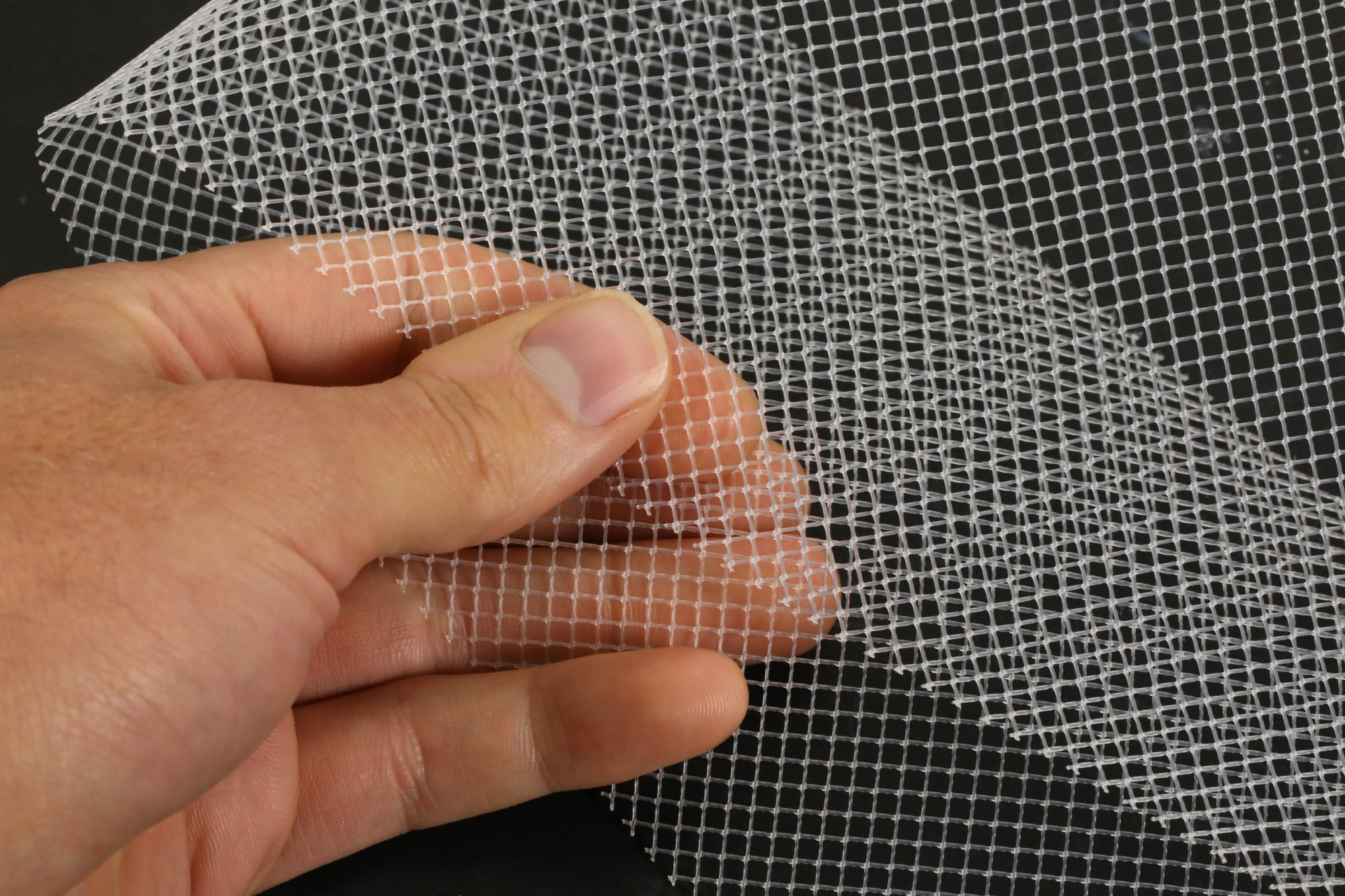

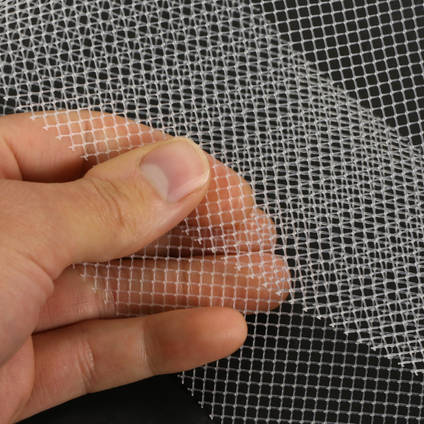

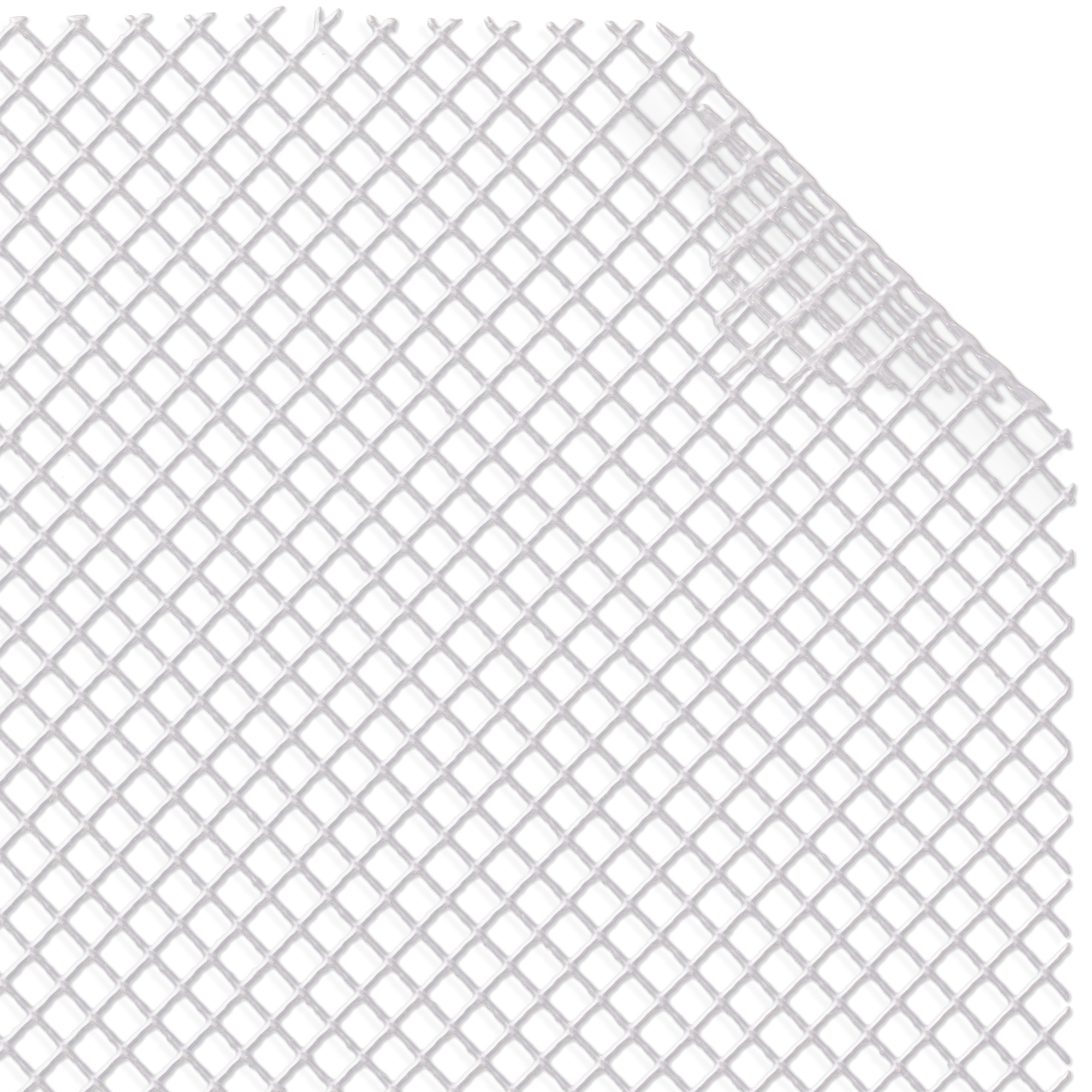

Economical, extruded polypropylene mesh used as a 'flow media' to assist the flow of resin across and throughout the laminate during the resin infusion process. The bi-planar extrusion ensures that a resin flow path is maintained even under full vacuum.

Typical Uses:

• Vacuum resin infusion flow media of less complex mold shapes
• Debulking prepregs (without release film)

As an extruded mesh, FM100 offers a degree of conformability but is better suited to flatter, less complex mold shapes. For more complex mold shapes we would recommend our FM105 Knitted Infusion Mesh.

FM100 can be stacked in multiple layers to provided faster flow rates in selected areas or for layer scale infusions.

Like most other elements of the vacuum bagging or resin infusion 'stack' infusion mesh cannot be reused once resin has flowed through it and therefore should be considered a disposable consumable of the process.

How To Buy

This mesh is available to buy in a folded 5lm (5.5lyd) pack, by the linear meter (10lm/11lyd minimum order) or in wholesale 100lm (110lyd) rolls. Please choose how you would like to purchase from the drop-down list above.

The mesh itself is 1.05m (42") wide meaning that each linear meter is equal to 1.05sqm.

We believe we offer unbeatable prices on vacuum bagging consumables. To make comparisons easy, select the different pack/roll sizes from the drop down menu above

Further Information

FM100 Infusion Mesh would most commonly be used for vacuum resin infusion of less complex shaped small to medium sized moldings including vehicle panels and small boat hulls.

For this type of resin infusion, peel ply would be positioned directly onto the laminate, followed by the FM100 Infusion Mesh, followed by the other infusion consumables (connectors, infusion spiral) and then enclosed within the vacuum bag.

• Resin Infusion
• [ -- Dry Reinforcement -- ]
• Peel Ply
• FM100 Infusion Mesh
• Vacuum Bagging Film
