Downloads (2)

Safety Datasheet (SDS) - EN415 KB
Technical Datasheet (TDS)196 KB

Specification

Weight and Dimensions
Width1500mm
Film Thickness28μm
Product Data
ColourBlue
TypeRelease Film
FormatFlat Film
Chemistry / MaterialPolyolefines and HDPE
Mechanical Properties
Max Service Temp120°C
Features
FeaturesPerforationYes
General Properties
Gross Weight0.482kg

Shipping Information

Non Hazardous

This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.

Package Size

There are no package size restrictions or surcharges for this product.

Delivery Cost

To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.

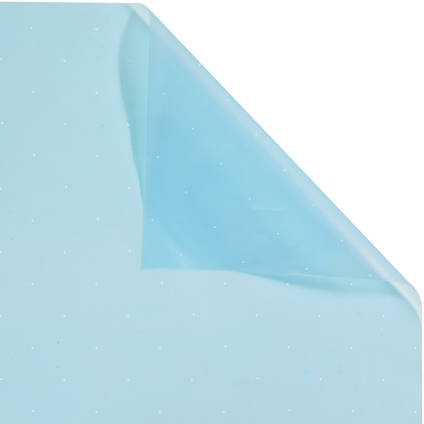

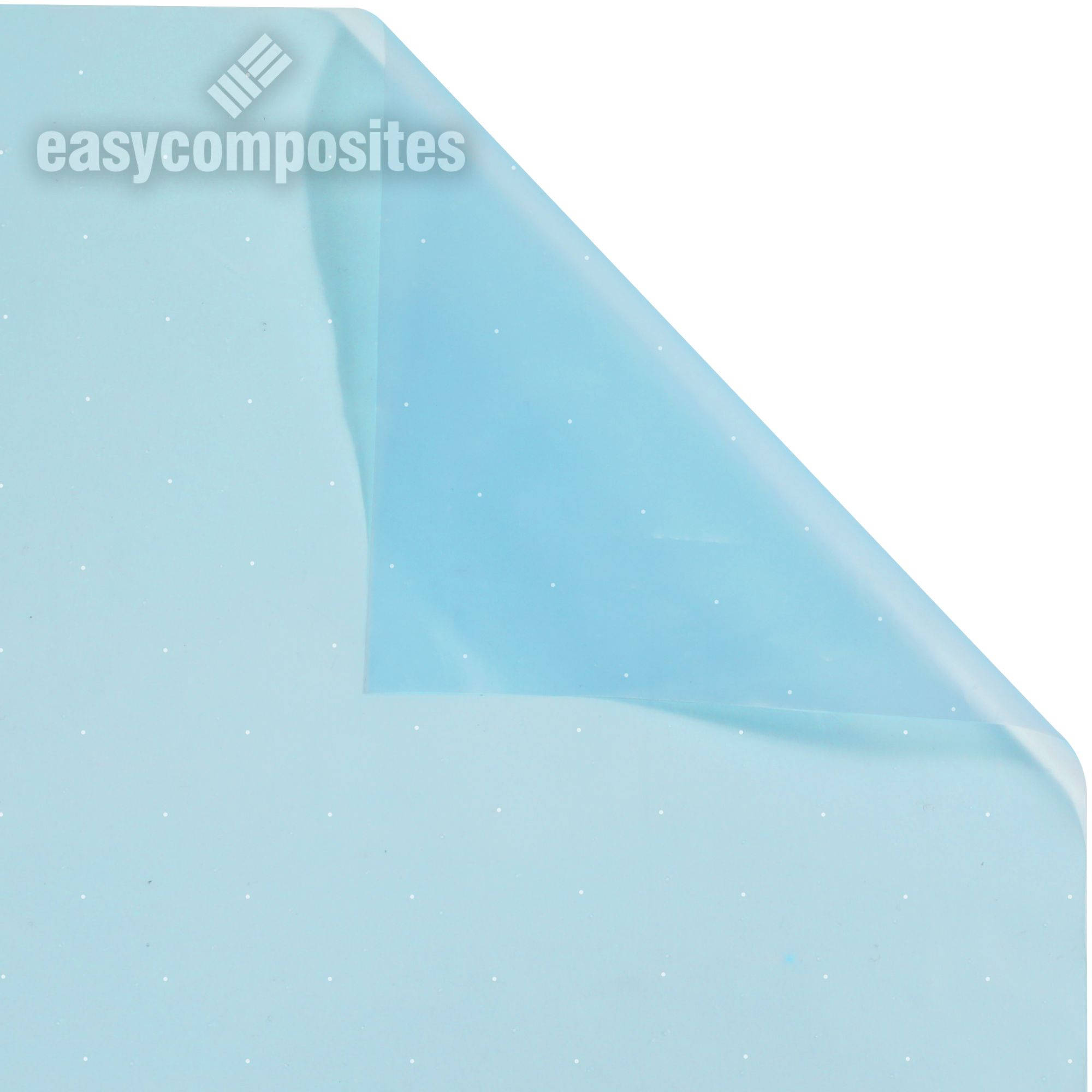

R120 P3 Perforated Release Film 1500mm (59")

R120 is a very cost-effective, general purpose release film with P3 perforations suitable for use at temperatures up to 120°C (248°F). It is recommended when vacuum bagging hand-layup laminates.

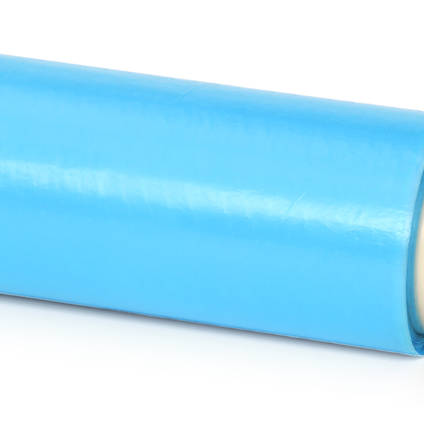

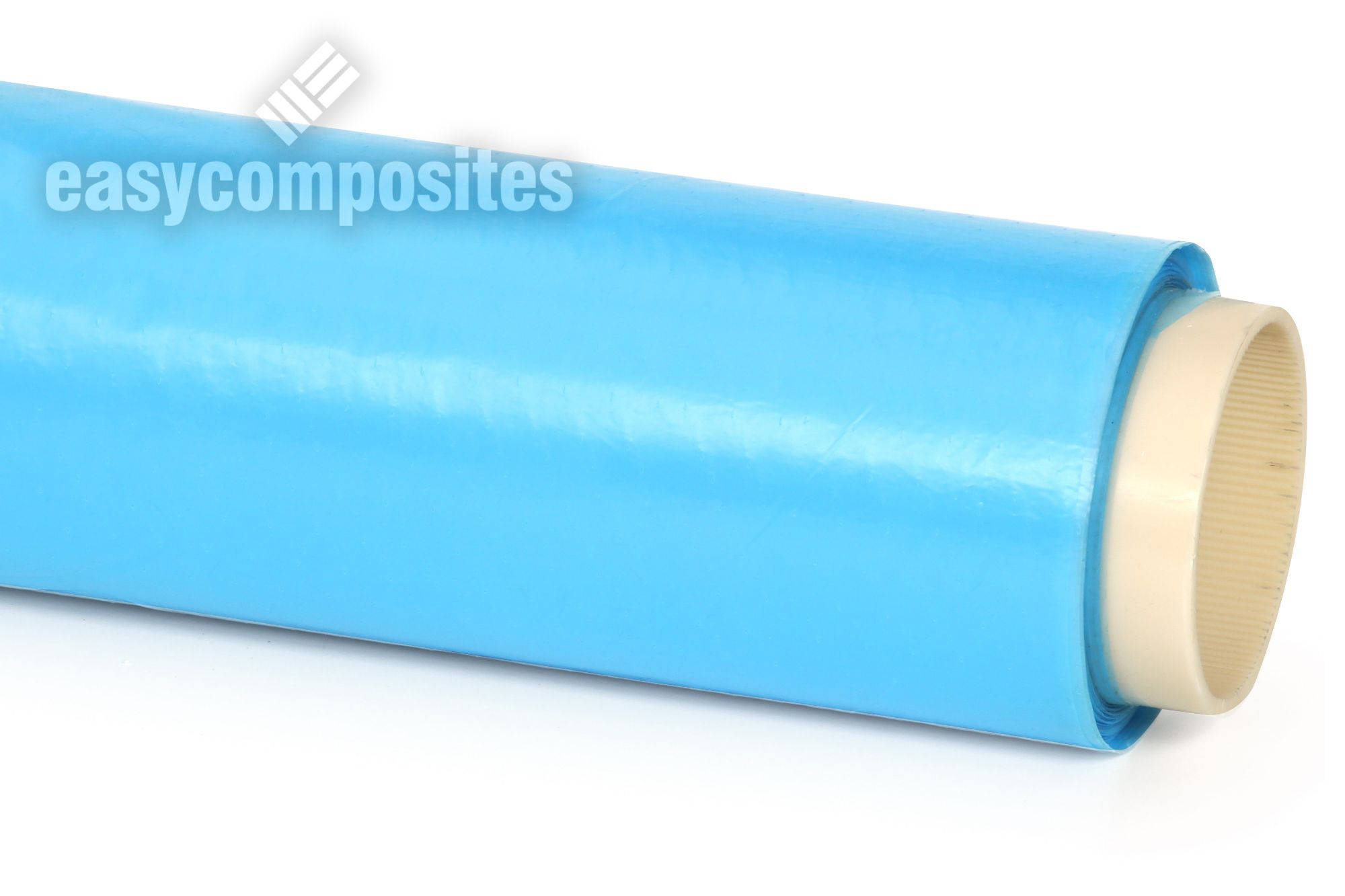

1.5m (59") wide, flat sheet format. Available to buy online in a 5lm (5.5lyd) folded pack, by the linear meter or in full 100lm (110lyd) rolls.


PRODUCT VERSIONS

Units of Sale
AVAILABILITY:More than 10 availablefor immediate shipping

PRICE
$18.50
($2.06 /yd²)
More than 10 availablefor immediate shipping
QTY
PACKS
PACKS
We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

AeroFilm® R120-P3 is a general purpose composite release film P3 perforated suitable for use at temperatures up to 120°C (248°F).

R120-P3 is our recommended release film when vacuum bagging hand-layup laminates. The film offers excellent release from a wide range of resin systems including epoxy, polyester and vinylester. Its P3 perforations provide the ideal restriction to resin flow between the wet laminate and the breather/soaker layer, allowing surplus resin to be drawn out of the laminate without excessive bleed-off of the resin.

Typical Uses

Commonly used for and recommended for:

  • Vacuum bagging wet layup laminates
  • Debulking prepregs

R120-P3 is equally suited to debulking prepreg laminates where it will prevent the breather layer from sticking to the uncured prepreg and then easily release from the laminate after debulking.

How to Buy

This release film is available to buy in a folded 5lm (5.5lyd) pack, by the linear meter (10lm/11lyd minimum order) or in wholesale rolls of 250lm/275lyd (375sqm). Please choose how you would like to purchase from the drop-down list above.

The film itself is 1.50m (59") wide in a single sheet meaning that each linear meter is equal to 1.5sqm.

Volume Pricing

We believe we offer unbeatable prices on vacuum bagging consumables. To make comparisons easy, select the different pack/roll sizes from the drop down menu above::

Further Information

Most commonly used when vacuum bagging a wet layup laminate, peel ply would be placed against the wet laminate, followed by the R120-P3 Perforated Release Film, followed by a breather/soaker layer (so absorb excess resin squeezed from the laminate), enclosed within vacuum bagging film.

AeroFilm® R120-P3 is a general purpose composite release film P3 perforated suitable for use at temperatures up to 120°C (248°F).

R120-P3 is our recommended release film when vacuum bagging hand-layup laminates. The film offers excellent release from a wide range of resin systems including epoxy, polyester and vinylester. Its P3 perforations provide the ideal restriction to resin flow between the wet laminate and the breather/soaker layer, allowing surplus resin to be drawn out of the laminate without excessive bleed-off of the resin.

Typical Uses

Commonly used for and recommended for:

  • Vacuum bagging wet layup laminates
  • Debulking prepregs

R120-P3 is equally suited to debulking prepreg laminates where it will prevent the breather layer from sticking to the uncured prepreg and then easily release from the laminate after debulking.

How to Buy

This release film is available to buy in a folded 5lm (5.5lyd) pack, by the linear meter (10lm/11lyd minimum order) or in wholesale rolls of 250lm/275lyd (375sqm). Please choose how you would like to purchase from the drop-down list above.

The film itself is 1.50m (59") wide in a single sheet meaning that each linear meter is equal to 1.5sqm.

Volume Pricing

We believe we offer unbeatable prices on vacuum bagging consumables. To make comparisons easy, select the different pack/roll sizes from the drop down menu above::

Further Information

Most commonly used when vacuum bagging a wet layup laminate, peel ply would be placed against the wet laminate, followed by the R120-P3 Perforated Release Film, followed by a breather/soaker layer (so absorb excess resin squeezed from the laminate), enclosed within vacuum bagging film.

Downloads (2)

Safety Datasheet (SDS) - EN415 KB
Technical Datasheet (TDS)196 KB

Specification

Weight and Dimensions
Width1500mm
Film Thickness28μm
Product Data
ColourBlue
TypeRelease Film
FormatFlat Film
Chemistry / MaterialPolyolefines and HDPE
Mechanical Properties
Max Service Temp120°C
Features
FeaturesPerforationYes
General Properties
Gross Weight0.482kg
Can’t find the answer you’re looking for?Ask our technical team a question.

P3 is a set spacing and hole size for the perforation pattern on the film. In this specific case, this refers to holes of 0.5mm diameter spaced 10mm apart across the whole sheet.

ASK YOUR OWN QUESTION

Note: Your name will be abbreviated and your email address will only be used to email you the answer directly

Note: Your name will be abbreviated and your email address will only be used to email you the answer directly

Customer Product Reviews for R120 P3 Perforated Release Film 1500mm (59")

No reviews

SUBMIT YOUR OWN PRODUCT REVIEW

We publish all reviews for verified purchases. Submit your own review and help other customers with their choices.Login to submit a product review

SUBMIT YOUR OWN PRODUCT REVIEW

We publish all reviews for verified purchases. Submit your own review and help other customers with their choices.Login to submit a product review

Shipping Information

Non Hazardous

This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.

Package Size

There are no package size restrictions or surcharges for this product.

Delivery Cost

To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.
