Specification
Weight and Dimensions
| Wall Thickness | 1 | mm |
|---|---|---|
| ID Tolerance (mm) | 0.25 | mm |
| OD Tolerance (mm) | 0.25 | mm |
| Length | 1000 | mm |
| Width | 6 | mm |
| Height | 6 | mm |
Product Data
| Colour | Black | |
|---|---|---|
| Construction | Pultrusion | |
| Appearance | UD (Matt) | |
| Resin Matrix | Epoxy |
Fabric Specification
| Fibre Orientation | Unidirectional |
|---|
Mechanical Properties
| Tensile Strength (Lengthways) | 400 - 500 | MPa |
|---|---|---|
| Tensile Modulus (lengthways) | 28-40 | GPa |
| Tg Onset (DMA) | 80 | °C |
General Properties
| Gross Weight | 0.0278 | kg |
|---|
Shipping Information
Non Hazardous
This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.
Package Size
There are no package size restrictions or surcharges for this product.
Delivery Cost
To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.

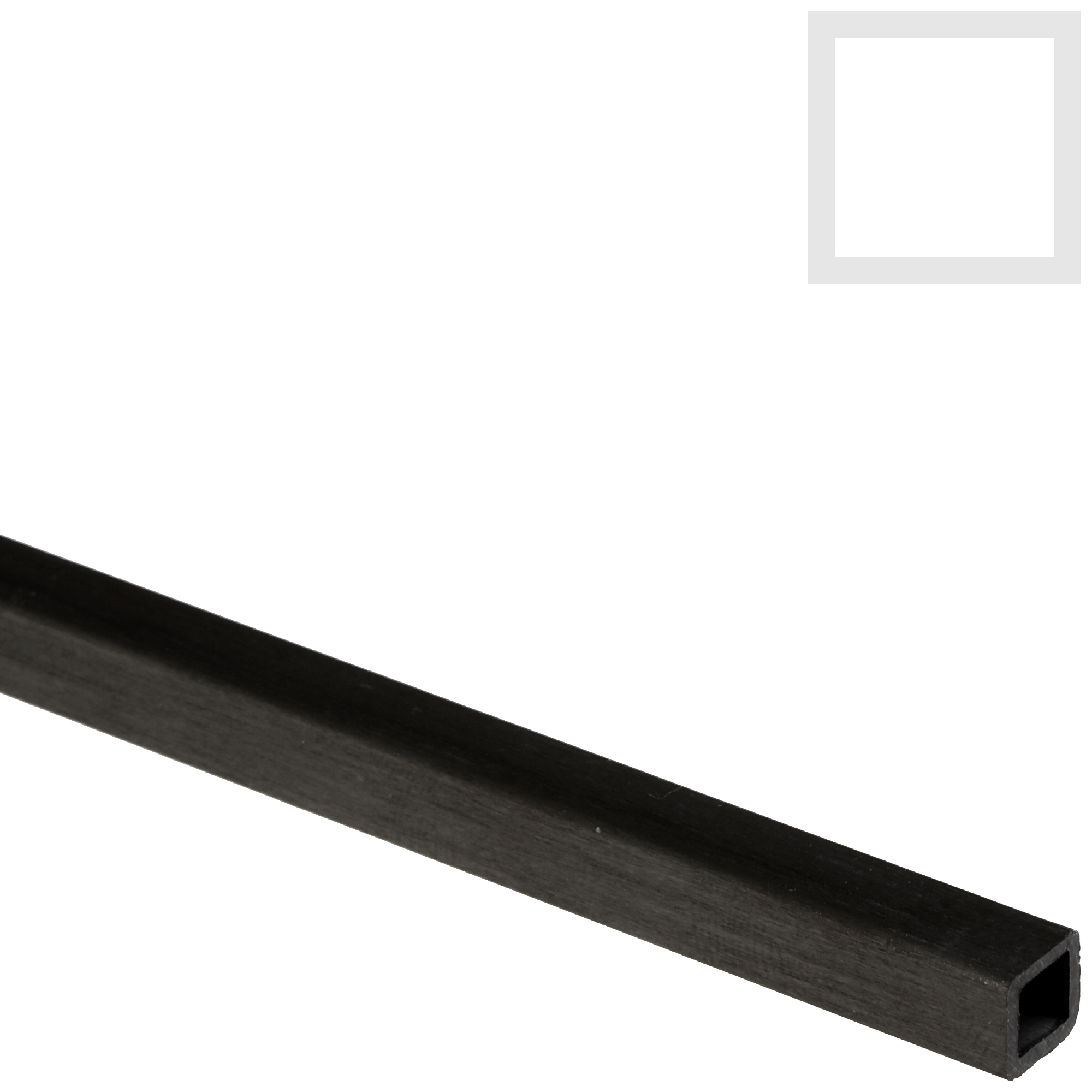

6mm/4mm (0.236"/0.157") Carbon Fiber Square Box Section 1000mm (39")
- CFBOX-6-4
- No reviews
Pultruded carbon fiber box section manufactured using high strength carbon fiber and an epoxy resin matrix for maximum performance. This small, square section profile measures 6mm (0.236") outside, 4mm (0.157") inside, leaving a 1mm (0.039") wall thickness best suited to relatively lightweight applications such as R/C modelling, UAVs, automation and more.
Being a pultrusion, 100% of the fibers run length-ways down the length of the profile, providing maximum stiffness in this direction.
Sold in a 1m (39") length.
Trade discounts
| 0-4 | 5-19 | 20+ |
|---|---|---|
| $7.55 | $6.65 | $5.65 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
Pultruded 6mm (1/4") carbon fiber box section manufactured from 100% unidirectional carbon fiber.
The box section has an outer width of 6mm (1/4") and a wall thickness of 1mm (0.04") leaving an inner width of 4mm (0.16").
Our micro pultruded 6mm (1/4") carbon fiber square tubes are only available in 1m (39") lengths.
Typical Uses
This tiny 0.75mm (0.03") wall thickness box section is recommended for use in UAVs, quad copters/quad rotors, robotics and automation.
Further Information
Pultrusion Explained
Pultrusion is a method of manufacturing continuous lengths of fiber reinforced section (in this case box section) by pulling continuous strands of carbon fiber through resin and a former before curing the resin all in one process.
Pultruded sections feature 100% longitudinal fiber orientation which gives them excellent strength along their length but does make them vulnerable to crushing forces. Care should be taken when employing pultruded section to ensure that the fixing points which transfer the load to the section do so in such a way as to minimise any crush forces and distribute the load as much as possible.
Trade discounts
| 0-4 | 5-19 | 20+ |
|---|---|---|
| $7.55 | $6.65 | $5.65 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
Pultruded 6mm (1/4") carbon fiber box section manufactured from 100% unidirectional carbon fiber.
The box section has an outer width of 6mm (1/4") and a wall thickness of 1mm (0.04") leaving an inner width of 4mm (0.16").
Our micro pultruded 6mm (1/4") carbon fiber square tubes are only available in 1m (39") lengths.
Typical Uses
This tiny 0.75mm (0.03") wall thickness box section is recommended for use in UAVs, quad copters/quad rotors, robotics and automation.
Further Information
Pultrusion Explained
Pultrusion is a method of manufacturing continuous lengths of fiber reinforced section (in this case box section) by pulling continuous strands of carbon fiber through resin and a former before curing the resin all in one process.
Pultruded sections feature 100% longitudinal fiber orientation which gives them excellent strength along their length but does make them vulnerable to crushing forces. Care should be taken when employing pultruded section to ensure that the fixing points which transfer the load to the section do so in such a way as to minimise any crush forces and distribute the load as much as possible.
Specification
Weight and Dimensions
| Wall Thickness | 1 | mm |
|---|---|---|
| ID Tolerance (mm) | 0.25 | mm |
| OD Tolerance (mm) | 0.25 | mm |
| Length | 1000 | mm |
| Width | 6 | mm |
| Height | 6 | mm |
Product Data
| Colour | Black | |
|---|---|---|
| Construction | Pultrusion | |
| Appearance | UD (Matt) | |
| Resin Matrix | Epoxy |
Fabric Specification
| Fibre Orientation | Unidirectional |
|---|
Mechanical Properties
| Tensile Strength (Lengthways) | 400 - 500 | MPa |
|---|---|---|
| Tensile Modulus (lengthways) | 28-40 | GPa |
| Tg Onset (DMA) | 80 | °C |
General Properties
| Gross Weight | 0.0278 | kg |
|---|
Many people prefer the natural finish of these carbon products, however if you wish to paint them for your specific application then you can do so. A light key with a fine abrasive paper like a 1200 grit wet and dry paper and a thorough degrease and clean using mild detergent or an alcohol wipe should be all that is needed to prepare the surface for paint.
The Box Section surface finish is the natural finish achieved during the pultrusion process which is smooth and has a low level of sheen. The Box Section does not, at this time, come in any other finish.
This box section weighs 28g per meter length.
The 6mm box section has a measured diagonal of 7.6mm.
