450gsm (1.47oz/ft2) Emulsion Bound Chopped Strand Mat (CSM) 950mm (37")

Trade discounts

0-9	10-24	25+
$3.95	$3.60	$3.20

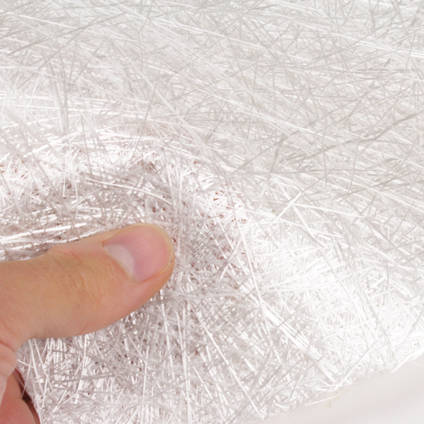

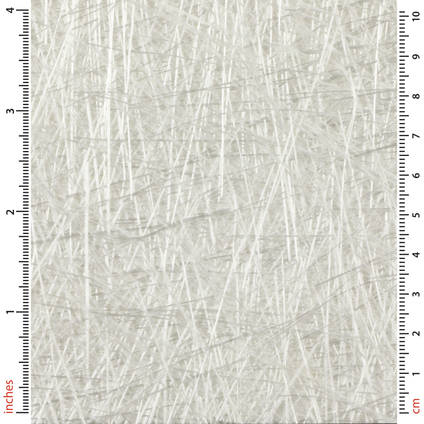

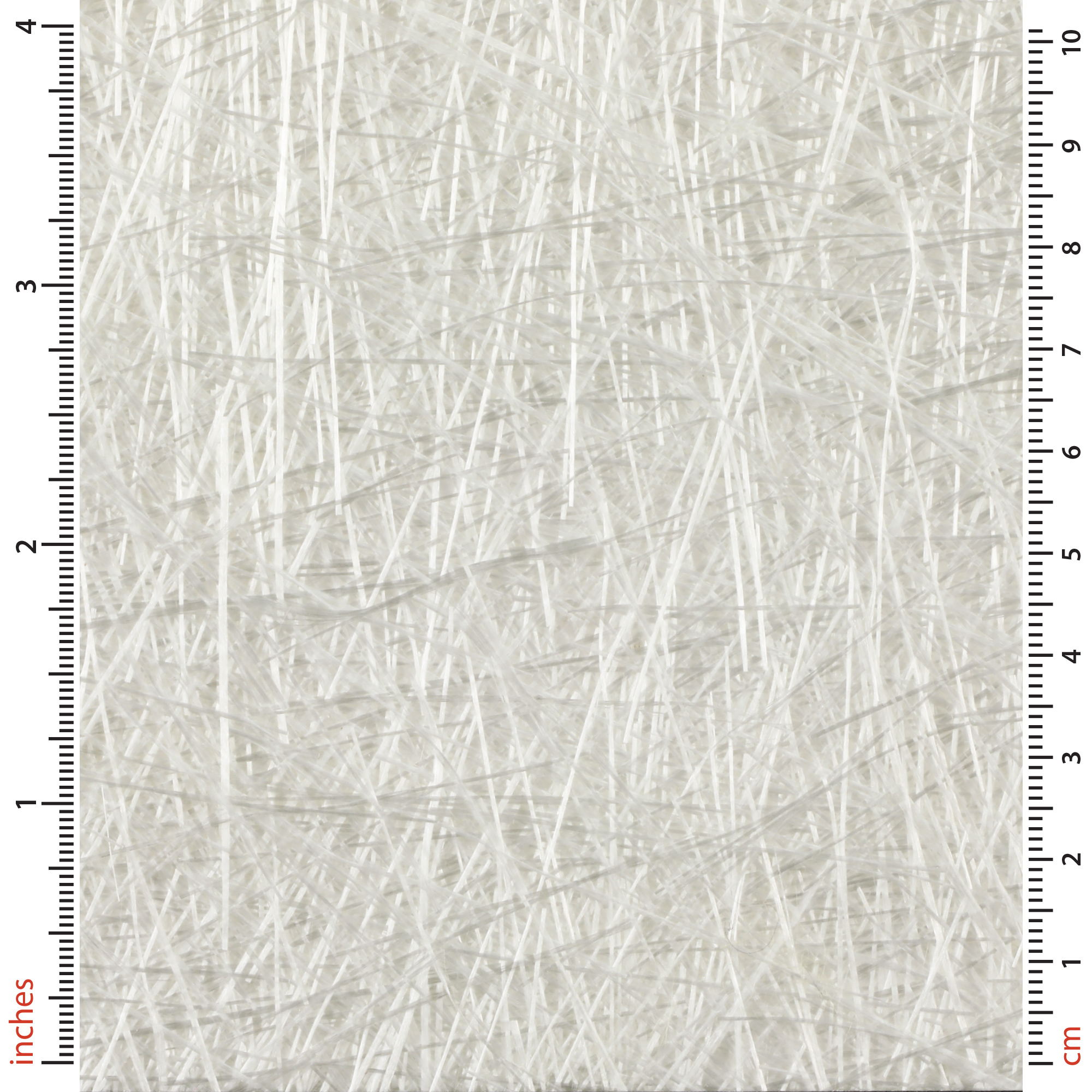

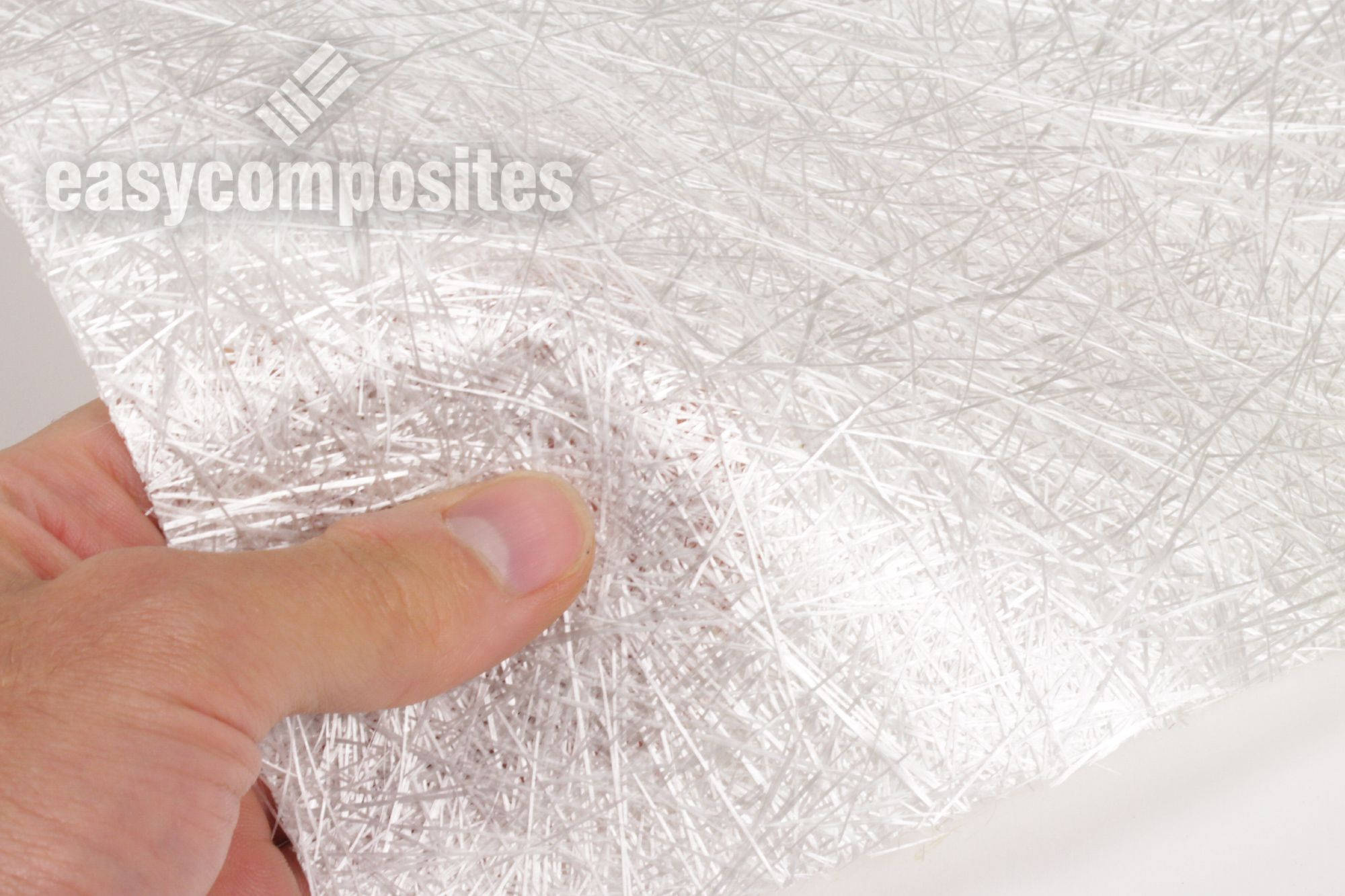

Chopped strand mat (CSM or fiberglass matting as it is often known) is the most widely used of all composite reinforcement materials.

Short strands of glass are randomly scattered and bound to create a mat which can then be wetted out with resin and used as a general purpose reinforcement for traditional fiberglass (GRP/FRP) molds or parts.

Due to its comparatively low performance compared with alternative reinforcements (woven glass fabric, carbon fiber, Kevlar etc.) chopped strand mat is certainly not at forefront of advanced composites but there are still applications where it is used in parts and it is still used extensively in the production of patterns and molds for more advanced composites.

Typical Uses

Our 450gsm (1.47oz/ft²) emulsion bound CSM is suitable for use with polyester and vinyl ester resin systems. For an epoxy compatible CSM please see our powder bound CSM.

Polyester and vinylester compatible
Suitable for mold making and laminating
Suitable for use with our Uni-Mold universal mold making system

How to Buy

This emulsion bound 450gsm (1.47oz/ft²) chopped strand mat roll is 950mm (37") wide and the mat is sold by the linear meter (1.1 yards). The unit price shown is for 1 linear meter (1.1 yards) but volume discounts automatically apply for larger quantities of mat.

Please purchase the number of linear meters you require. When purchasing multiple meters, for shorter lengths, the fabric will be supplied folded to keep package size and hence shipping costs down. If you need your fabric on a roll for a specific application then please contact us and we will be more than happy to supply it that way. For larger lengths, the fabric may be supplied in two or more pieces.

A minimum order quantity of 3m (3.3 yards) applies to this product.

Further Information

Emulsion Bound CSM

This 'emulsion bound' CSM is designed for use with polyester resin or vinylester resin which will quickly break down the emulsion binder so that the mat can easily be laminated by brush or roller to follow the contours of the mold.

450gsm (1.47oz/ft²) CSM is the recommended reinforcement for our Uni-Mold universal mold making system.

Emulsion bound CSM is not suitable for use with epoxy resin because the emulsion binder will not be broken down by epoxy, making the mat almost impossible to laminate with.

Downloads (1)

	Safety Datasheet (SDS) - EN	340 KB

Specification

Weight and Dimensions

Areal Weight	450	g/m²
Width	950	mm
Thickness	0.7	mm
Consolidated Thickness	0.7	mm

Product Data

Colour	White
Format	Chopped Strand Matt
Fibre Type	Glass Fibre
Stabilisation	Emulsion Bond

Compatible With

Compatible With	Polyester	Yes
Compatible With	Vinylester	Yes

Fabric Specification

Fibre Specifics	E-Glass
Weave	Chopped Strand Matt

General Properties

Gross Weight	0.45	kg

Can’t find the answer you’re looking for?Ask our technical team a question.

Sorry but we only stock chopped strand mat at the most common 1m width. Remember that with chopped strand mat (CSM) continuity is not important because the mat is already made up of relatively short strands of glass, for this reason, most people will work with a 1mm wide roll and just join the mat together to make the total area they need.

ASK YOUR OWN QUESTION

Shipping Information

Non Hazardous

This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.

Package Size

When packaged, this product is over 1m in length. A small 'additional handling' charge will be included in the shipping cost.

Delivery Cost

To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.
