298 KBSpecification
Product Data
| Density | 1.37 | g/cm³ |
|---|
Weight and Dimensions
| Thickness | 6.0 | mm |
|---|---|---|
| Consolidated Thickness | 1.9 | mm |
General Properties
| Gross Weight | 0.3 | kg |
|---|
Shipping Information
Non Hazardous
This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.
Package Size
When packaged, this product is over 1m in length. A small 'additional handling' charge will be included in the shipping cost.
Delivery Cost
To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.
300g (8.8oz) Carbon Fiber Non-Woven Mat 1000mm (39")
- CF-NWM-300-100
- No reviews
Trade discounts
| 0-4 | 5-9 | 10-49 | 50+ |
|---|---|---|---|
| $23.20 | $21.85 | $20.45 | $19.10 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

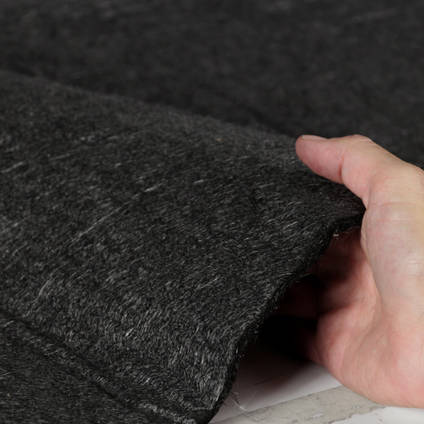

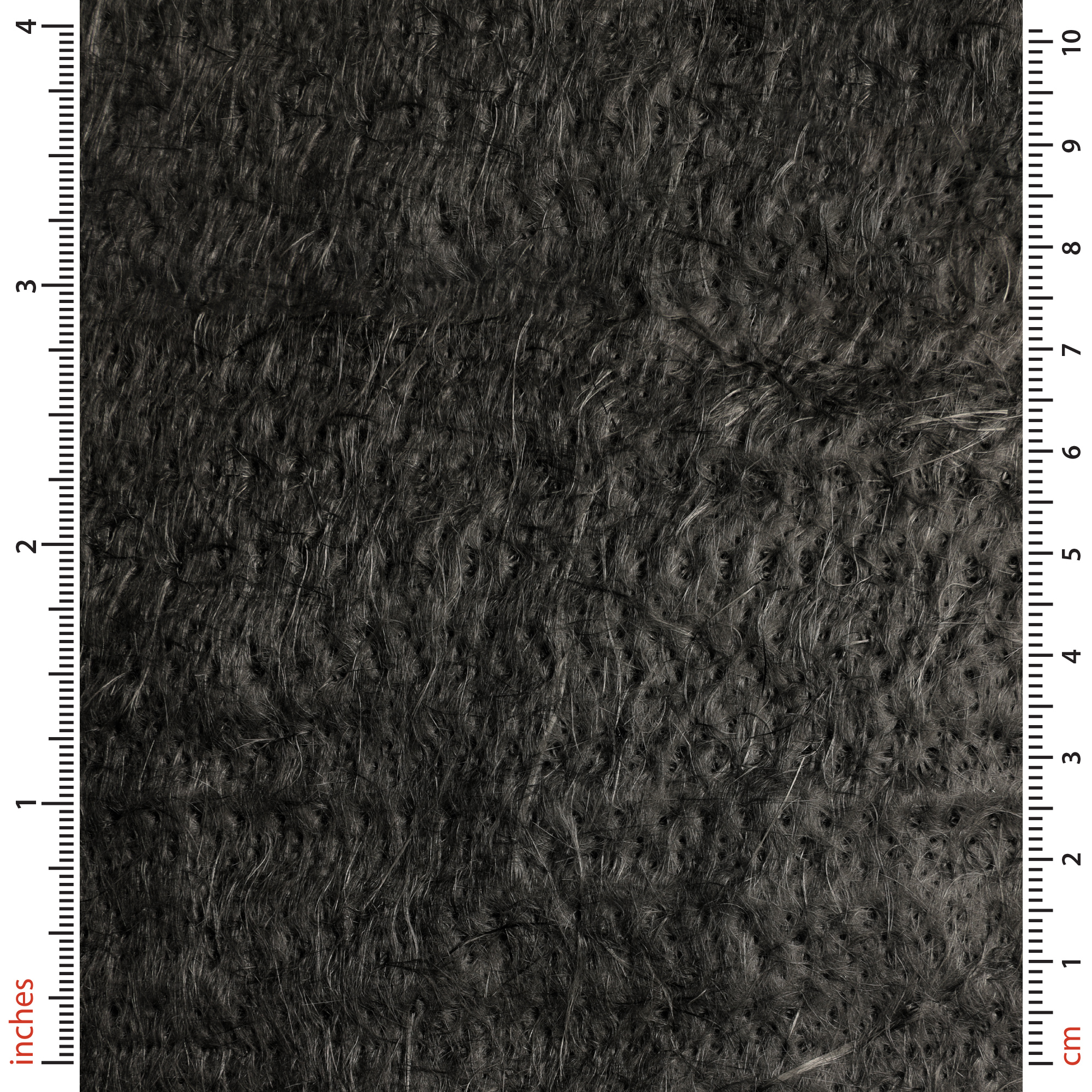

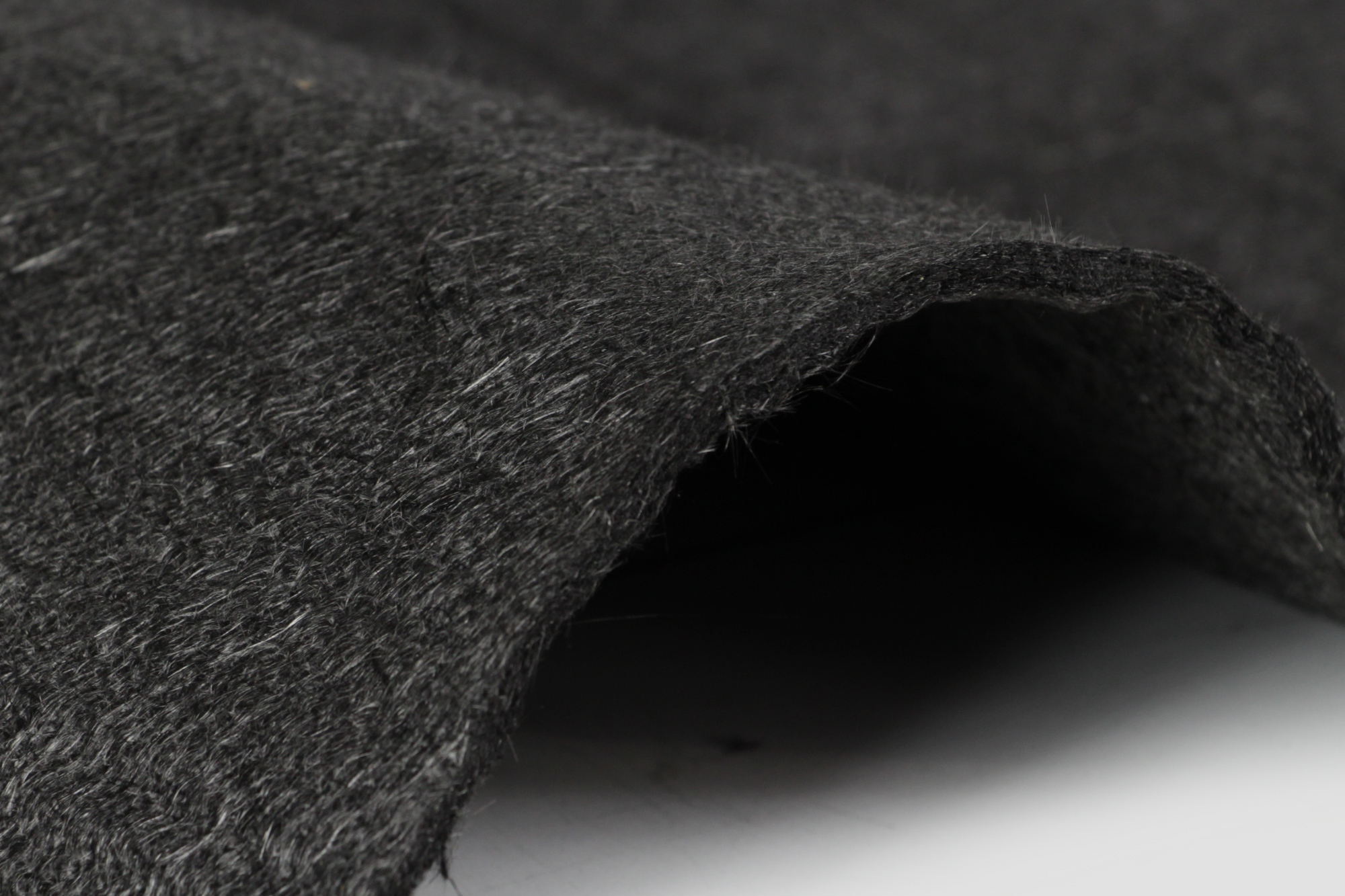

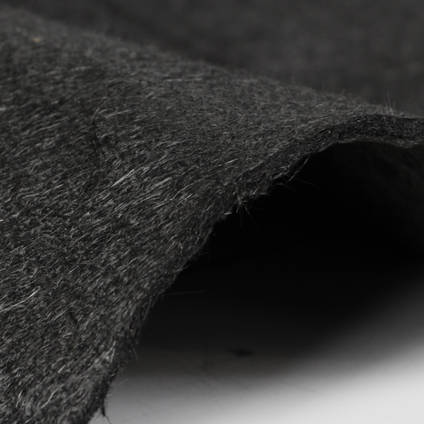

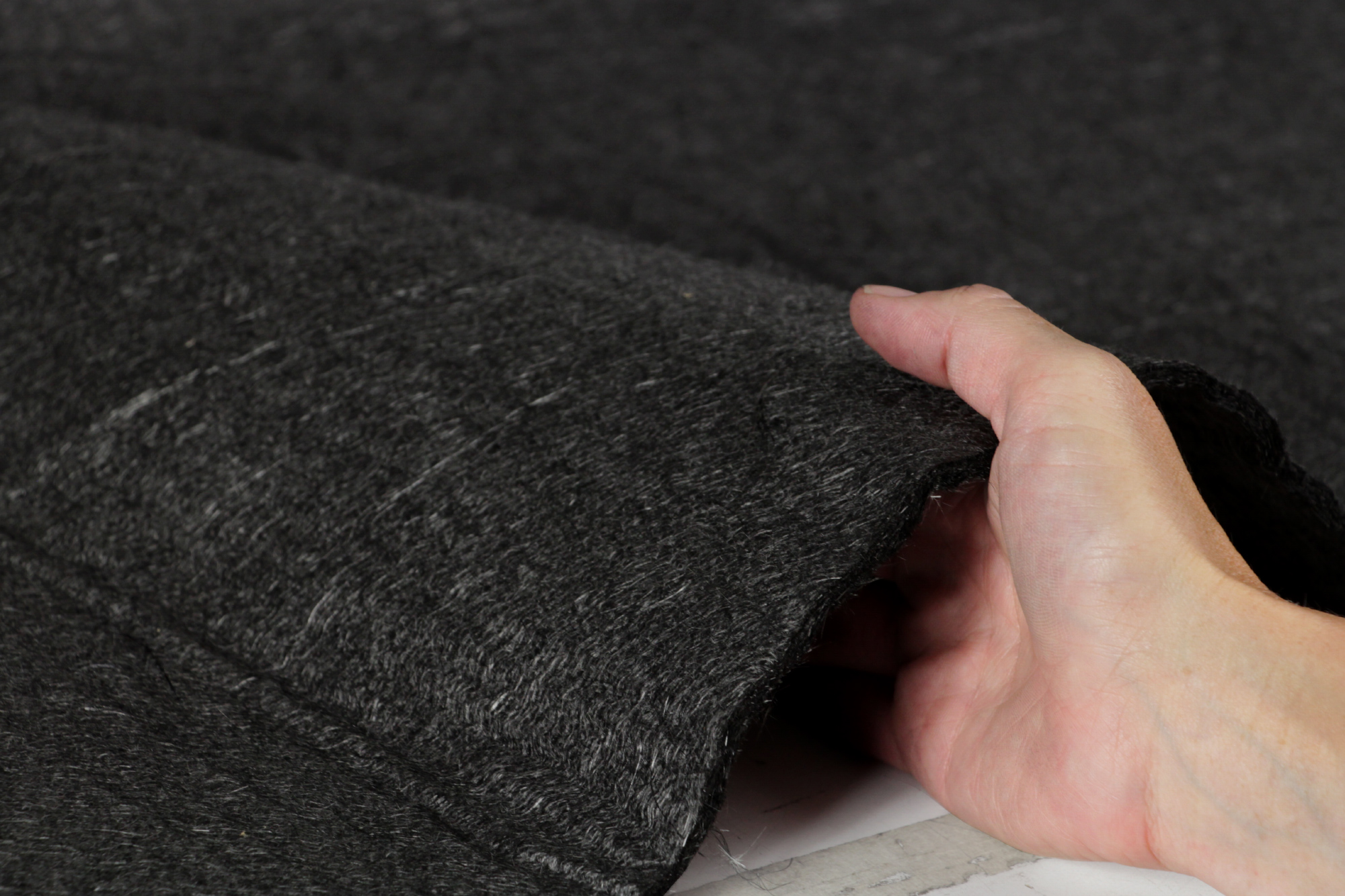

This 300gsm (8.8oz/yd²) non-woven mat is made from 100% recycled carbon fibers offering excellent environmental and cost saving advantages and can be used in both component and mold making applications.

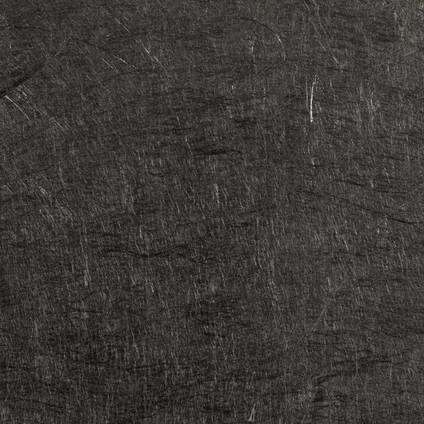

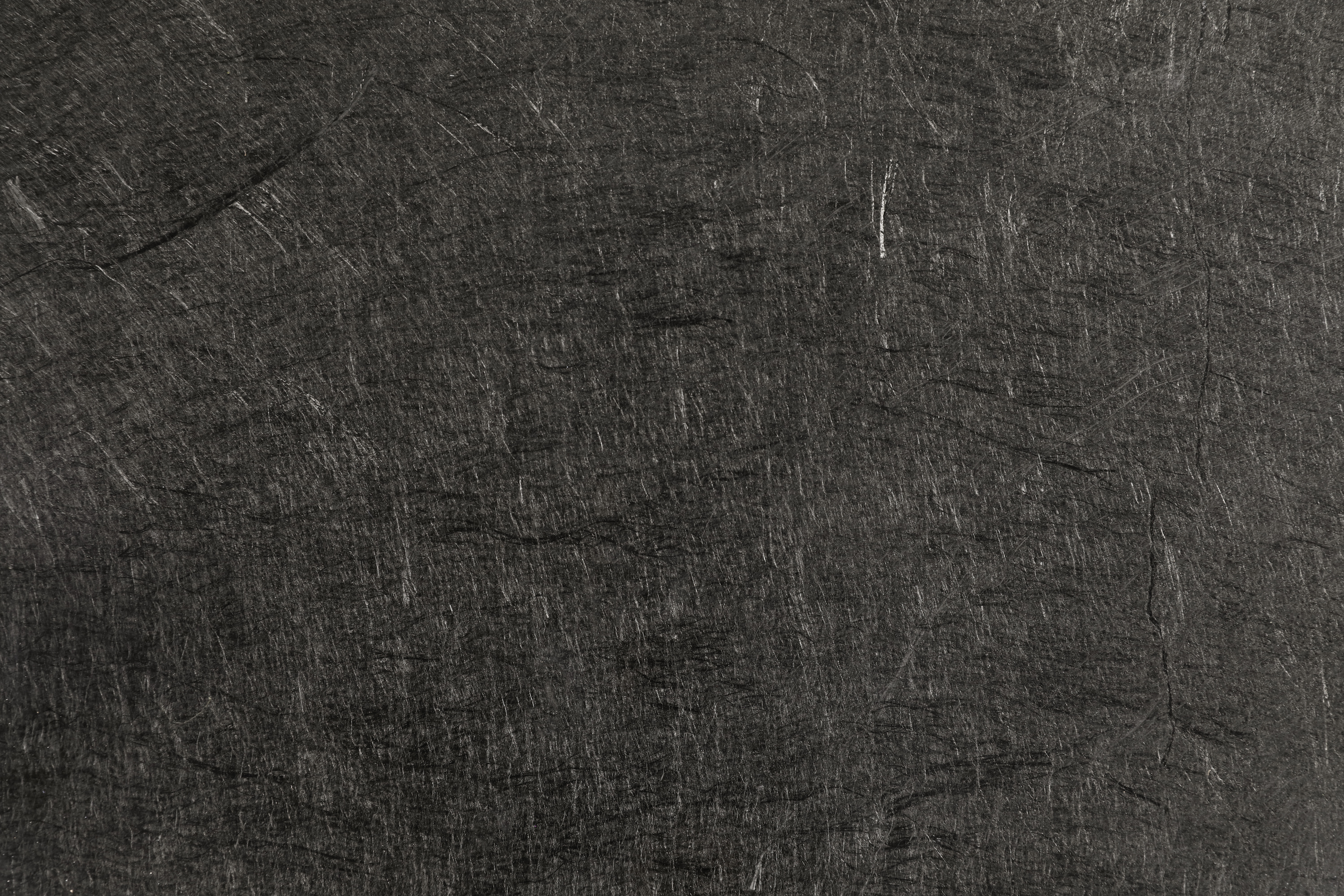

When used in cosmetic parts the finish is similar to that of a typical ‘forged’ carbon look only with finer fibers and a much more subtle appearance.
This mat is 300gsm (8.8oz) we also have a 100gsm (2.65oz) available, listed separately
How to Buy
This mat is 1m (39") wide and the fabric is Sold by the linear meter (1 meter = 1.09 yards). The unit price shown is for 1 linear meter but volume discounts automatically apply for larger quantities of mat.
Please purchase the number of linear meters you require. When purchasing multiple meters the fabric will be supplied in one continuous length on a roll.
Further Information
Processing
Non-woven mats can be used with most composite processes and resin systems, most commonly hand layup and resin infusion using epoxy, vinylester or polyester resin systems, the mat binding readily breaks down with resin and can be easily conformed to complex, compound forms. Resin to fiber fractions will typically be 70:30 and 50:50 for hand layup and resin infusion respectively.
Trade discounts
| 0-4 | 5-9 | 10-49 | 50+ |
|---|---|---|---|
| $23.20 | $21.85 | $20.45 | $19.10 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
This 300gsm (8.8oz/yd²) non-woven mat is made from 100% recycled carbon fibers offering excellent environmental and cost saving advantages and can be used in both component and mold making applications.
When used in cosmetic parts the finish is similar to that of a typical ‘forged’ carbon look only with finer fibers and a much more subtle appearance.
This mat is 300gsm (8.8oz) we also have a 100gsm (2.65oz) available, listed separately
How to Buy
This mat is 1m (39") wide and the fabric is Sold by the linear meter (1 meter = 1.09 yards). The unit price shown is for 1 linear meter but volume discounts automatically apply for larger quantities of mat.
Please purchase the number of linear meters you require. When purchasing multiple meters the fabric will be supplied in one continuous length on a roll.
Further Information
Processing
Non-woven mats can be used with most composite processes and resin systems, most commonly hand layup and resin infusion using epoxy, vinylester or polyester resin systems, the mat binding readily breaks down with resin and can be easily conformed to complex, compound forms. Resin to fiber fractions will typically be 70:30 and 50:50 for hand layup and resin infusion respectively.
Specification
Product Data
| Density | 1.37 | g/cm³ |
|---|
Weight and Dimensions
| Thickness | 6.0 | mm |
|---|---|---|
| Consolidated Thickness | 1.9 | mm |
General Properties
| Gross Weight | 0.3 | kg |
|---|
Being made up of randomly orientated different length fibres, it will be weaker than a traditionally woven cloth. So for critical structural or stiffness applications, you will need more material to get the same strength or stiffness. However the random orientation of the fibres does give the benefit of a more balanced laminate.

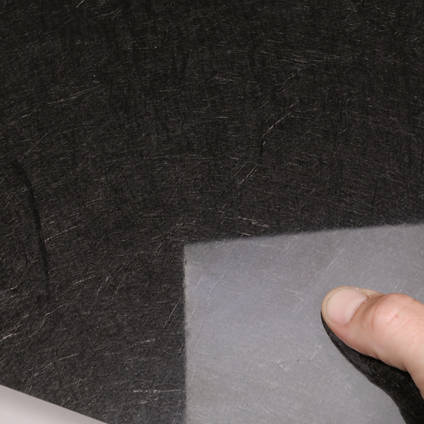

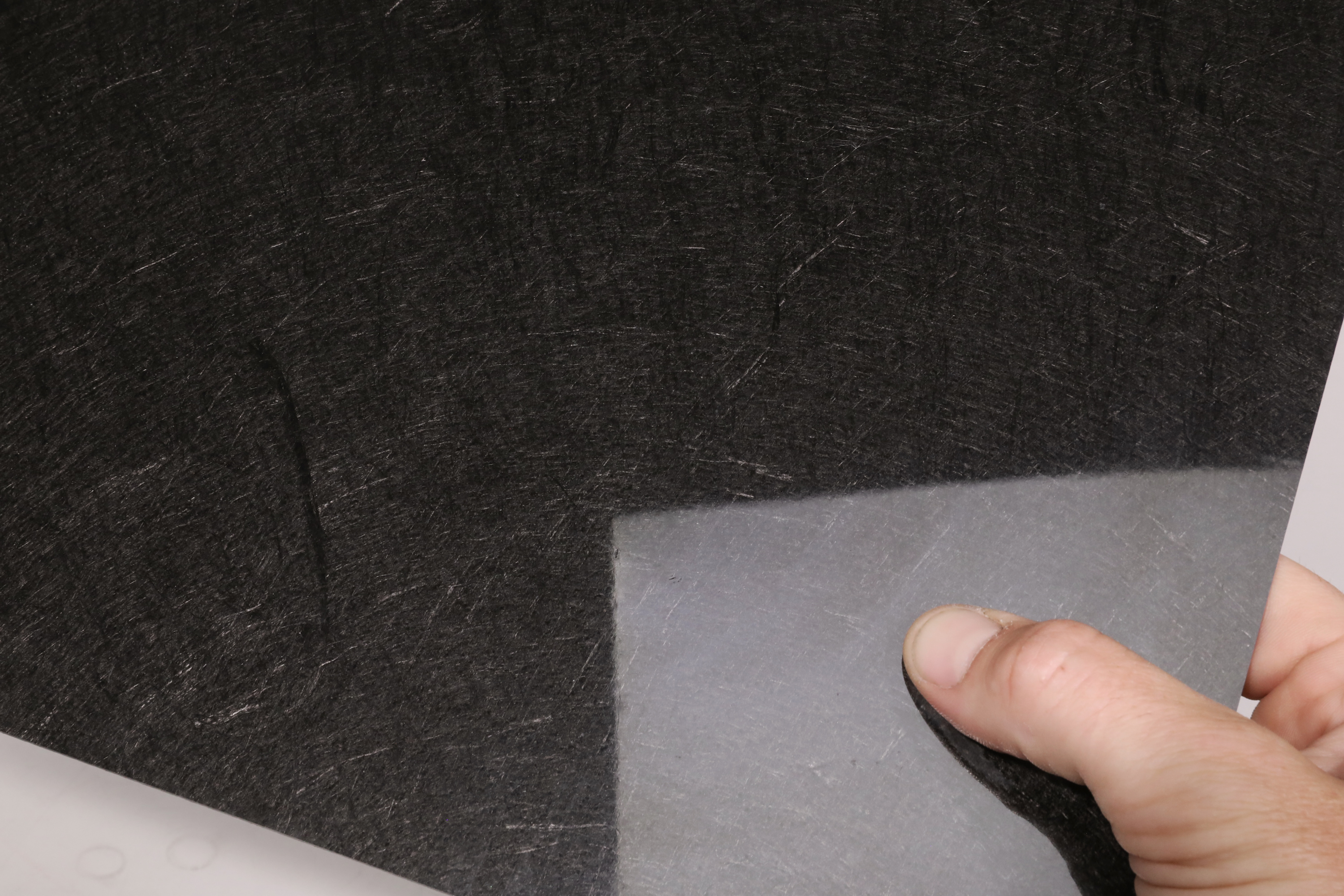

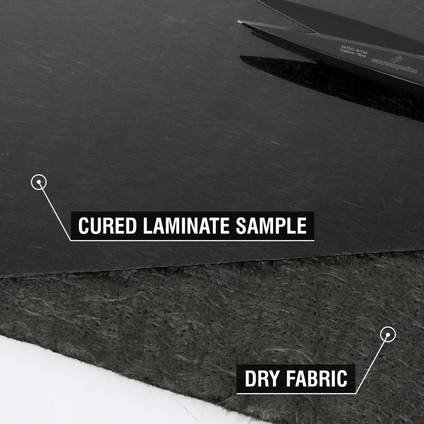

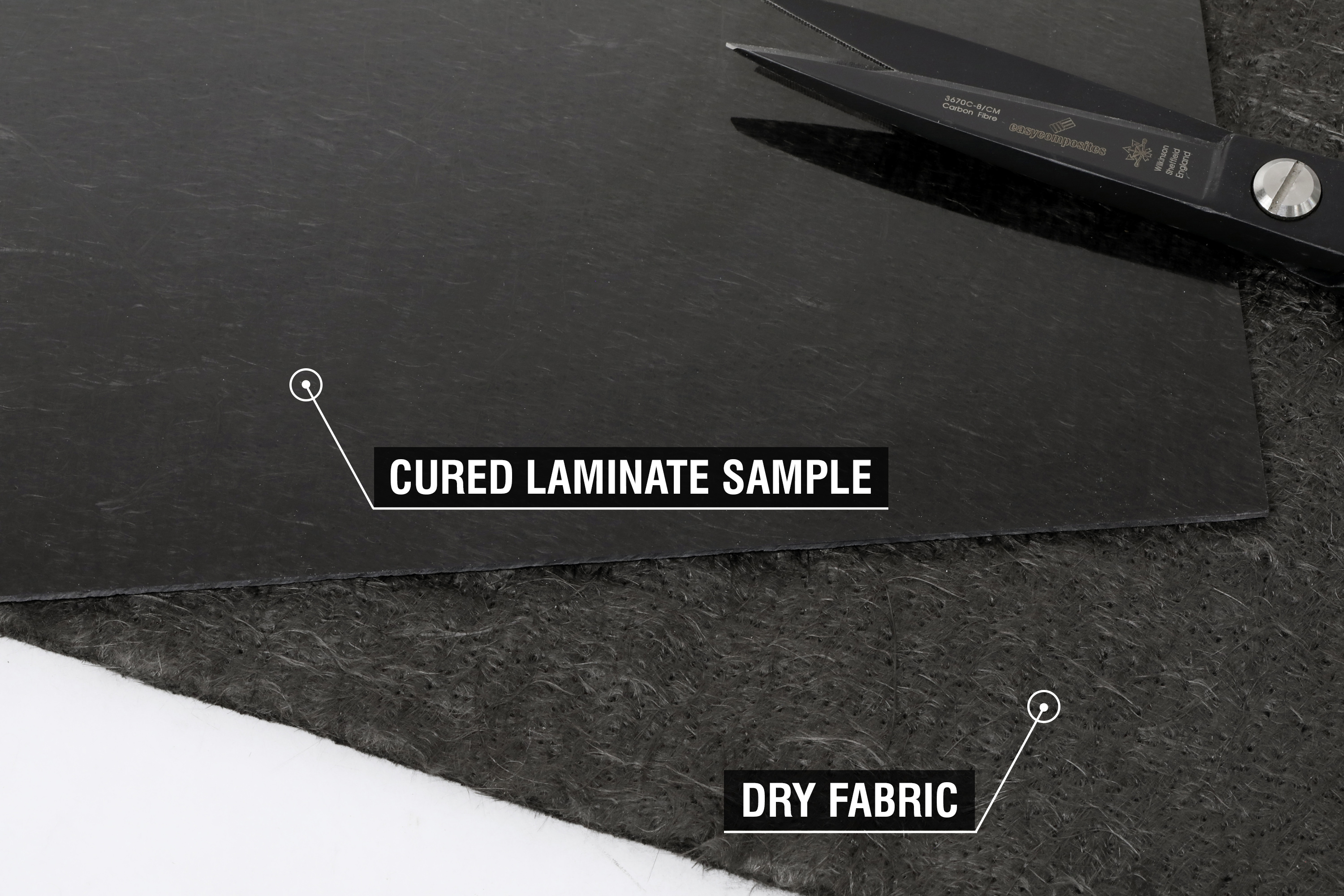

A single layer of the fabric ends up approximately 1.9mm thick when infused.
