Specification
Product Data
| Width | 15 | mm |
|---|---|---|
| Colour | Black | |
| Height | 15 | mm |
| Construction | Woven Laminate | |
| Appearance | 2x2 Twill (Glossy) | |
| Resin Matrix | Epoxy |
Fabric Specification
| Fibre Orientation | 0, 90 |
|---|
Mechanical Properties
| Tensile Strength (Lengthways) | 645 | MPa |
|---|---|---|
| Tensile Modulus (lengthways) | 55.2 | GPa |
| Tg Onset (DMA) | 140 | °C |
General Properties
| Gross Weight | 0.046 | kg |
|---|
Shipping Information
Non Hazardous
This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.
Package Size
When packaged, this product is over 1m in length. A small 'additional handling' charge will be included in the shipping cost.
Delivery Cost
To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.

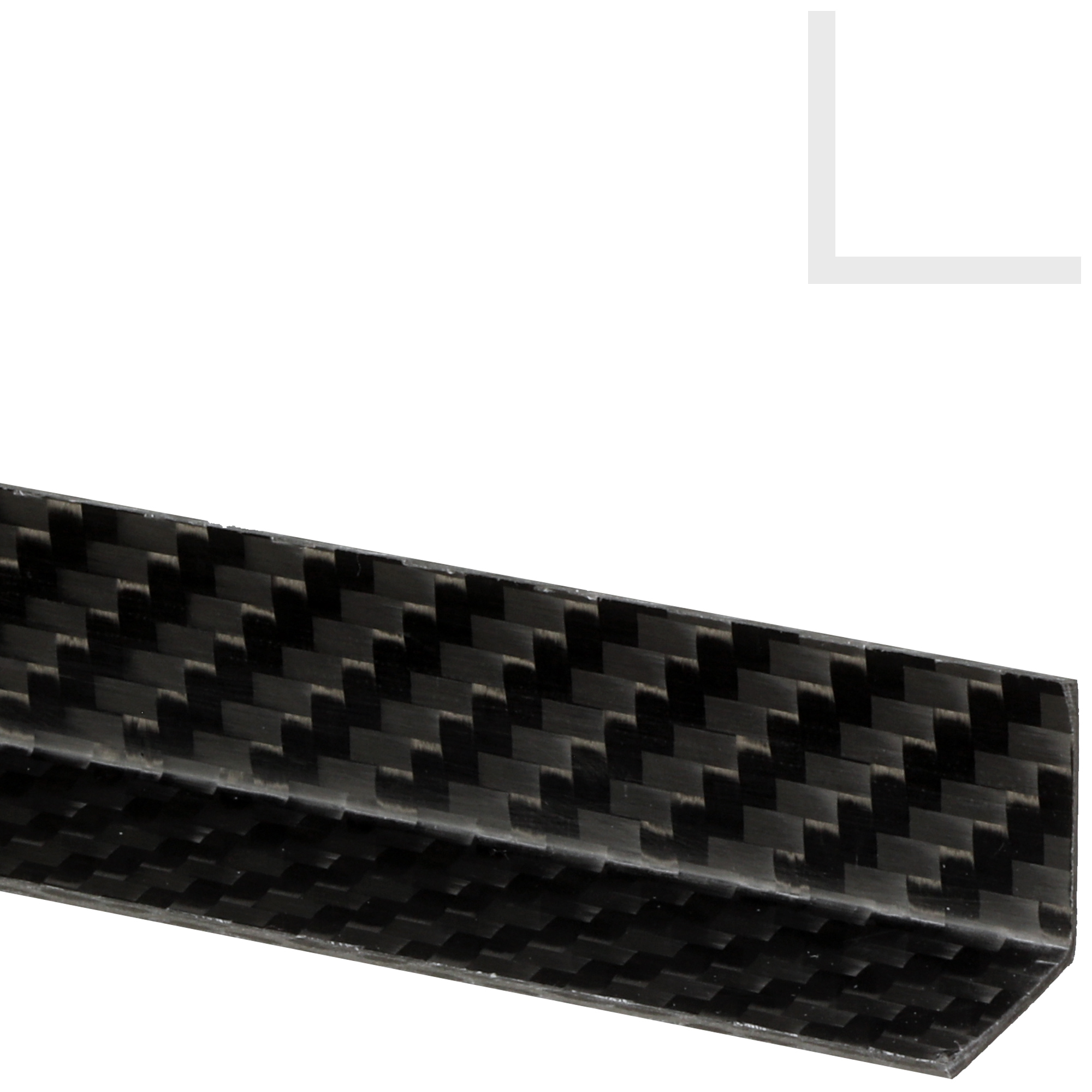

15 x 15mm (0.591 x 0.591") Carbon Fiber Angle
- CFANG-15-1-1
- No reviews
Manufactured by Easy Composites, these 90° carbon fiber angle sections represent the highest quality carbon fiber angles available. Laminated using multiple layers of woven prepreg carbon fiber and autoclave cured for the highest performance, our carbon fiber angles feature a smooth, flat finish inside and out making them suitable for both structural and cosmetic applications including as brackets in lightweight engineering, enclosures, cappings and more.
The angles on this listing have a 15mm x 15mm (0.591 x 0.591") section profile and are available in 1mm, 2mm and 3mm (0.04, 0.08, 0.12") wall thickness in a range of lengths.
PRODUCT VERSIONS
Length
Thickness
Trade discounts
| 0-4 | 5-19 | 20+ |
|---|---|---|
| $46.55 | $41.80 | $38.20 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
90° carbon fiber angle in 15mm x 15mm (0.591 x 0.591") section.
The angle is manufactured using multiple plies of woven prepreg carbon fiber, autoclave cured at high temperature and pressure to produce a carbon fiber angle with excellent mechanical performance as well as a premium appearance.
The angle is finished inside and out with a smooth, glossy woven finish 2x2 twill carbon fiber fabric pattern.
Typical Uses
This high performance carbon fiber angle is suitable for a wide range of engineering applications including robotics, automation, model-making and motorsports. It can also be used as a sophisticated looking capping section for boxes, enclosures and cases.
How to Buy
Available in 1mm, 2mm, 3mm (0.04, 0.08, 0.12") wall thicknesses in a range of lengths; please select using the drop-down list at the top of the page.
Trade discounts
| 0-4 | 5-19 | 20+ |
|---|---|---|
| $46.55 | $41.80 | $38.20 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
90° carbon fiber angle in 15mm x 15mm (0.591 x 0.591") section.
The angle is manufactured using multiple plies of woven prepreg carbon fiber, autoclave cured at high temperature and pressure to produce a carbon fiber angle with excellent mechanical performance as well as a premium appearance.
The angle is finished inside and out with a smooth, glossy woven finish 2x2 twill carbon fiber fabric pattern.
Typical Uses
This high performance carbon fiber angle is suitable for a wide range of engineering applications including robotics, automation, model-making and motorsports. It can also be used as a sophisticated looking capping section for boxes, enclosures and cases.
How to Buy
Available in 1mm, 2mm, 3mm (0.04, 0.08, 0.12") wall thicknesses in a range of lengths; please select using the drop-down list at the top of the page.
Specification
Product Data
| Width | 15 | mm |
|---|---|---|
| Colour | Black | |
| Height | 15 | mm |
| Construction | Woven Laminate | |
| Appearance | 2x2 Twill (Glossy) | |
| Resin Matrix | Epoxy |
Fabric Specification
| Fibre Orientation | 0, 90 |
|---|
Mechanical Properties
| Tensile Strength (Lengthways) | 645 | MPa |
|---|---|---|
| Tensile Modulus (lengthways) | 55.2 | GPa |
| Tg Onset (DMA) | 140 | °C |
General Properties
| Gross Weight | 0.046 | kg |
|---|
All of our Pre-preg Carbon Fibre Angles have a Double-A finish meaning a glossy finish on both sides of the angle.
Many people prefer the natural finish of these carbon products, however if you wish to paint them for your specific application then you can do so. A light key with a fine abrasive paper like a 1200 grit wet and dry paper and a thorough degrease and clean using mild detergent or an alcohol wipe should be all that is needed to prepare the surface for paint.
