VF05 Vacuum Pump Filter 1/4" BSP

VF05 is a high quality, clear, plastic bodied vacuum pump inlet filter with 1/4" BSP female threads on its inlet and outlet. It is recommended for use with smaller, compact type vacuum pumps from manufacturers including Busch, Becker and Javac.

Use of a vacuum filter like VF05 is highly recommended for all vacuum pumps, in most environments, as it will protect the pump from ingestion of dust, dirt and other contamination that would otherwise significantly reduce the efficiency and lifespan of the pump.

VF05 uses a large surface area, high-flow paper filter element which causes almost zero restriction to the airflow and has no effect at all on the ultimate vacuum level achieved by the pump.

Emergency Resin Trap

Due to its deep, vertical design, VF05 will also act as a ‘last resort’ resin trap, should any resin accidentally be allowed to enter the vacuum line towards the pump. Any resin that enters the filter will first visibly collect in the bottom of the filter’s clear body before it can enter and permanently damage the vacuum pump.

Note: The resin trapping function of the VF05 filter is an emergency failsafe which will permanently damage the filter (whilst protecting the vacuum pump). It is not a substitute for a resin catch-pot in configurations where resin entering the vacuum line is to be expected, such as resin infusion.

How to Use

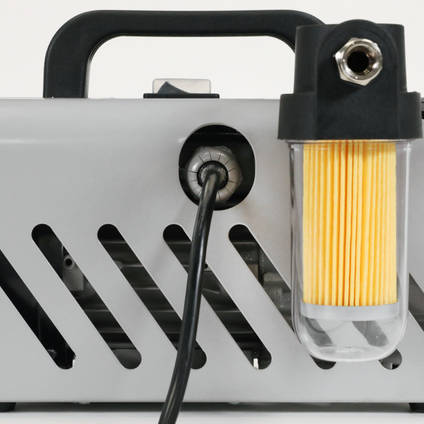

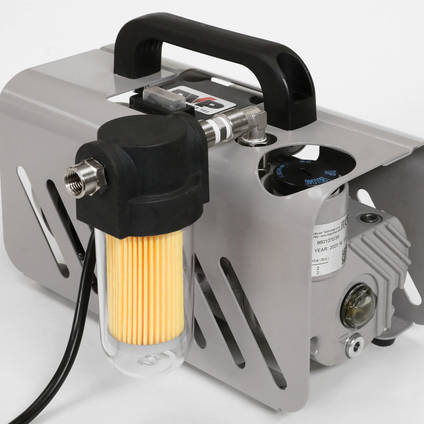

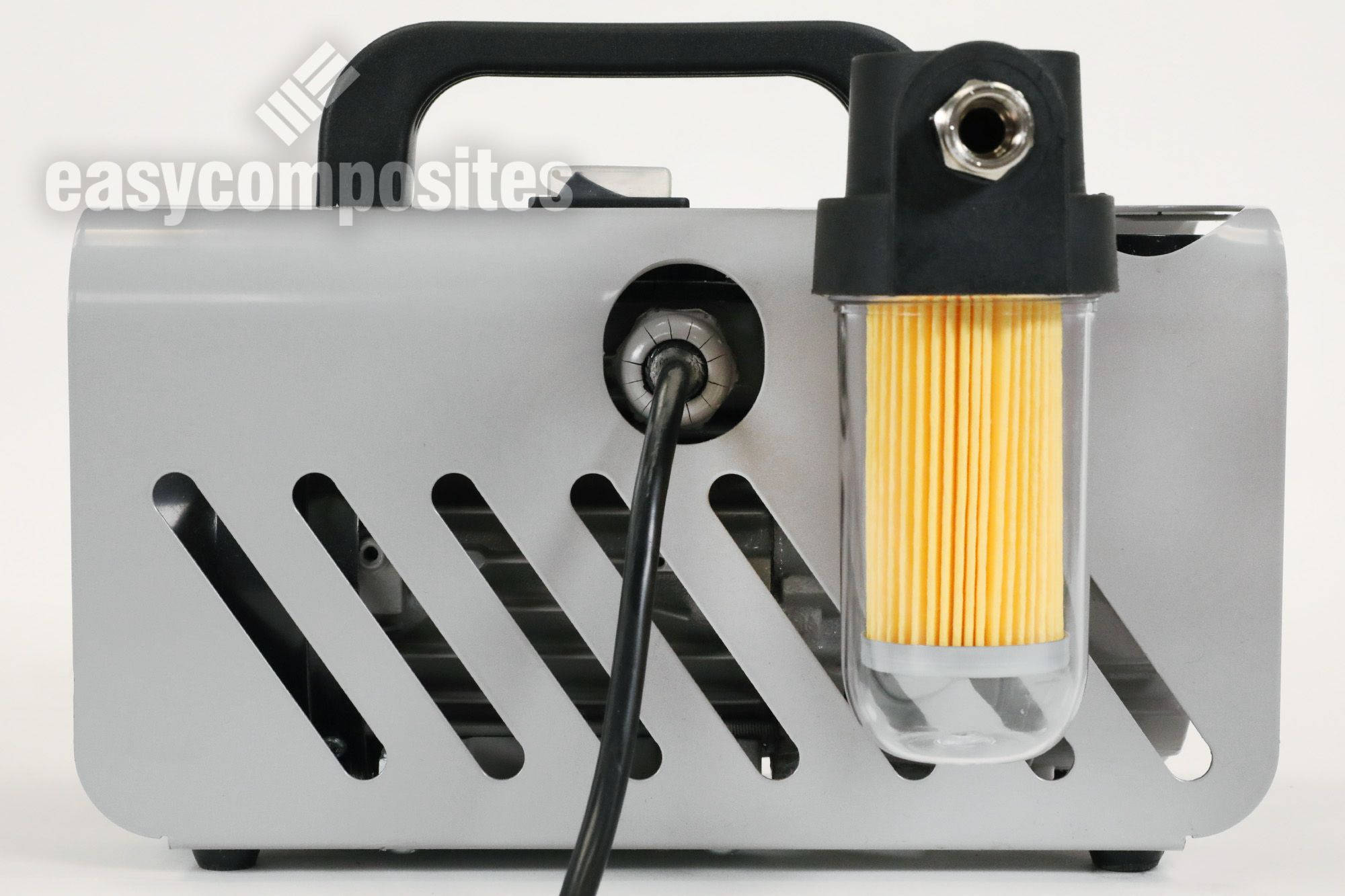

Installation

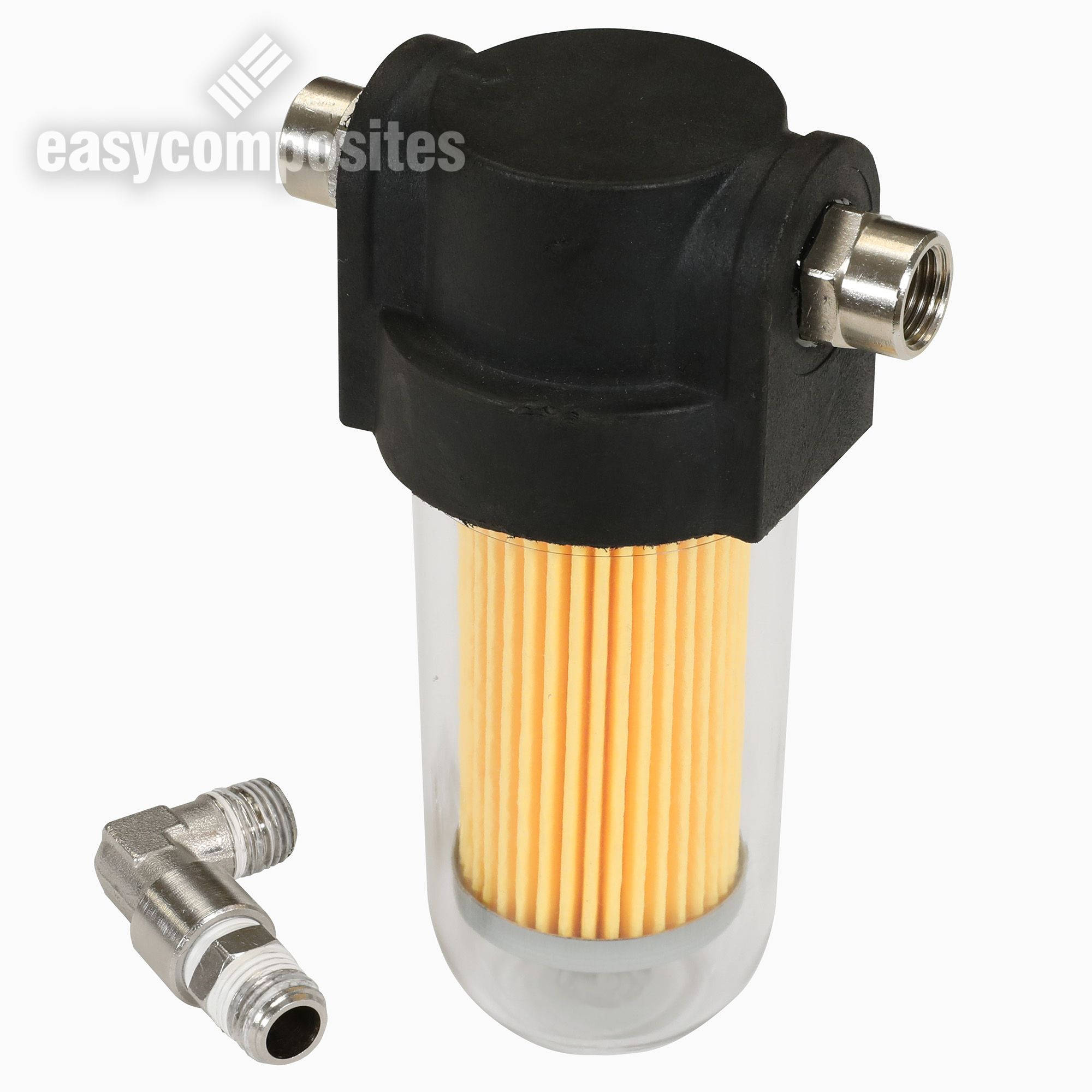

Both the inlet and outlet of the filter have a metal female 1/4" BSP (parallel) thread fittings bonded into the filter housing.

VF05 includes all the fittings, pre-assembled, necessary for secure connection to a variety of small vacuum pumps.

The included fittings are:

• Male-male 1/4" BSP-T 90° elbow
• Male-male 1/4" BSP-T straight connector
• Roll of PTFE thread-seal tape

Connecting to Other Vacuum Pumps

Depending on the position of the vacuum connector, connection to other types of compact vacuum pump may require additional pneumatic/vacuum fittings but can usually be achieved using a combination of the fittings included with the filter.

Maintenance

The VF05 Vacuum Pump Filter does not require any regular maintenance beyond occasional inspection of the paper filter and replacement as necessary. Note that performance of the vacuum pump will be reduced if the filter is clogged/contaminated.

Click here for VF05 Vacuum Pump Filter Replacement Element.
