Downloads (1)
 | Technical Datasheet (TDS) |  283 KB |
Specification
Weight and Dimensions
| Width | 1250 | mm |
|---|---|---|
| Areal Weight | 125 | g/m² |
Product Data
| Thickness | 0.7 | mm |
|---|---|---|
| Chemistry / Material | PES | |
| Colour | White | |
| Type | Flow Media | |
| Max Service Temp | 170 | °C |
| Format | Mesh |
General Properties
| Gross Weight | 0.873 | kg |
|---|
Shipping Information
Non Hazardous
This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.
Package Size
There are no package size restrictions or surcharges for this product.
Delivery Cost
To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.

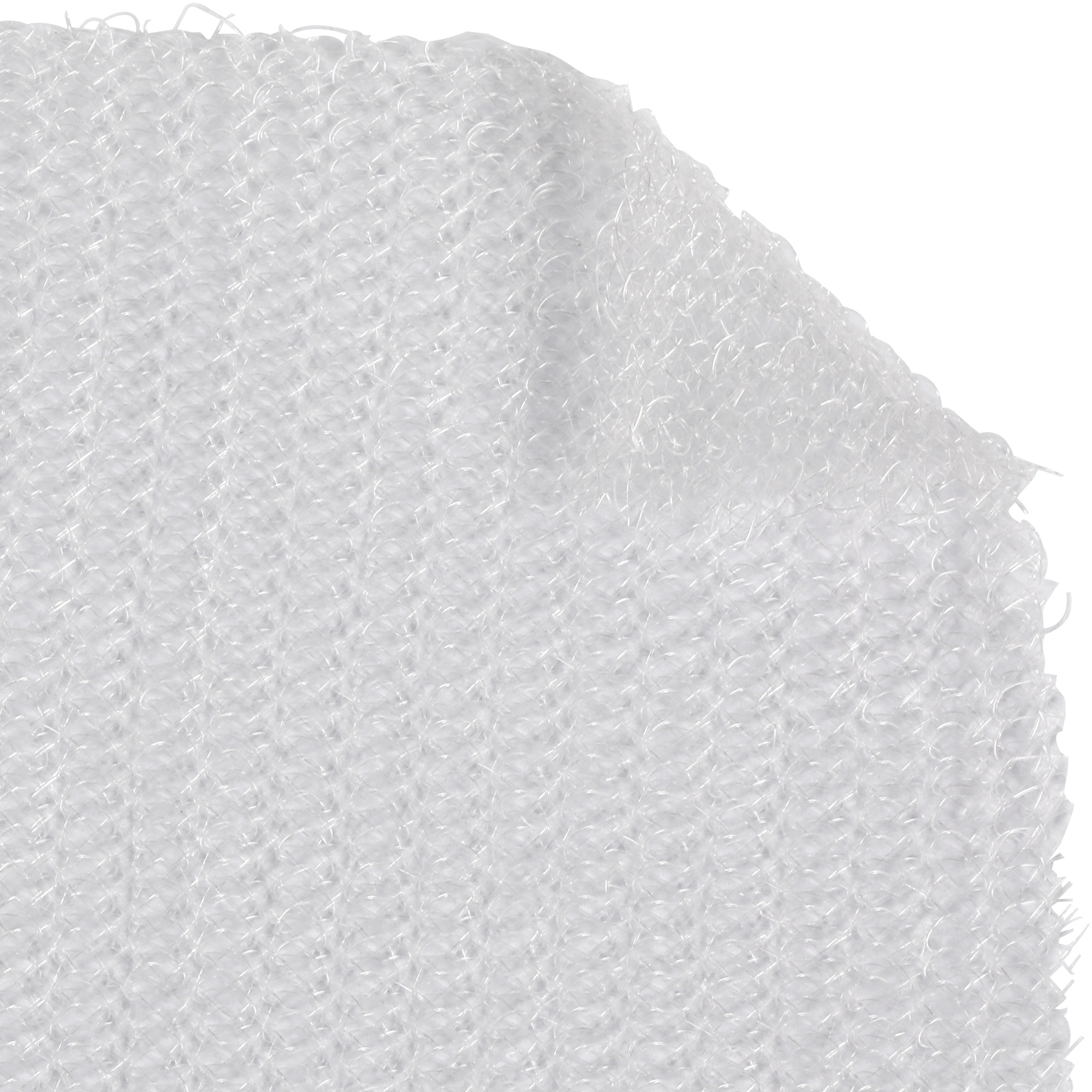

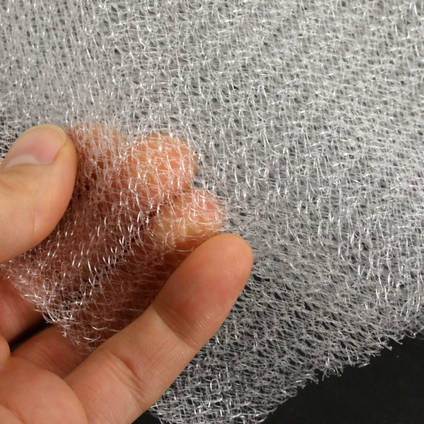

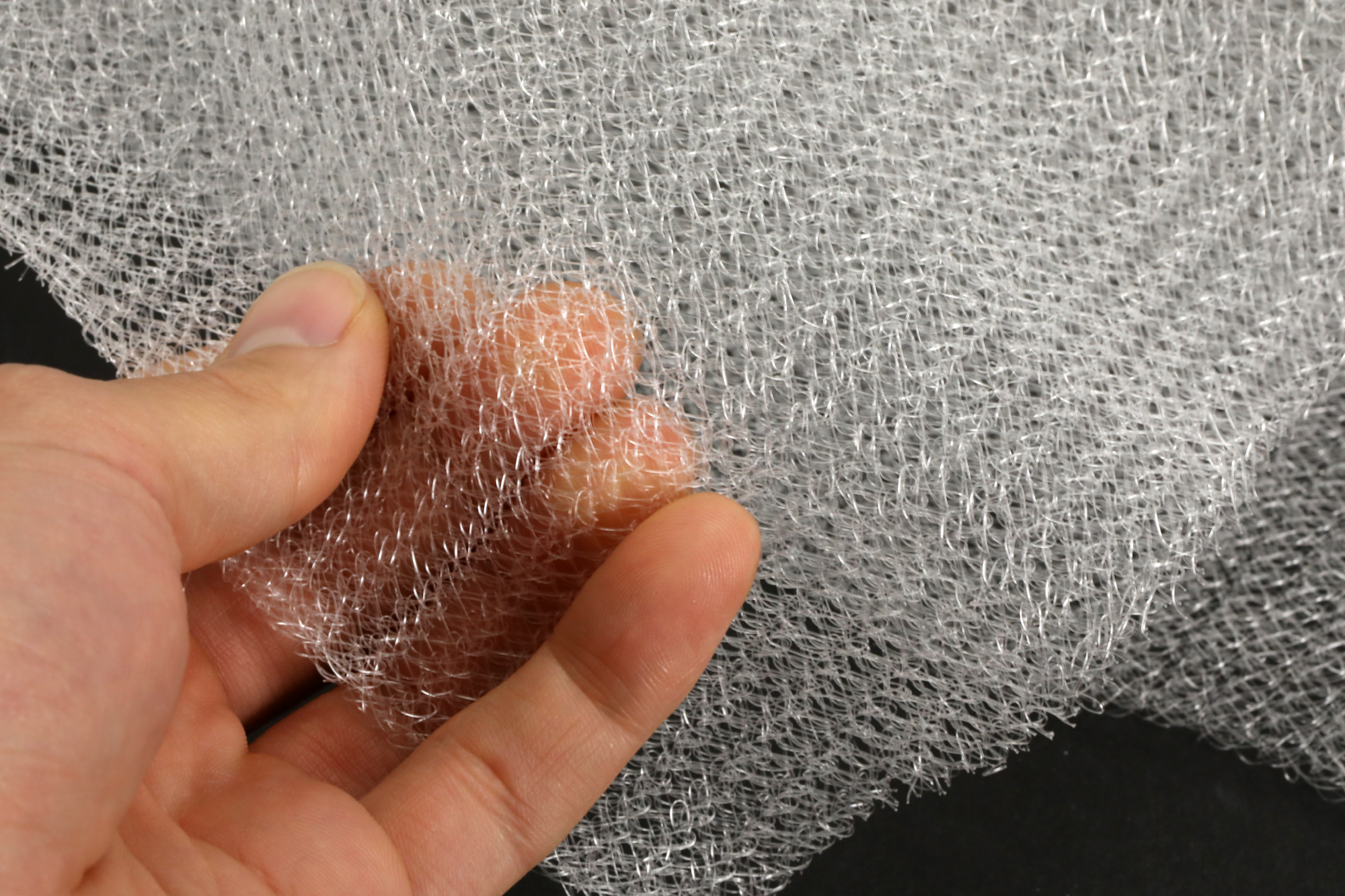

FM170 EasyFlow Knitted Infusion Mesh 1250mm (49")
- AFFM170-125-5PK
- No reviews
FM170 'EasyFlow' is a stretchy, drapable, knitted infusion mesh designed specifically as a flow media for more complex mold shapes. EasyFlow will conform over contoured mold surfaces and into tight corners whilst still maintaining excellent resin flow.

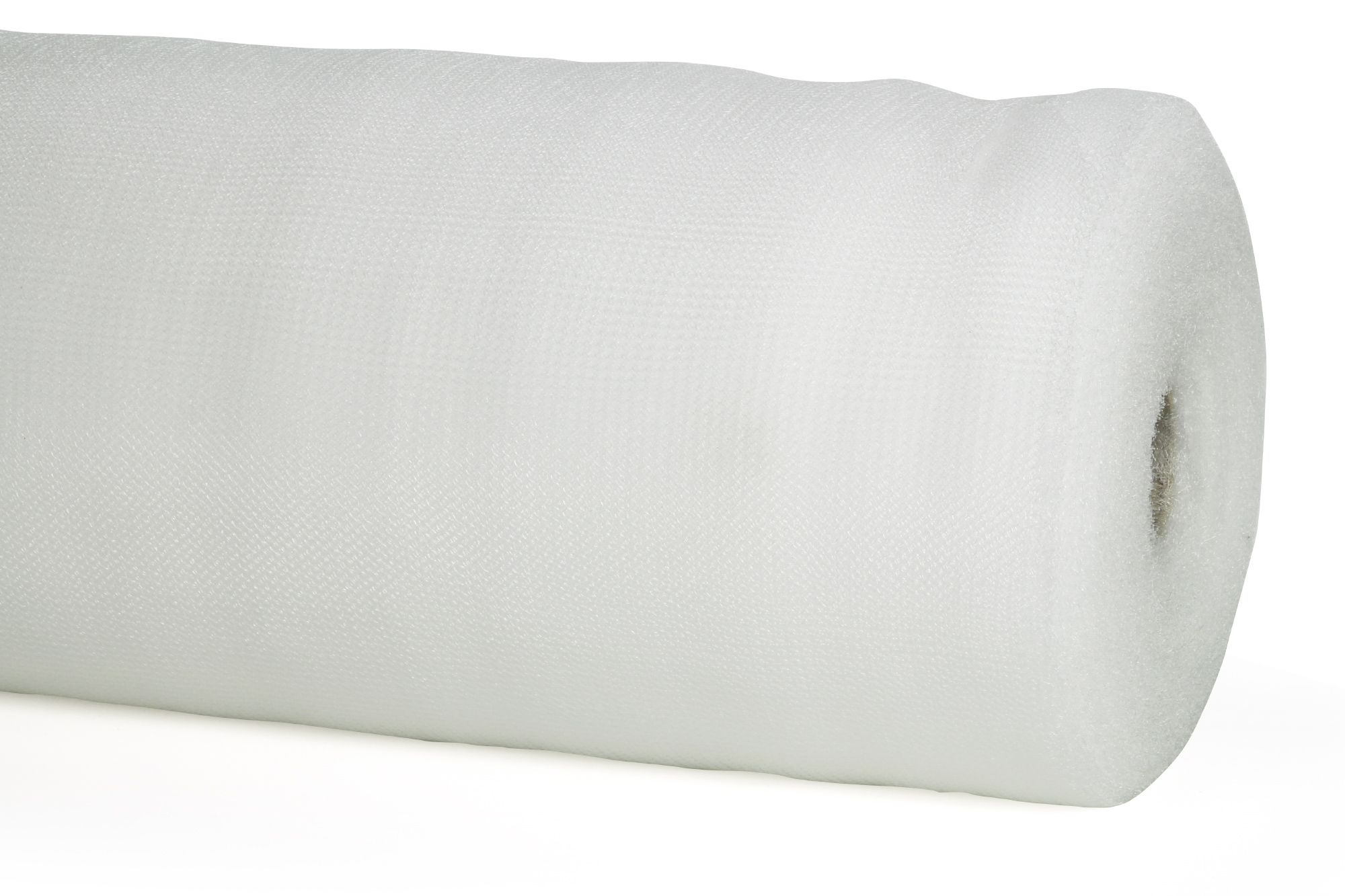

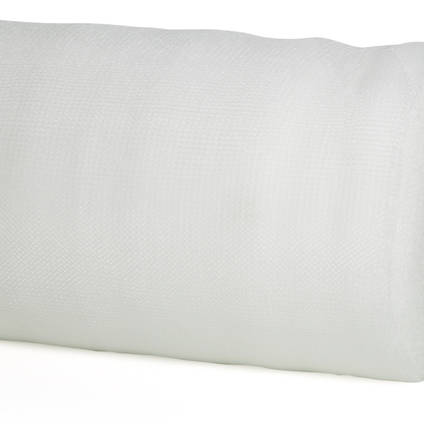

1.25m (49") wide. Available to buy online in a 5lm (5.5lyd) folded pack, by the linear meter or in full 100lm (110lyd) rolls.
PRODUCT VERSIONS
Units of Sale
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
FM170 EasyFlow Knitted Infusion mesh is a warp knitted polypropylene infusion mesh offering excellent flow media properties in conjunction with outstanding conformability over complex mold specifically as a flow media for more complex mold shapes. EasyFlow will conform over contoured mold surfaces and into tight corners whilst still maintaining excellent resin flow.
Recommended For:
- Resin infusion of more contoured or complex moldings
- Epoxy, polyester and vinylester infusions
FM170 EasyFlow mesh is suitable for infusion projects of almost any size; from small aero components through to vehicle panels, smaller boat hulls and wind energy moldings.
The soft, knitted structure of FM170 EasyFlow mesh makes it difficult to separate from peel ply once the part is cured and so to aid removal of the bagging consumables from the cured laminate, it is strongly recommended to use a heavily perforated release film between the FM170 EasyFlow mesh and the peel ply.
How to Buy
This knitted mesh is available to buy in a folded 5lm pack, by the linear meter (10lm minimum order) or in wholesale 100lm rolls. Please choose how you would like to purchase from the drop-down list above.
The material itself is 1.25m (49") wide meaning that each linear meter is equal to 1.25sqm.
The 1.25m (49") width of the mesh means that (except for the folded pack) it is supplied in a 130cm (51") long box. Please be aware that this 'oversize' package can result in higher transport costs for some international destinations. The 5m (5.5yd) pack is folded into a small package which avoids this 'oversize' charge.
We believe we offer unbeatable prices on vacuum bagging consumables. To make comparisons easy, select the different pack/roll sizes from the drop down menu above:
Further Information
FM170 EasyFlow mesh is most typically used as a conformable flow media to distribute resin through the laminate during vacuum resin infusion of more complex or contoured moldings. A typical consumables stack for this process would be peel ply, then P1 perforated film, the FM170 mesh and then the vacuum bag.
- Resin Infusion
- [ -- Dry Reinforcement -- ]
- Peel Ply
- P1 Perforated Release Film
- FM170 EasyFlow Infusion Mesh<
- Vacuum Bagging Film
FM170 EasyFlow Knitted Infusion mesh is a warp knitted polypropylene infusion mesh offering excellent flow media properties in conjunction with outstanding conformability over complex mold specifically as a flow media for more complex mold shapes. EasyFlow will conform over contoured mold surfaces and into tight corners whilst still maintaining excellent resin flow.
Recommended For:
- Resin infusion of more contoured or complex moldings
- Epoxy, polyester and vinylester infusions
FM170 EasyFlow mesh is suitable for infusion projects of almost any size; from small aero components through to vehicle panels, smaller boat hulls and wind energy moldings.
The soft, knitted structure of FM170 EasyFlow mesh makes it difficult to separate from peel ply once the part is cured and so to aid removal of the bagging consumables from the cured laminate, it is strongly recommended to use a heavily perforated release film between the FM170 EasyFlow mesh and the peel ply.
How to Buy
This knitted mesh is available to buy in a folded 5lm pack, by the linear meter (10lm minimum order) or in wholesale 100lm rolls. Please choose how you would like to purchase from the drop-down list above.
The material itself is 1.25m (49") wide meaning that each linear meter is equal to 1.25sqm.
The 1.25m (49") width of the mesh means that (except for the folded pack) it is supplied in a 130cm (51") long box. Please be aware that this 'oversize' package can result in higher transport costs for some international destinations. The 5m (5.5yd) pack is folded into a small package which avoids this 'oversize' charge.
We believe we offer unbeatable prices on vacuum bagging consumables. To make comparisons easy, select the different pack/roll sizes from the drop down menu above:
Further Information
FM170 EasyFlow mesh is most typically used as a conformable flow media to distribute resin through the laminate during vacuum resin infusion of more complex or contoured moldings. A typical consumables stack for this process would be peel ply, then P1 perforated film, the FM170 mesh and then the vacuum bag.
- Resin Infusion
- [ -- Dry Reinforcement -- ]
- Peel Ply
- P1 Perforated Release Film
- FM170 EasyFlow Infusion Mesh<
- Vacuum Bagging Film
Downloads (1)
| Technical Datasheet (TDS) | 283 KB |
Specification
Weight and Dimensions
| Width | 1250 | mm |
|---|---|---|
| Areal Weight | 125 | g/m² |
Product Data
| Thickness | 0.7 | mm |
|---|---|---|
| Chemistry / Material | PES | |
| Colour | White | |
| Type | Flow Media | |
| Max Service Temp | 170 | °C |
| Format | Mesh |
General Properties
| Gross Weight | 0.873 | kg |
|---|
