Specification

Product Data
Thread Size1/4"BSPT (R)
Compatible Nominal Hose Bore (Metric)8mm
Compatible Nominal Hose Bore (Imperial)5/16inches
General Properties
Gross Weight0.017kg

Shipping Information

Non Hazardous

This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.

Package Size

There are no package size restrictions or surcharges for this product.

Delivery Cost

To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.

Hose-Tail Barb Connectors

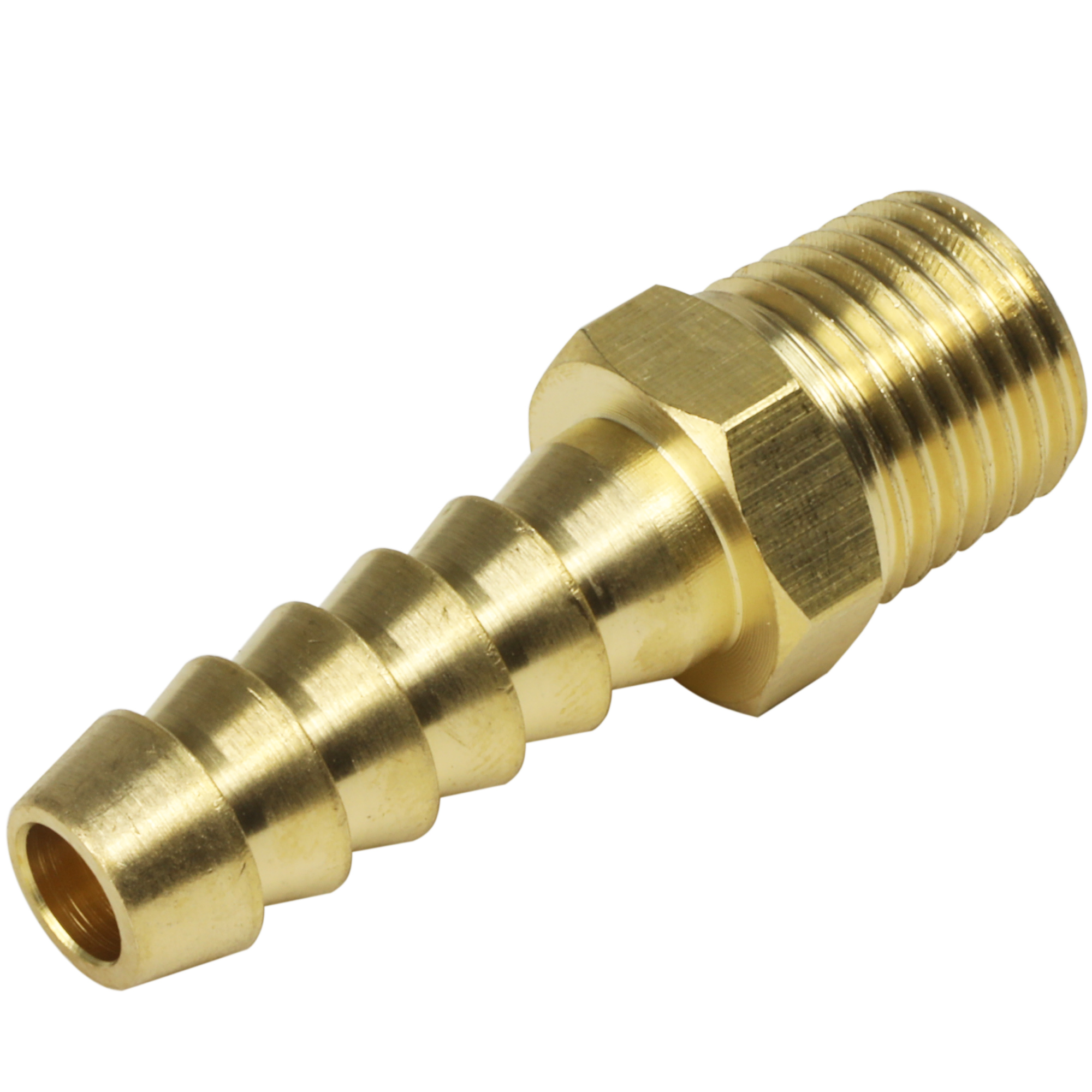

These brass vacuum hose-tail connectors, also known as a barb connectors, have a push-fit tail used to connect vacuum hose to a range of equipment.

Available with a 1/4" BSPT (R) thread to suit 6mm, 8mm, 10mm and 12mm (1/4", 0.31", 0.39" and 1/2") ID hoses and with a 1/2" BSPT (R) thread to suit a 8mm and 12mm (0.31" and 1/2") ID hose.


PRODUCT VERSIONS

Size
AVAILABILITY:More than 50 availablefor immediate shipping

PRICE
$2.35
More than 50 availablefor immediate shipping
QTY
EACH
EACH
We won’t be beaten on price!

If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

Brass vacuum hose-tail connector (also known as a barb connector, hose tail fitting or brass hose tail) Available as a 1/4" BSPT (R) hose tail thread for 6mm, 8mm, 10mm (1/4", 0.31", 0.39") spring compatible, and 12mm (1/2") ID hose or a 1/2" BSPT thread for 8mm and 12mm (0.31" and 1/2") hose tail.

Please select the version you require from the drop down menu.

Except for the 1/2" BSPT (R) 12mm (1/2") version, these hose-tail connectors are supplied with a standard 1/4" BSPT (R) male thread suitable for screwing into a 1/4" BSP female thread on vacuum equipment and fittings including our 1/4 Turn Vacuum Valve.

We recommend the use of PTFE tape on all vacuum fittings to ensure an air-tight seal.

Use with Reinforcement Spring

When using in conjunction with our Reinforcement Spring and 8mm (0.31") ID Vacuum Hose you must select the 10mm (0.39") ID (spring compatible) size hose tail connector. This size is specially designed to accept the reinforcement spring in a very tight fit. It also offers a very strong (almost impossible to remove) connection to the 8mm (0.31") ID vacuum hose.

Brass vacuum hose-tail connector (also known as a barb connector, hose tail fitting or brass hose tail) Available as a 1/4" BSPT (R) hose tail thread for 6mm, 8mm, 10mm (1/4", 0.31", 0.39") spring compatible, and 12mm (1/2") ID hose or a 1/2" BSPT thread for 8mm and 12mm (0.31" and 1/2") hose tail.

Please select the version you require from the drop down menu.

Except for the 1/2" BSPT (R) 12mm (1/2") version, these hose-tail connectors are supplied with a standard 1/4" BSPT (R) male thread suitable for screwing into a 1/4" BSP female thread on vacuum equipment and fittings including our 1/4 Turn Vacuum Valve.

We recommend the use of PTFE tape on all vacuum fittings to ensure an air-tight seal.

Use with Reinforcement Spring

When using in conjunction with our Reinforcement Spring and 8mm (0.31") ID Vacuum Hose you must select the 10mm (0.39") ID (spring compatible) size hose tail connector. This size is specially designed to accept the reinforcement spring in a very tight fit. It also offers a very strong (almost impossible to remove) connection to the 8mm (0.31") ID vacuum hose.

Specification

Product Data
Thread Size1/4"BSPT (R)
Compatible Nominal Hose Bore (Metric)8mm
Compatible Nominal Hose Bore (Imperial)5/16inches
General Properties
Gross Weight0.017kg
