High Temperature Carbon Fiber Laminating Starter Kit

Whether you're an experienced composites engineer in need of a small amount of material for an emergency job or a total novice keen to try your hand at making your own carbon fiber products, the Easy Composites Carbon Fiber Starter Kit provides you with all the necessary materials and information you need to start making your own carbon fiber parts.

This kit includes top quality 2/2 twill 3k carbon fiber fabric, high temperature epoxy resin (formulated specifically to our exact requirements) and includes the same high quality laminating brushes and gloves we use daily in our workshop. The epoxy has been specially formulated for use in carbon fiber lamination having excellent characteristics such as the right viscosity, pot-life, strength and clarity.

High Temperature Version

This 'High Temperature' version of the kit includes our EL160 High Temperature Epoxy Laminating Resin designed for applications where the finished parts will be subjected to high surrounding temperatures such as under hot-engine pays, exhaust shields, end cans and other engineering applications where the parts will be operating in temperatures up to 160°C (320°F). When using the High Temperature version of the kit it is important to 'post-cure' the parts at elevated temperature prior to use. See Datasheets instructions and post-cure details.

Further Information

Dimensions

When unrolled the carbon fiber fabric is 300mm(12") wide and 1000mm(39") long.

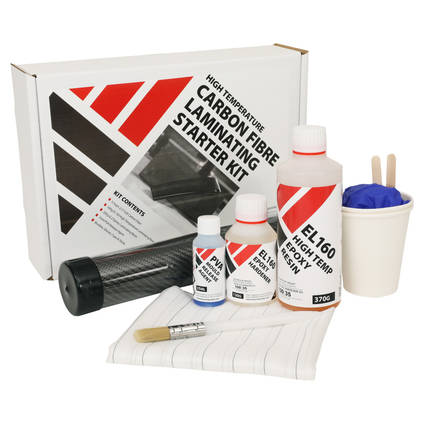

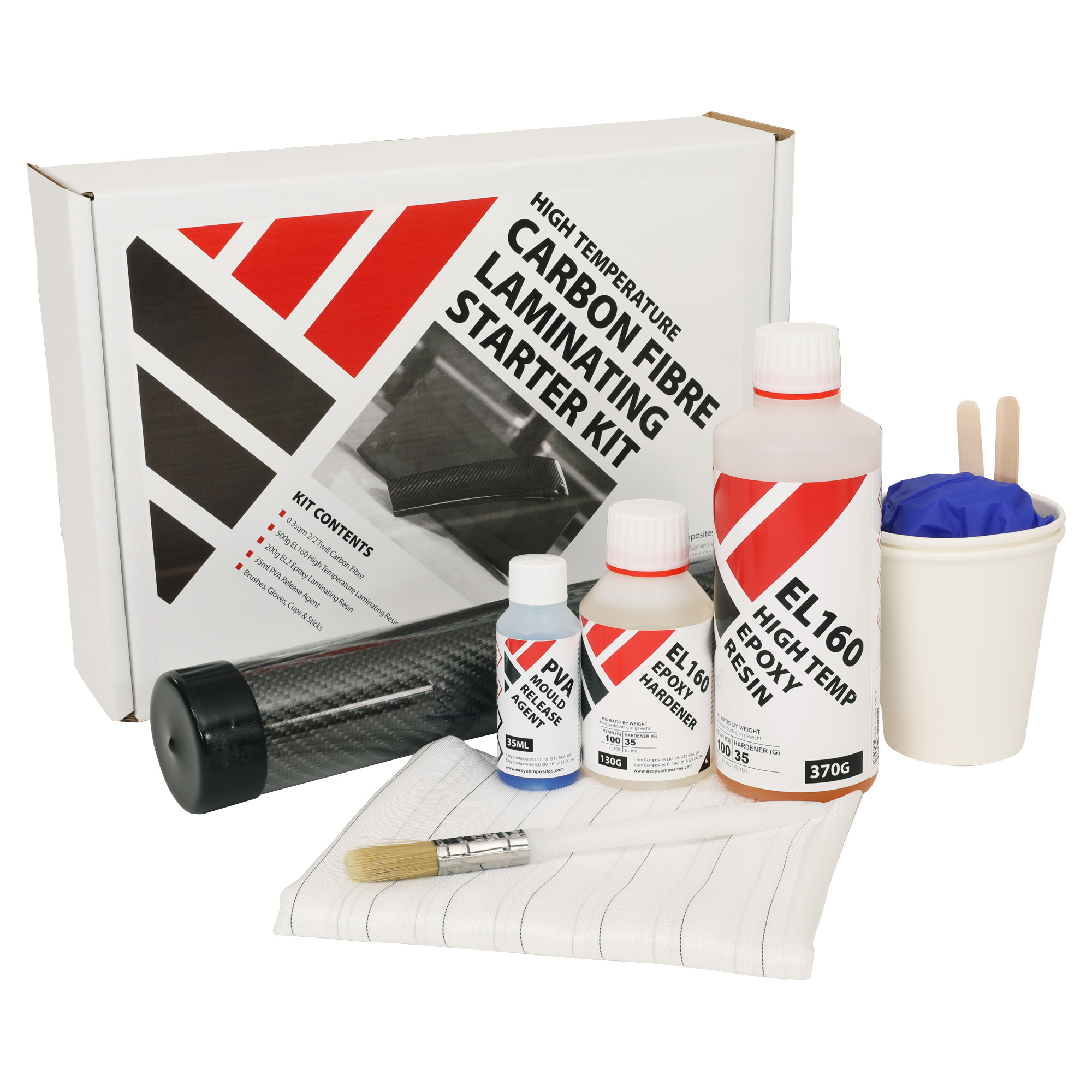

Kit Contents.

• 0.3sqm (0.36sq yd) 2/2 Twill 3k Carbon Fiber Cloth
• 370g (14oz) EL160 High Temperature laminating epoxy resin
• 130g (5oz) EL160 epoxy hardener
• 35ml (1.2oz) PVA mold release agent
• 2 pairs latex gloves, 2 mixing pots, 2 mixing sticks
• 1" (25mm) laminating brush
