Forged Carbon Fiber Development Kit
- Easy Composites
- SK-FCF
Hazardous- 5/5 Average rating
This kit includes all of the materials required to undertake compression molding of high performance forged carbon fiber components. All that is required is a two-part compression mold made from cast resin, 3D printed or machined metal.
Contains 750g premium quality CT-12 virgin chopped tow carbon fiber, 50g of long strand carbon tow, high-performance IN2 epoxy infusion resin, RW4 high-build spray wax and ancillaries.
54 more can built in 2-3 days
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
Forged carbon components provide excellent mechanical performance that can rival or better that of metals and allows fully molded shapes to be produced that would be almost impossible using traditional single-sided composite molding methods. This development kit has been put together to allow engineers and keen hobbyists to experiment and prototype with this highly effective process.
The kit includes 750g of premium quality CT-12 virgin chopped tow carbon fiber, our high-performance IN2 epoxy infusion resin, RW4 high-build spray wax and ancillaries, all of which work together and will create forged carbon fiber parts with outstanding mechanical properties.
The kit is designed to work in tandem with our forged carbon fiber video tutorial to provide an accessible, reliable and comprehensive introduction to the process of compression molding solid carbon fiber components.
New for 2024, the kit now also includes a 50g pack of long-strand carbon fiber tow to allow for experimentation with strength optimisation using unidirectional reinforcement within the forged carbon component.
Typical Uses
This Development kit is ideally suited to anyone looking to explore this highly effective manufacturing process and produce functional forged carbon fiber components. Common applications include light-weighting of assemblies by replacing metal components, development of new lightweight structural elements, production of aftermarket and upgraded automotive components and many more uses where conventional composites may not be appropriate. A notable benefit of this process is that It allows the production of high-strength components using only a conventional FDM 3D printer opening up a range of possibilities in this sector.
Use this kit to:
- Produce solid forged carbon fiber with excellent mechanical performance.
- Rapidly prototype mechanical components without specialist machinery.
- Reduce weight by upgrading from metal components
Quantity
The kit includes 750g of CT12 chopped carbon fiber tow, 50g of long strand carbon fiber tow (cut to approximately 250mm length) and 1kg of IN2 epoxy infusion resin, which provides enough material to produce approximately 1kg (or 0.7 litres) of solid carbon components due to the resin which is squeezed from the mould.
The Forged Carbon Fiber Process
Overview
Suitable Molds
In order to use this kit to produce forged carbon fiber parts, you will require a set of molds designed with compression molding in mind. These compression molds can be made by 3D printing, resin casting or CNC machining, as described in the tutorial. See also our tutorial on resin casting a two-part compression mold.

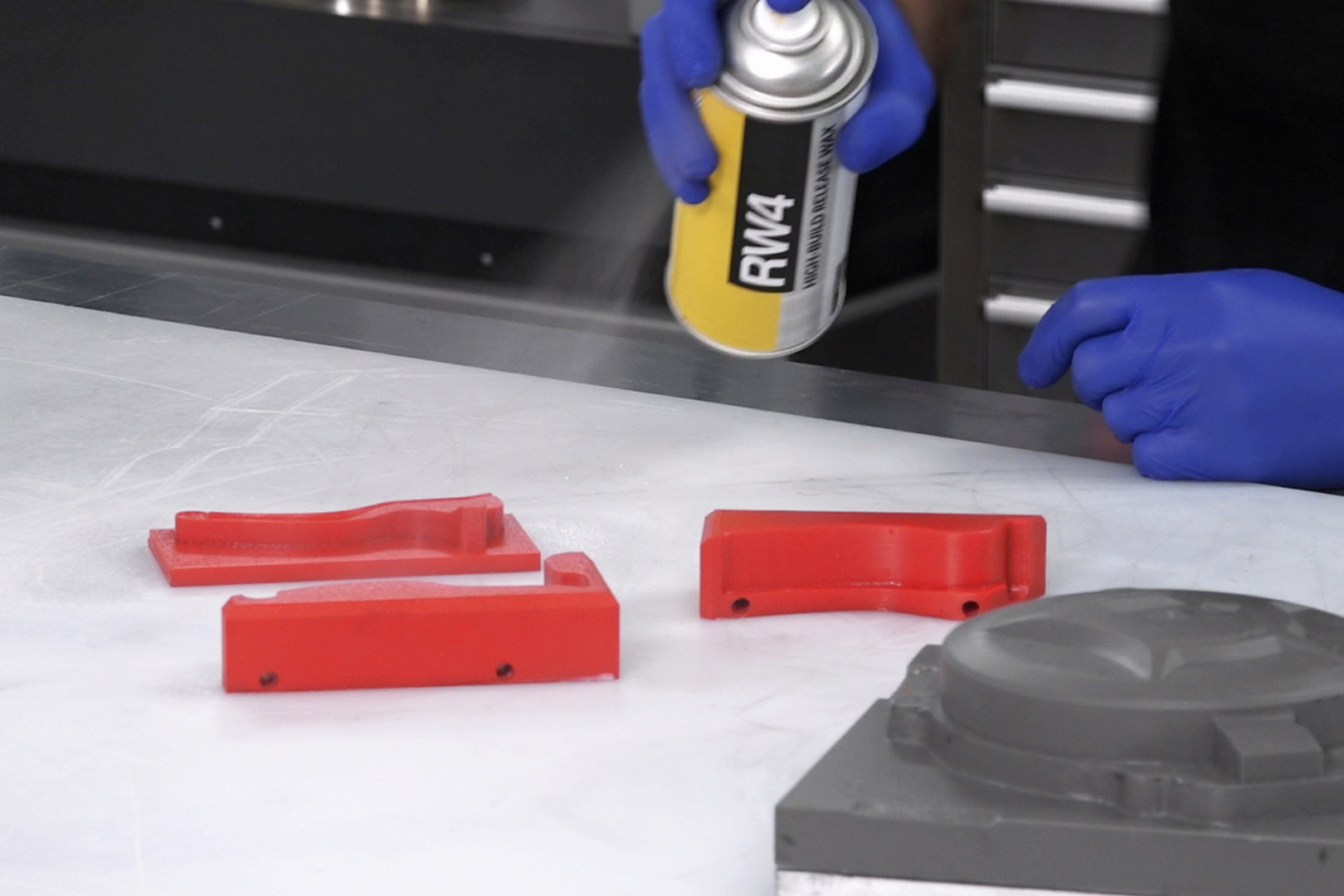

Mold Preparation

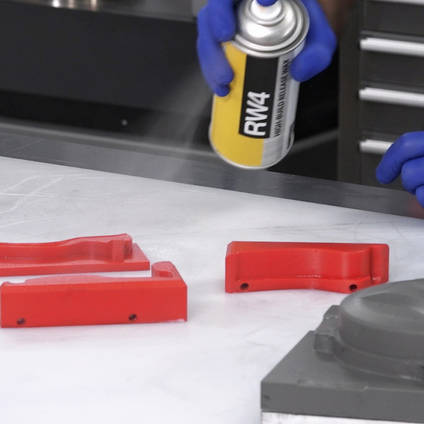

Before laminating, all mold sections should be prepared using multiple applications of RW4 spray release wax (included in kit). Any holes or bolt threads should be sealed or smoothed using filleting wax (also included).

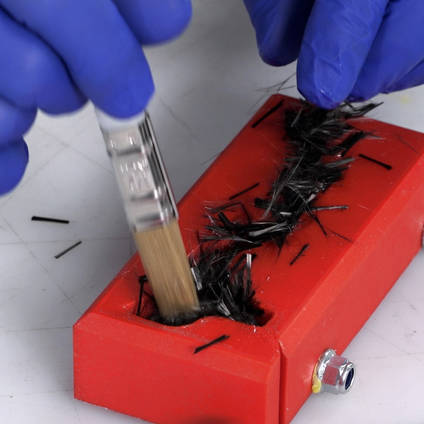

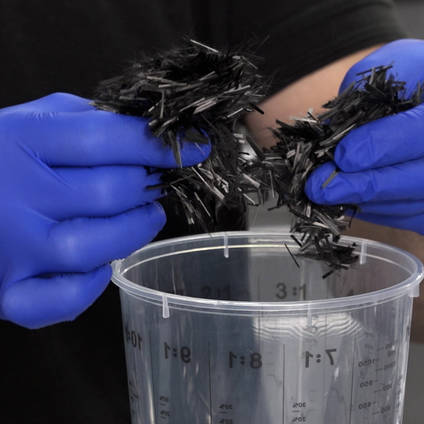

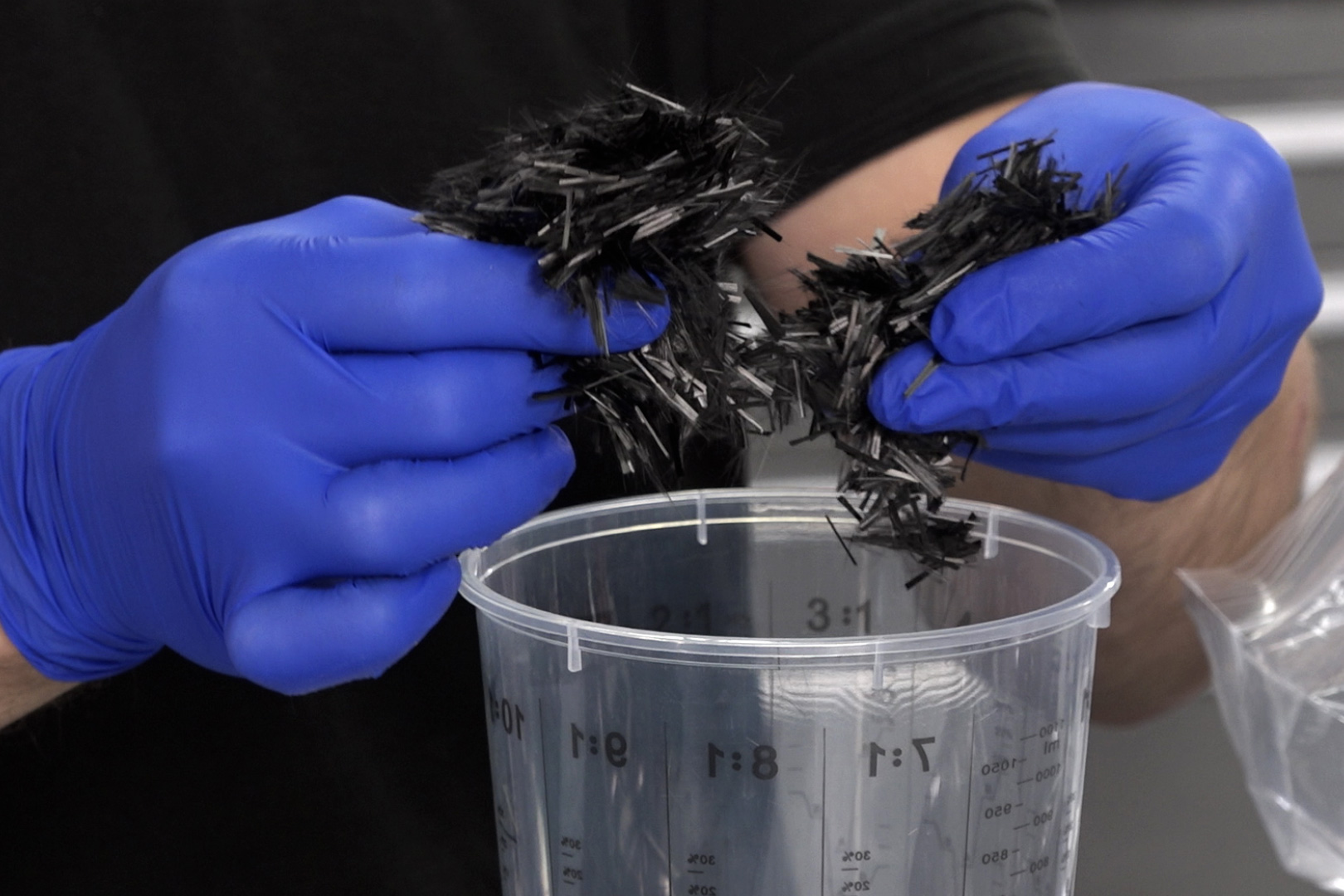

Fiber and Resin Loading

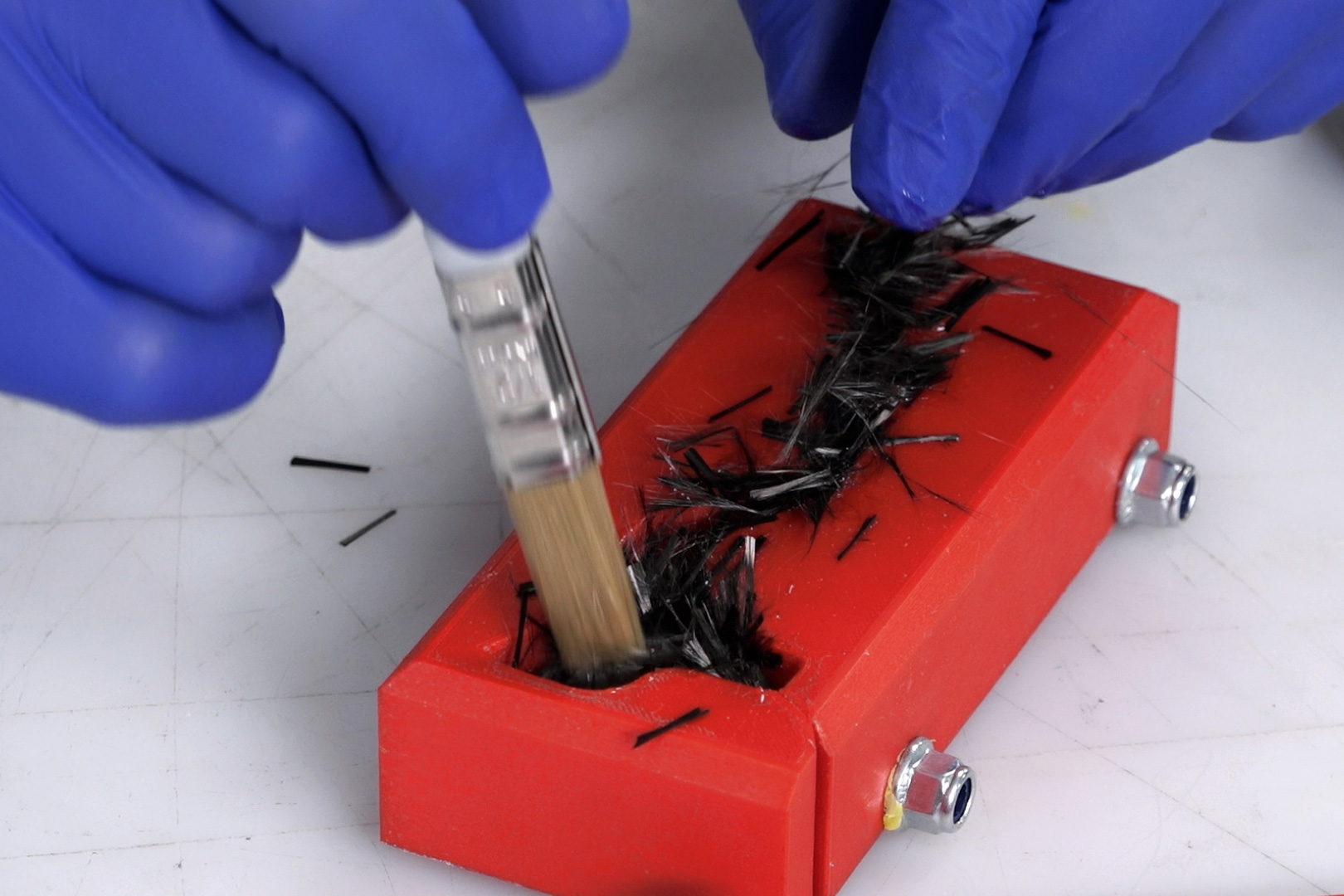

The chopped carbon fiber tow and low viscosity epoxy should be accurately weighed and loaded into the mold. This will appear to mean overloading the mold cavity, which is the reason why the mold needs to be designed with some 'compression space'.

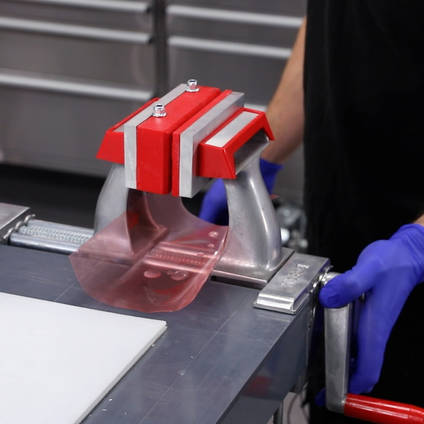

Compression

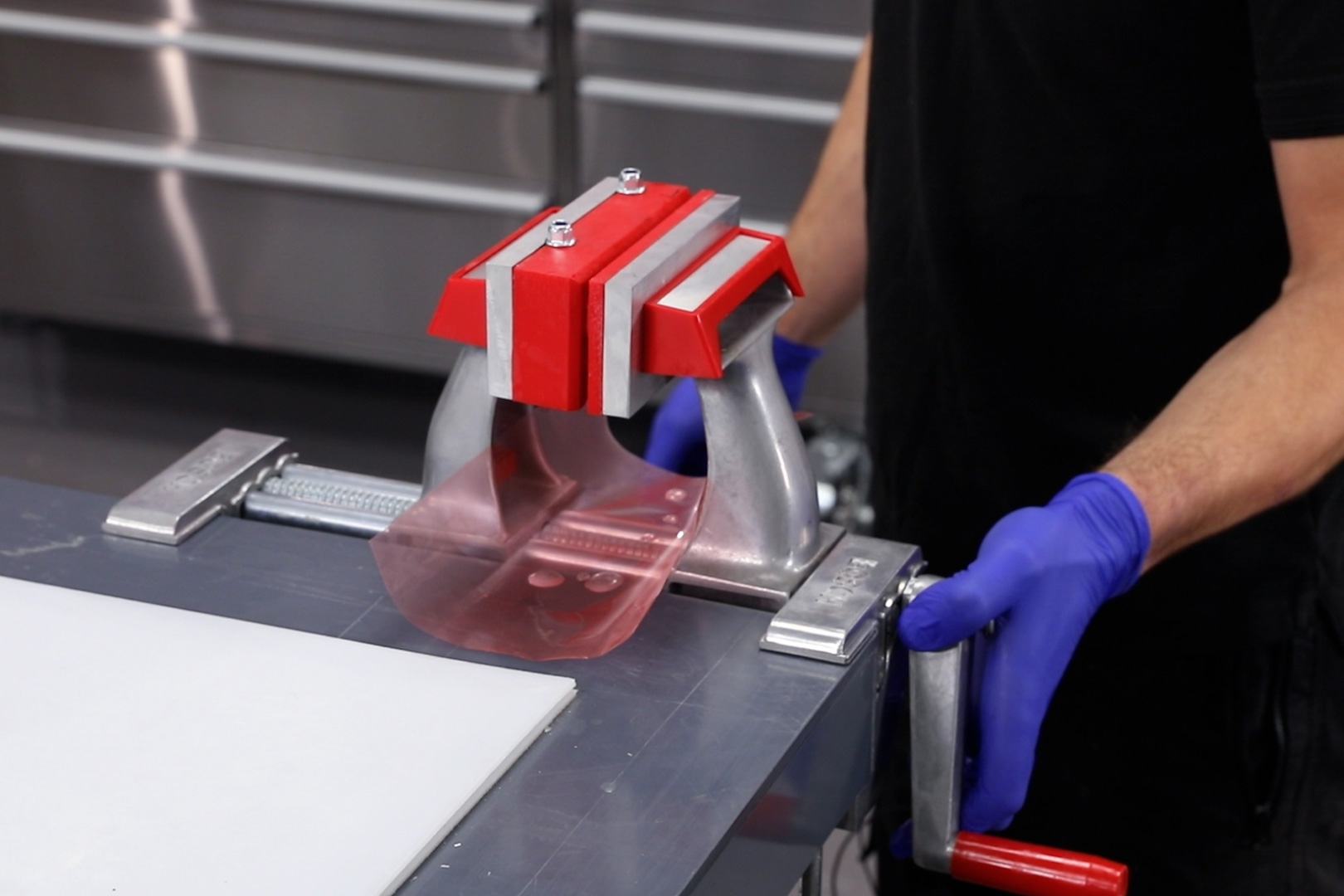

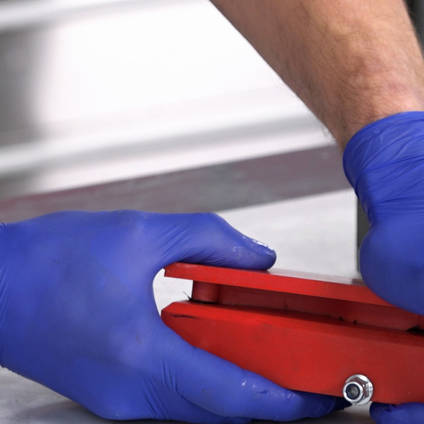

Once the molds have been loaded with fiber and resin the two mold halves can then be compressed together, This clamping can be done with either a bench vice, G-clamps, or a press. The compression needs to be done gradually over a period of a several minutes to allow time for the excess resin to escape.
Curing and Finishing

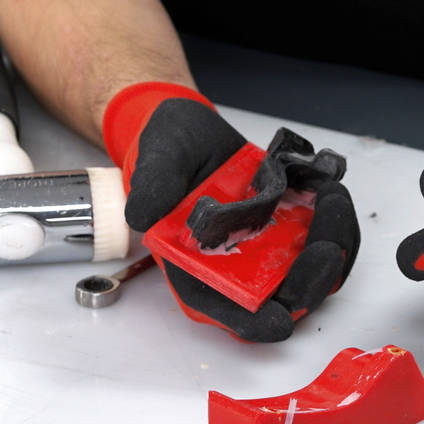

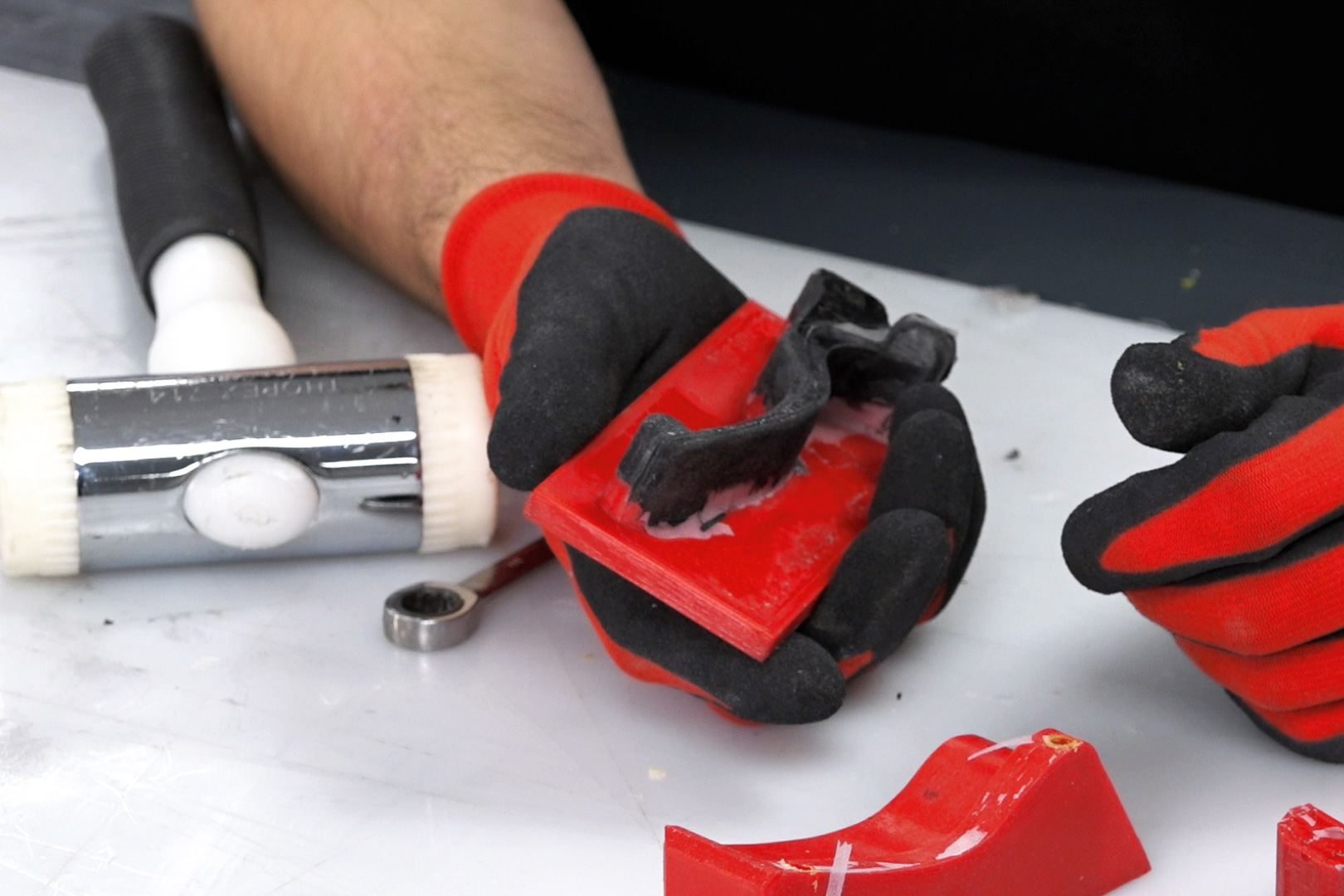

After curing at room temperature for around 24hrs, the part can be demolded and any flashing or nibs removed using abrasive paper. Parts produced from a 3D printed mold can have their layer lines removed using abrasive paper if required.
Where a high-gloss finish is preferred, components can be finished using a spray applied clear-coat or brush applied XCR coating resin (not included).
Full details of the process can be found on our compression molding forged carbon fiber project page.
Additional information about mold design and use of the long-strand carbon fiber tow for strength optimisation can be found in the follow-up forged carbon mold design and strength optimisation video tutorial.

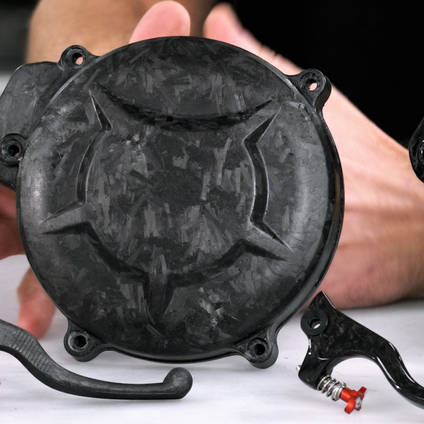

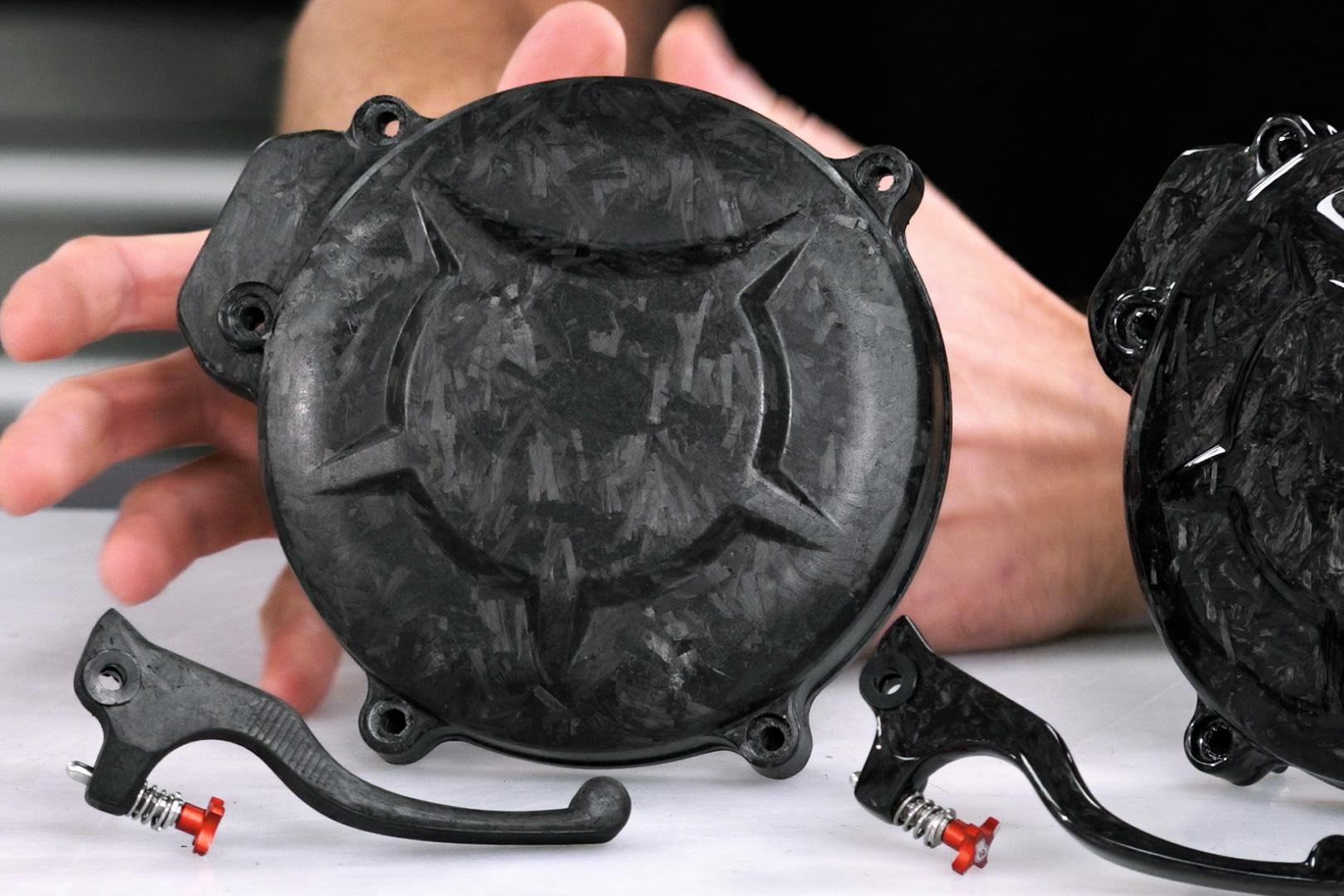

What Results Can I Expect?
Done correctly, this forged carbon fiber molding process is remarkable reliable, consistent and capable of producing accurate components with excellent mechanical properties and very low void content.
The success of the process will largely depend on the design and accuracy of the compression molds, accuracy of material measurement and - to some extent - appropriate distribution of the reinforcement, all of which should be within the scope of any engineer or keen hobbyist. The surface finish is mostly influenced by the mold tools; machined, resin cast or resin printed tools will generally offer a finer finish than FDM printed ones where the layer-lines will be transferred into the part. For cosmetic finish parts, some minor fettling or filling can be required.

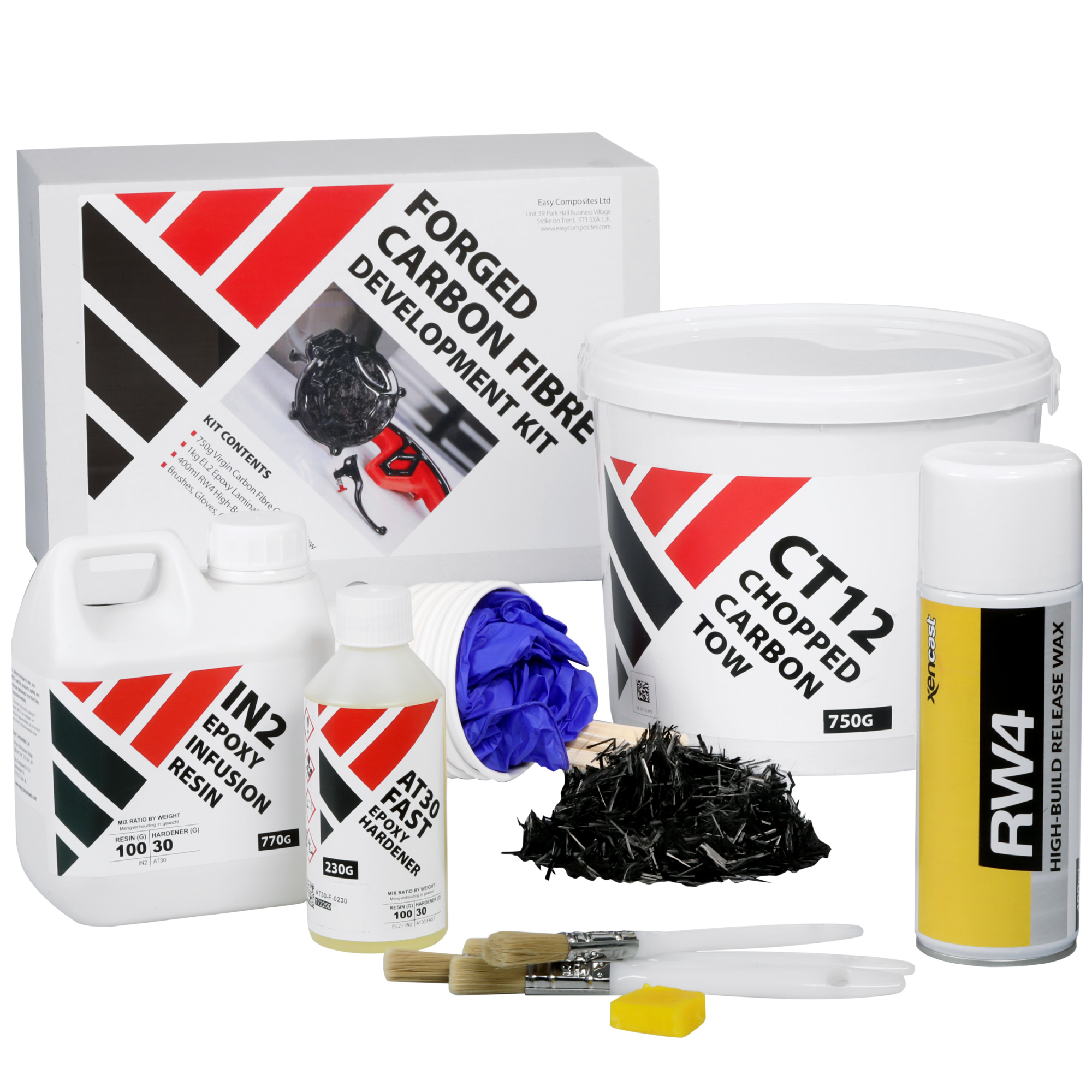

Kit Contents
- 750g CT12 chopped tow carbon fiber
- 50g of long strand 6k carbon fiber tow cut into approximately 250mm lengths.
- 1kg IN2 infusion epoxy (inc. AT30 fast hardener)
- 400ml RW4 high-build spray release wax
- 10g filleting wax
- 5 pairs nitrile gloves, 5 mixing pots, 5 mixing sticks
- 5 laminating brushes (12mm)
Forged carbon components provide excellent mechanical performance that can rival or better that of metals and allows fully molded shapes to be produced that would be almost impossible using traditional single-sided composite molding methods. This development kit has been put together to allow engineers and keen hobbyists to experiment and prototype with this highly effective process.
The kit includes 750g of premium quality CT-12 virgin chopped tow carbon fiber, our high-performance IN2 epoxy infusion resin, RW4 high-build spray wax and ancillaries, all of which work together and will create forged carbon fiber parts with outstanding mechanical properties.
The kit is designed to work in tandem with our forged carbon fiber video tutorial to provide an accessible, reliable and comprehensive introduction to the process of compression molding solid carbon fiber components.
New for 2024, the kit now also includes a 50g pack of long-strand carbon fiber tow to allow for experimentation with strength optimisation using unidirectional reinforcement within the forged carbon component.
Typical Uses
This Development kit is ideally suited to anyone looking to explore this highly effective manufacturing process and produce functional forged carbon fiber components. Common applications include light-weighting of assemblies by replacing metal components, development of new lightweight structural elements, production of aftermarket and upgraded automotive components and many more uses where conventional composites may not be appropriate. A notable benefit of this process is that It allows the production of high-strength components using only a conventional FDM 3D printer opening up a range of possibilities in this sector.
Use this kit to:
- Produce solid forged carbon fiber with excellent mechanical performance.
- Rapidly prototype mechanical components without specialist machinery.
- Reduce weight by upgrading from metal components
Quantity
The kit includes 750g of CT12 chopped carbon fiber tow, 50g of long strand carbon fiber tow (cut to approximately 250mm length) and 1kg of IN2 epoxy infusion resin, which provides enough material to produce approximately 1kg (or 0.7 litres) of solid carbon components due to the resin which is squeezed from the mould.
The Forged Carbon Fiber Process
Overview
Suitable Molds
In order to use this kit to produce forged carbon fiber parts, you will require a set of molds designed with compression molding in mind. These compression molds can be made by 3D printing, resin casting or CNC machining, as described in the tutorial. See also our tutorial on resin casting a two-part compression mold.
Mold Preparation
Before laminating, all mold sections should be prepared using multiple applications of RW4 spray release wax (included in kit). Any holes or bolt threads should be sealed or smoothed using filleting wax (also included).
Fiber and Resin Loading
The chopped carbon fiber tow and low viscosity epoxy should be accurately weighed and loaded into the mold. This will appear to mean overloading the mold cavity, which is the reason why the mold needs to be designed with some 'compression space'.
Compression
Once the molds have been loaded with fiber and resin the two mold halves can then be compressed together, This clamping can be done with either a bench vice, G-clamps, or a press. The compression needs to be done gradually over a period of a several minutes to allow time for the excess resin to escape.
Curing and Finishing
After curing at room temperature for around 24hrs, the part can be demolded and any flashing or nibs removed using abrasive paper. Parts produced from a 3D printed mold can have their layer lines removed using abrasive paper if required.
Where a high-gloss finish is preferred, components can be finished using a spray applied clear-coat or brush applied XCR coating resin (not included).
Full details of the process can be found on our compression molding forged carbon fiber project page.
Additional information about mold design and use of the long-strand carbon fiber tow for strength optimisation can be found in the follow-up forged carbon mold design and strength optimisation video tutorial.
What Results Can I Expect?
Done correctly, this forged carbon fiber molding process is remarkable reliable, consistent and capable of producing accurate components with excellent mechanical properties and very low void content.
The success of the process will largely depend on the design and accuracy of the compression molds, accuracy of material measurement and - to some extent - appropriate distribution of the reinforcement, all of which should be within the scope of any engineer or keen hobbyist. The surface finish is mostly influenced by the mold tools; machined, resin cast or resin printed tools will generally offer a finer finish than FDM printed ones where the layer-lines will be transferred into the part. For cosmetic finish parts, some minor fettling or filling can be required.
Kit Contents
- 750g CT12 chopped tow carbon fiber
- 50g of long strand 6k carbon fiber tow cut into approximately 250mm lengths.
- 1kg IN2 infusion epoxy (inc. AT30 fast hardener)
- 400ml RW4 high-build spray release wax
- 10g filleting wax
- 5 pairs nitrile gloves, 5 mixing pots, 5 mixing sticks
- 5 laminating brushes (12mm)
Downloads (7)
This is a chemical product. Before storage or use you must download and read the accompanying safety and technical datasheets.
| RW4 Safety Datasheet (SDS) - NL | 745 KB |
| IN2 Safety Datasheet (SDS) - NL | 1 MB |
| Filleting Wax Safety DataSheet (SDS) | 498 KB |
| RW4 Safety Datasheet (SDS) - EN | 695 KB |
| IN2 Safety Datasheet (SDS) - EN | 1 MB |
| Chopped Tow Safety Datasheet (SDS) - EN | 237 KB |
| Forged Carbon Example Compression Moulds CAD Files | 4 MB |
Specification
General Properties
| Gross Weight | 2.65 | kg |
|---|---|---|
| Brand | Easy Composites |
There is no clearance. Once fully clamped, the mould halves are designed to be in full contact. As you are clamping the mould, there is still a gap as you wind on the pressure which is where the resin and air escapes from. Once fully clamped together, there will be no excess to squeeze out and hence no need to have any clearance.
Adding Kevlar into the mix could certainly help, much like with the hybrid carbon Kevlar fabrics available for laminating processes.
We have meaured and investigated the properties of forged carbon parts in this video: Investigating the Mechanical Performance of Forged Carbon Fibre Components.
It's quite difficult to give specific maximum and minimum dimensions for overall size, and wall thickness of parts because the shape and geometry of a component has a significant bearing on these other parameters, as does the mould strength and clamping compression force. To give some approximate indications we'd suggest that thickness should be at least 1mm and not more than 10mm. Overall component size really does come down to practicalities of the moulds and clamping arrangements but again, as a ballpark, maybe 500mm x 500mm. In terms of what scale of detail can or should be included, there's not really any constraints on this other than the fact that you'll probably need to do some sanding and fettling of the finished components and so any detail smaller than, say, 0.5mm should probably be avoided as it's likely to be rubbed out or softened by the finishing process anyway.
Literally just the filleting wax is used. The light bond to the surface and the small area being filled with wax means you do not get any bleed through past the wax.
The IN2 resin used in this kit, has a HDT of around 80C after an oven post cure. It depends where on the engine the part is located and ideally it would be best to measure the temperature of the existing part when the engine is very hot to ensure it would be suitable.
No, the resin is quite low viscosity which helps avoid air entrapment and also the compression itself helps squeeze out any remaining air and excess resin.
Hi, that's a very good question. We did originally develop the kit using the AT30 SLOW hardener for this same reason but we fairly soon realised that it doesn't take very long to get the resin out of the pot and into the mould, generally you're working on relatively small parts and most of the time is in dabbing, consolidating, prodding, closing, clamping. For all of these operations the resin is already out of the pot and so its cure rate is much slow. The 17 mins 'pot-life' really does refer to the time the resin can sit in the pot, once it's on the mould and wetted into reinforcement, you've got more working time and in our experience, we never had a problem with working time on any of these components. If you're working on particularly large or complex parts and feel you need more working time than the AT30 FAST provides, you could just purchase some AT30 SLOW on its own, which could be used instead or mixed with the FAST to create a 'medium', giving you plenty more working time.
The epoxy used in the kit is our IN2 Infusion Epoxy which is designed to have a maximum service temperature of 75°C with an oven post cure.
The process of skinning with forged carbon is better suited to the resins in the skinning kit. So this kit would have a lot of materials you won't use. You would be best buying the XCR resin and XCR basecoat separately with the tow to get the materials you need.
ASK YOUR OWN QUESTION
Customer Product Reviews for Forged Carbon Fiber Development Kit
Love the product, superior to other brands as well!!
Just awesome… nothing more needs to be said to be honest. I was pleasently surprised by how easy it was to get a nice product in the end. This is one of the very few video-advertised products where expectation converts to reality 100%, especially on the first try. I honestly had more work 3D-printing the mold than with the rest of the process. I‘m really looking forward to using the kit in many little projects.
Bought the forged carbon and prepreg kit to get to know how carbon fiber parts are made. Well I've made like 3 parts for my motorcycle out of the forged carbon fiber, now looking to replace the TC80 with resin printed molds as i'm already familiar with 3d modelling and I can be lazier lmao. Thanks guys for bringing this knowledge with the kits to the general population :)
I've used the kit a number of times now for some smaller and quite complicated parts. It's extraordinarily well suited to these types of jobs - very pleased with the results. However, with the nature of smaller/thinner parts, it would be really helpful if it was possible to purchase quantities of continuous tow, separate to the kit, to build in the additional unidirectional strength where needed.
Bought the kit, followed the instructions and got a functional RC car part first try. There were a lot of thin, deep sections in my molds and for those I'd recommend 1. using more mold release than you think you need and 2. I'll probably pick up the slow hardener too, because loading those areas can take more time than the what fast hardener allows. Overall still a great kit, definitely recommended.
Just used the kit yesterday. Awe-some! Really. It's so comprehensive and a perfect use, especially for educational practical assignments.
Saw this video, went to your webshop, ordered everything, and made a quadcopter frame out of forged CF. It turned out great. The most challenging part was the mold design. I recorded the entire process, it's on my channel.
Surprised myself with a Forged Carbon kit for Christmas, gave it go right away and I'm blown away how easy it was to follow the steps in the video. Super happy with the first part, really in love with its looks. My next order of tools, resins, cleaners, etc. on your website has already been placed. Keep these videos coming!
First time making anything and using easy composite YouTube video and their kit I got great results!
I bought your development kit and have been printing moulds and making parts successfully. Absolutely love this process and your development kit was the perfect package.
I bought the forged carbon starter kit because I saw your last video. Got my first part done yesterday. It turned out amazing. Thanks for those informative videos. Please keep it up👏🏼
Very interesting results, I did try your forged carbon fibre method the other day and turned out great!
I LOVE IT! Great video! I've purchased the forged starter kit and made my first part. I am still really impressed - awesome product! Those tests you ran are great for showing the potential of the process. Is it possible to get those sets of data? I would love to use this method for designing and manufacturing the steering wheel of my teams formula student car.
We are super impressed with the product and the ease of use as well as the result. Just finished our first sample piece and have already had 2 enquires for parts using your product !! Looking forward to future projects using your products!
