Specification
Fabric Specification
| Fibre Specifics | Twaron® 2200 | |
|---|---|---|
| Weave | 2 x 2 Twill |
Weight and Dimensions
| Thickness | 0.4 | mm |
|---|---|---|
| Width | 32 | mm |
| Consolidated Thickness | 0.4 | mm |
| Areal Weight | 300 | g/m² |
Product Data
| Colour | Yellow | |
|---|---|---|
| Format | Flat Braid | |
| Fibre Type | Aramid / Kevlar Fibre | |
| UV Resistance | Poor | |
| Brand | Teijin |
Compatible With
| Compatible With | Epoxy | Yes |
|---|---|---|
| Compatible With | Polyester | Yes |
| Compatible With | Vinylester | Yes |
General Properties
| Gross Weight | 0.01 | kg |
|---|
Shipping Information
Non Hazardous
This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.
Package Size
There are no package size restrictions or surcharges for this product.
Delivery Cost
To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.

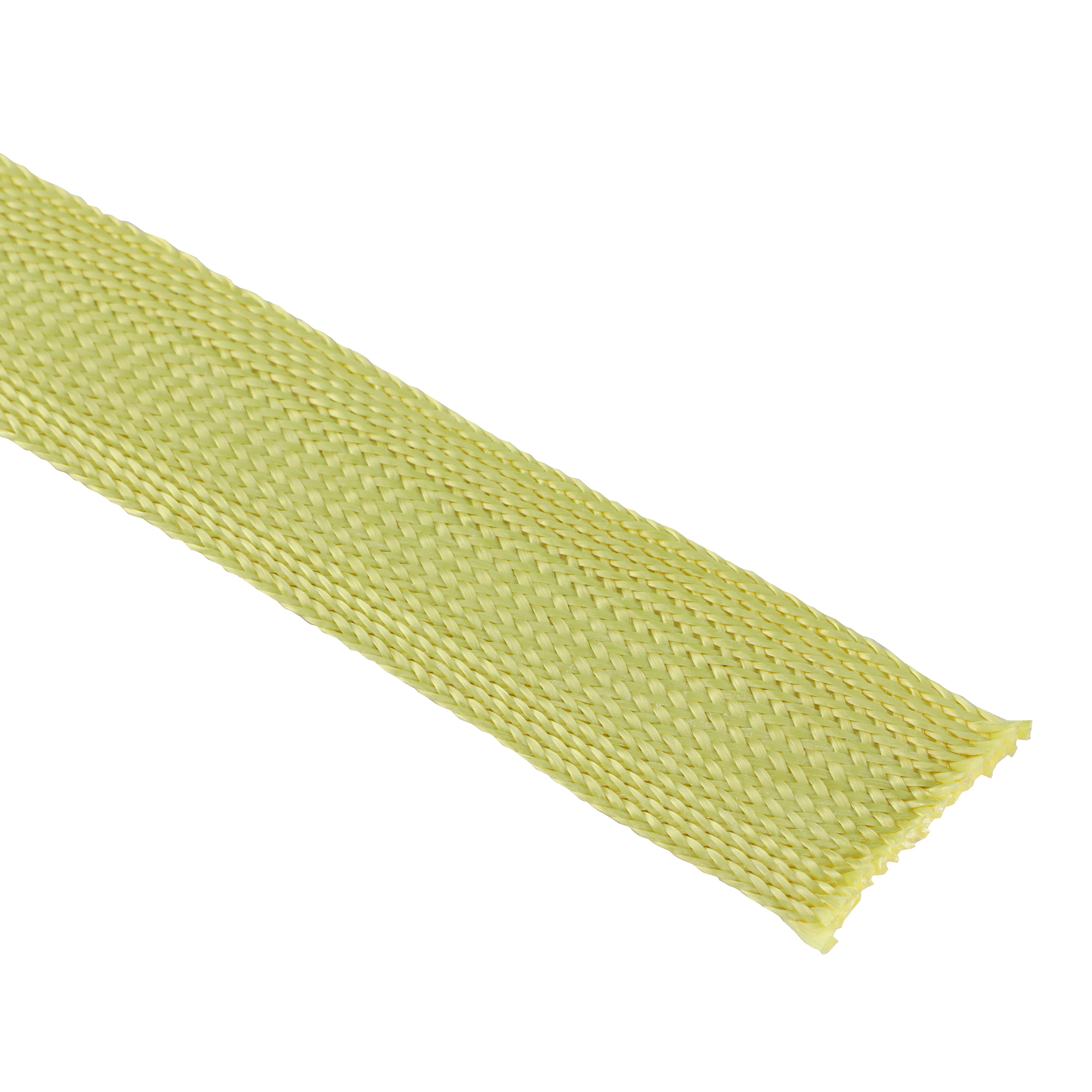

32mm (1.26") 300gsm (8.8oz) Lightweight Aramid Flat Braid
- KFB-32
- No reviews
High quality aramid flat braid in a 32mm (1.26") width. This 300gsm (8.8oz/yd²) narrow woven aramid braid is often used as seam-tape on kayaks but can be used in a variety of applications where a high strength or abrasion resistant composite reinforcement is required.
This braid is sold by the linear meter (1 meter = 1.09 yards).
Trade discounts
| 0-4 | 5-19 | 20-249 | 250+ |
|---|---|---|---|
| $4.60 | $4.00 | $2.85 | $2.00 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
The 32mm (1.26"), 300gsm (8.8oz/yd²) aramid tape is a flat braid made from high quality Twaron 2200 1210 aramid fiber (a direct equivalent to Kevlar fiber) in such a way that the braid is 'flat', i.e. it is not a tube/sleeve but instead resembles a densely woven tape. The fiber orientation of the tape is +/- 45 degrees which means that the braid is ideally suited to handling torsional loads, affords excellent conformity (drape) without buckling the fibers and resists crack propagation.
Aramid flat braid is used as a very high strength tape for joining composite panels or protecting joins in composite panels, most commonly around the seam of kayaks, canoes and other small boats.
Aramid flat braid is compatible with all conventional resin systems including polyester, vinylester and epoxy resin. Most commonly, the braid is applied to the outside seam of canoes and kayaks so completely overlap the join between the upper and lower hull moldings. The braid is then simply wet-out with epoxy resin and then once cured, over-painted once more with another coat of epoxy resin to create an extremely tough, durable and protective join.
Typical Uses
Aramid flat braid can be put to excellent use in a wide range of composite and none-composite applications including:
- Joining and protecting the join of canoe/kayak shells
- Reinforcing radial connections
- Reinforcement for pultrusion profiles
- Use in abrasion resistant protective garments
- Fire-toys (wound around spinners/sticks etc. to retain the fuel)
- General composites applications as a very strong reinforcement tape
How to Buy
This 32mm (1.26") flat aramid braid is sold by the linear meter (with the braid at its natural 45° orientation) in a continuous length. For example; if you purchase a quantity of '5' you will receive a continuous length of braid 5m (5.5yd) long. There is no minimum order quantity but several volume discounts are available for larger quantities.
Further Information
The lightweight flat braid on this page has a nominal width of 32mm (1.26") although, in common with all braids, elongating or shortening the braid will change its width.
We stock aramid flat braid in three different specifications as follows:
| Product | Weight | Stretched Width | Width at 45° | Stretched Weight |
|---|---|---|---|---|
| Lightweight 300g 14mm (0.55") | 300g/m² (8.8oz/yd²) | 10mm (0.39") | 14mm (0.55") | 3.9g/m (0.11oz/yd) |
| Lightweight 300g 32mm (1.26") | 300g/m² (8.8oz/yd²) | 25mm (1") | 32mm (1.26") | 8.56g/m (0.30oz/yd) |
| Heavyweight 400g 45mm (1.78") | 400g/m² (11.8oz/yd²) | 35mm (1.39") | 45mm (1.78") | 13g/m (0.38oz/yd) |
Trade discounts
| 0-4 | 5-19 | 20-249 | 250+ |
|---|---|---|---|
| $4.60 | $4.00 | $2.85 | $2.00 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
The 32mm (1.26"), 300gsm (8.8oz/yd²) aramid tape is a flat braid made from high quality Twaron 2200 1210 aramid fiber (a direct equivalent to Kevlar fiber) in such a way that the braid is 'flat', i.e. it is not a tube/sleeve but instead resembles a densely woven tape. The fiber orientation of the tape is +/- 45 degrees which means that the braid is ideally suited to handling torsional loads, affords excellent conformity (drape) without buckling the fibers and resists crack propagation.
Aramid flat braid is used as a very high strength tape for joining composite panels or protecting joins in composite panels, most commonly around the seam of kayaks, canoes and other small boats.
Aramid flat braid is compatible with all conventional resin systems including polyester, vinylester and epoxy resin. Most commonly, the braid is applied to the outside seam of canoes and kayaks so completely overlap the join between the upper and lower hull moldings. The braid is then simply wet-out with epoxy resin and then once cured, over-painted once more with another coat of epoxy resin to create an extremely tough, durable and protective join.
Typical Uses
Aramid flat braid can be put to excellent use in a wide range of composite and none-composite applications including:
- Joining and protecting the join of canoe/kayak shells
- Reinforcing radial connections
- Reinforcement for pultrusion profiles
- Use in abrasion resistant protective garments
- Fire-toys (wound around spinners/sticks etc. to retain the fuel)
- General composites applications as a very strong reinforcement tape
How to Buy
This 32mm (1.26") flat aramid braid is sold by the linear meter (with the braid at its natural 45° orientation) in a continuous length. For example; if you purchase a quantity of '5' you will receive a continuous length of braid 5m (5.5yd) long. There is no minimum order quantity but several volume discounts are available for larger quantities.
Further Information
The lightweight flat braid on this page has a nominal width of 32mm (1.26") although, in common with all braids, elongating or shortening the braid will change its width.
We stock aramid flat braid in three different specifications as follows:
| Product | Weight | Stretched Width | Width at 45° | Stretched Weight |
|---|---|---|---|---|
| Lightweight 300g 14mm (0.55") | 300g/m² (8.8oz/yd²) | 10mm (0.39") | 14mm (0.55") | 3.9g/m (0.11oz/yd) |
| Lightweight 300g 32mm (1.26") | 300g/m² (8.8oz/yd²) | 25mm (1") | 32mm (1.26") | 8.56g/m (0.30oz/yd) |
| Heavyweight 400g 45mm (1.78") | 400g/m² (11.8oz/yd²) | 35mm (1.39") | 45mm (1.78") | 13g/m (0.38oz/yd) |
Specification
Fabric Specification
| Fibre Specifics | Twaron® 2200 | |
|---|---|---|
| Weave | 2 x 2 Twill |
Weight and Dimensions
| Thickness | 0.4 | mm |
|---|---|---|
| Width | 32 | mm |
| Consolidated Thickness | 0.4 | mm |
| Areal Weight | 300 | g/m² |
Product Data
| Colour | Yellow | |
|---|---|---|
| Format | Flat Braid | |
| Fibre Type | Aramid / Kevlar Fibre | |
| UV Resistance | Poor | |
| Brand | Teijin |
Compatible With
| Compatible With | Epoxy | Yes |
|---|---|---|
| Compatible With | Polyester | Yes |
| Compatible With | Vinylester | Yes |
General Properties
| Gross Weight | 0.01 | kg |
|---|
For wet-lay lamination you will use a bit more resin than the weight of the fabric. A typical fibre resin ratio for Aramid based fabrics is 45/55. For example, with a 300gsm cloth, for 1 square metre you will have 300g of fabric and thus will need 367g of resin to wet it out, plus a small amount of wastage for the brush and mixing pot.
You can purchase a sample of our fabrics here.
No. Our Kevlar Fabric is only available in the classic Kevlar yellow.
We do not currently stock any hybrid pre-pregs either as carbon-aramid mix or pure aramid
Aramid and Diolen laminates can be drilled into using a HSS drill bit designed for drilling steel. Start with a pilot hole and work up the diameter until the desired hole size is achieved. Any aramid/diolen fluff can be cut off with a sharp Stanley blade or scalpel.
