Downloads (1)
 | Technical Datasheet (TDS) |  313 KB |
Specification
Fabric Specification
| Colour | Black | |
|---|---|---|
| Fibre Orientation | 0, 90 | |
| Format | Woven Fabric | |
| Fibre Type | Carbon Fibre | |
| Weave | 5 Harness Satin | |
| Filament Count | 6k | |
| Ends | 4.9 | cm |
| Picks | 4.9 | cm |
| Fibre Specifics | HexTow AS4 6k |
Weight and Dimensions
| Width | 1250 | mm |
|---|---|---|
| Thickness | 0.53 | mm |
| Consolidated Thickness | 0.53 | mm |
| Areal Weight | 375 | g/m² |
Fibre Properties
| UV Resistance | Fully UV Stable | |
|---|---|---|
| Filament Diameter | 7 | µm |
| Elongation at Break | 2.0 | % |
Compatible With
| Compatible With | Epoxy | Yes |
|---|---|---|
| Compatible With | Polyester | Yes |
| Compatible With | Vinylester | Yes |
General Properties
| Gross Weight | 0.468 | kg |
|---|
Shipping Information
Non Hazardous
This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.
Package Size
When packaged, this product is over 1m in length. A small 'additional handling' charge will be included in the shipping cost.
Delivery Cost
To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.
375g (11.1oz) 5HS 6k Carbon Fiber Cloth 1250mm (49")
- CF-5HS-375-1250
- No reviews
Popular in wind-energy and aerospace industries this premium quality middleweight 375gsm (11.06oz/yd²) carbon fiber cloth is woven in a 'satin weave' for excellent drape using a high strength fiber resulting in a smooth finish with minimum print-through.
1.25m (49") wide, sold by the linear meter (1 meter = 1.09 yards).
Trade discounts
| 0-4 | 5-9 | 10-49 | 50+ |
|---|---|---|---|
| $48.60 | $45.75 | $44.35 | $42.90 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.

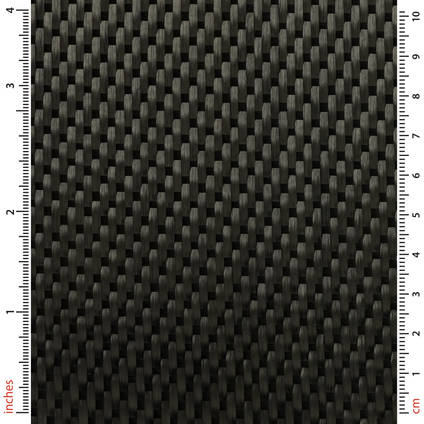

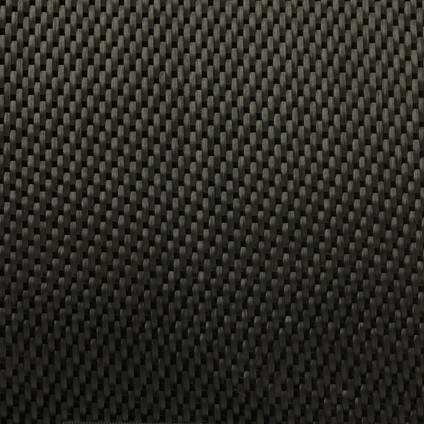

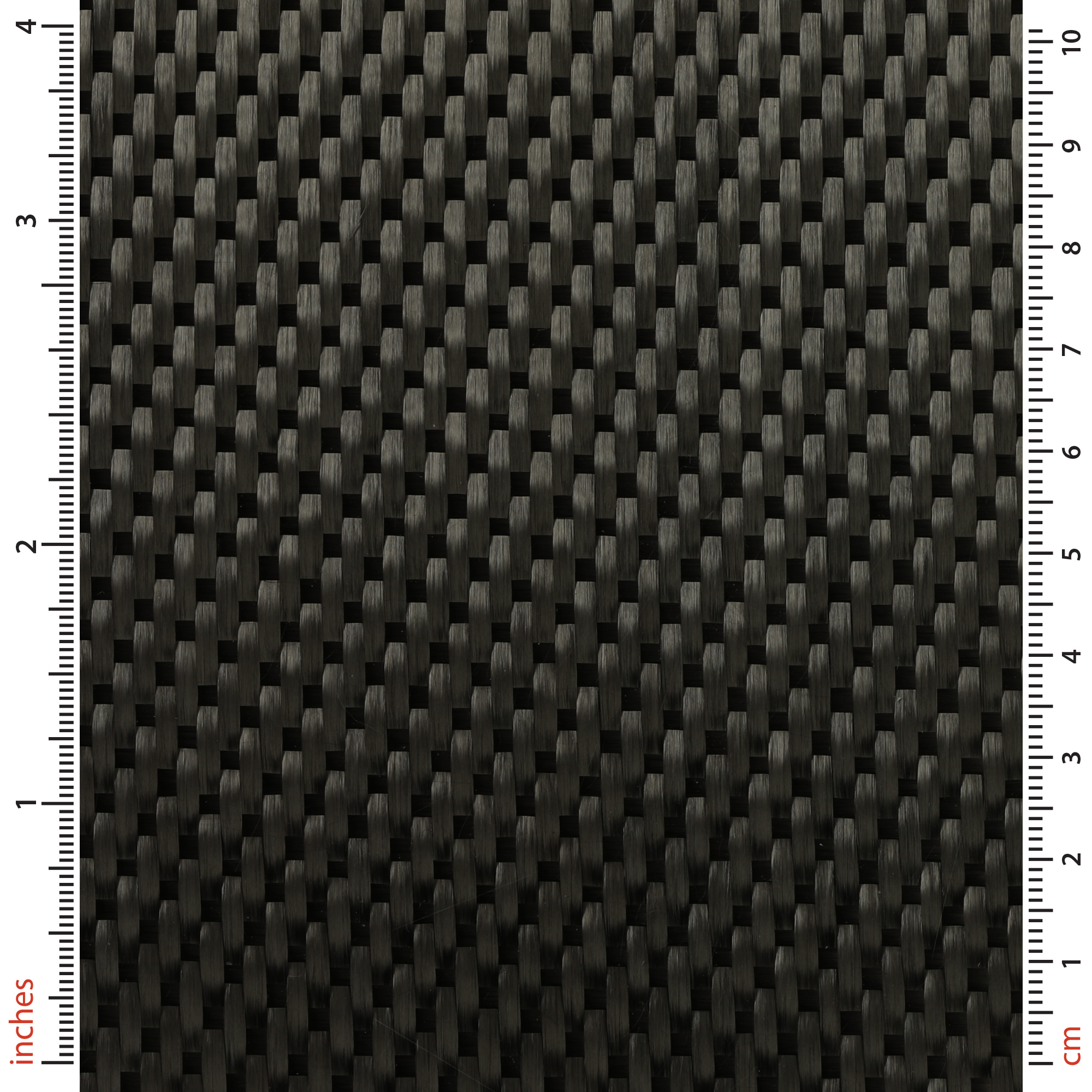

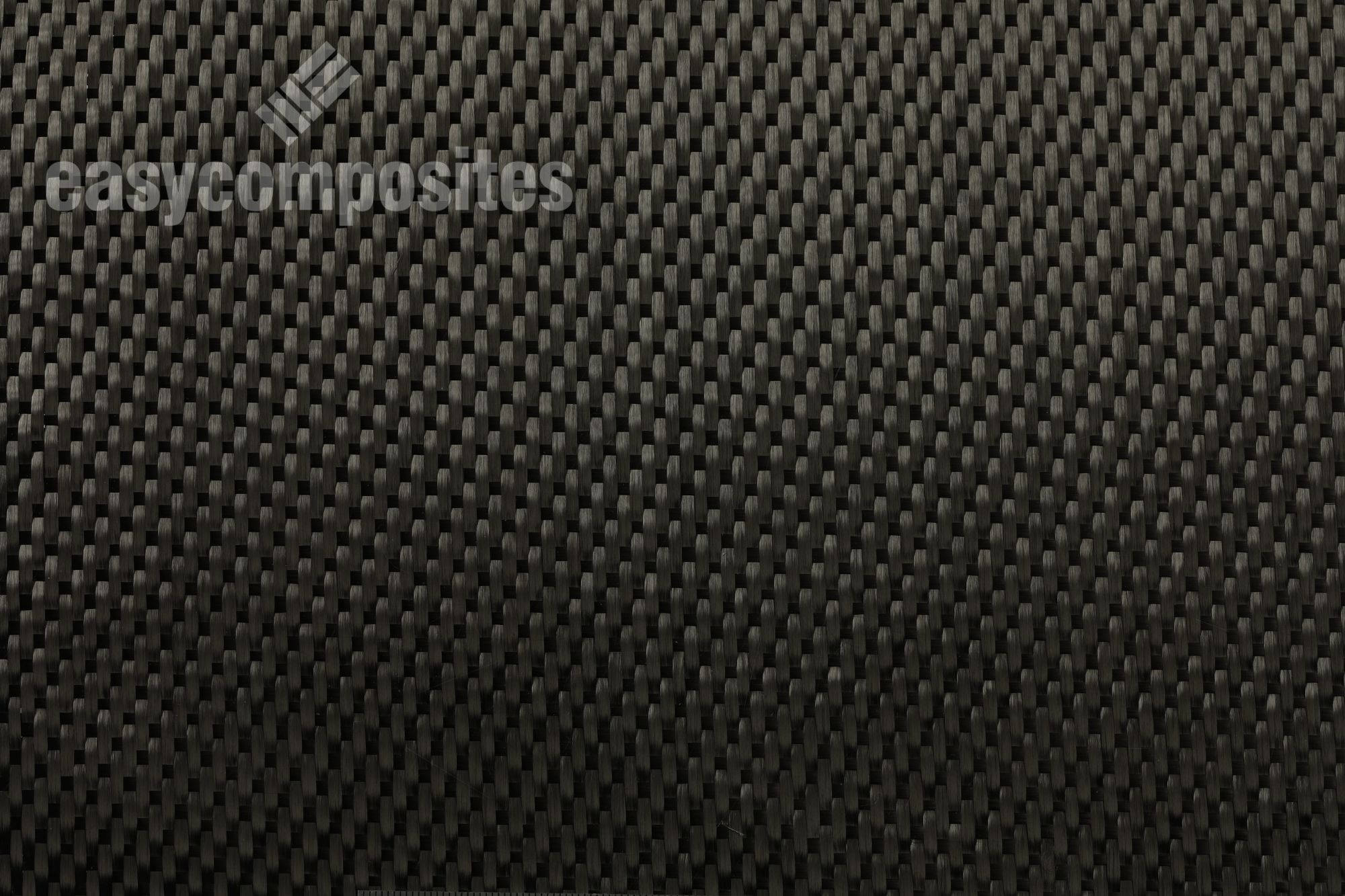

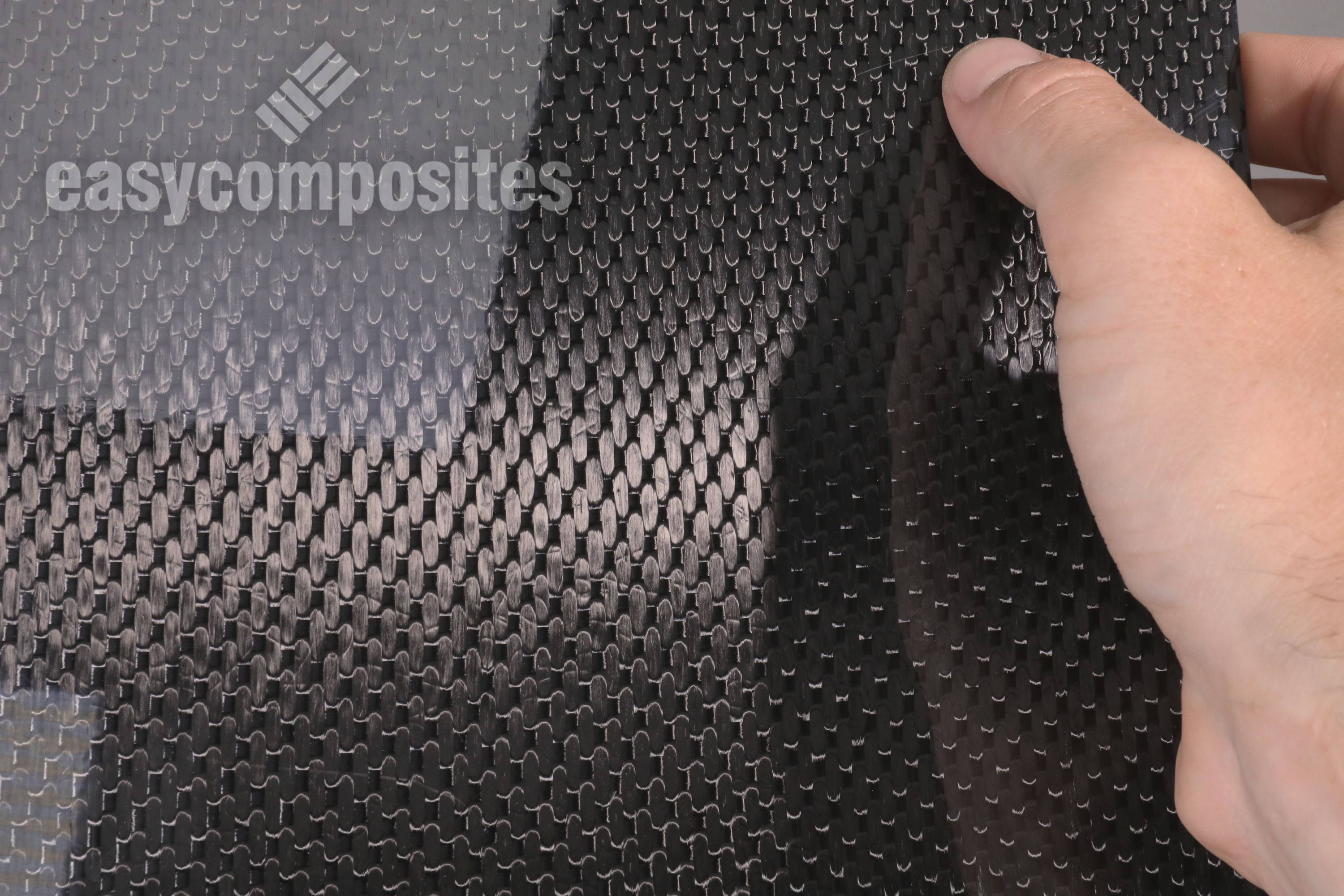

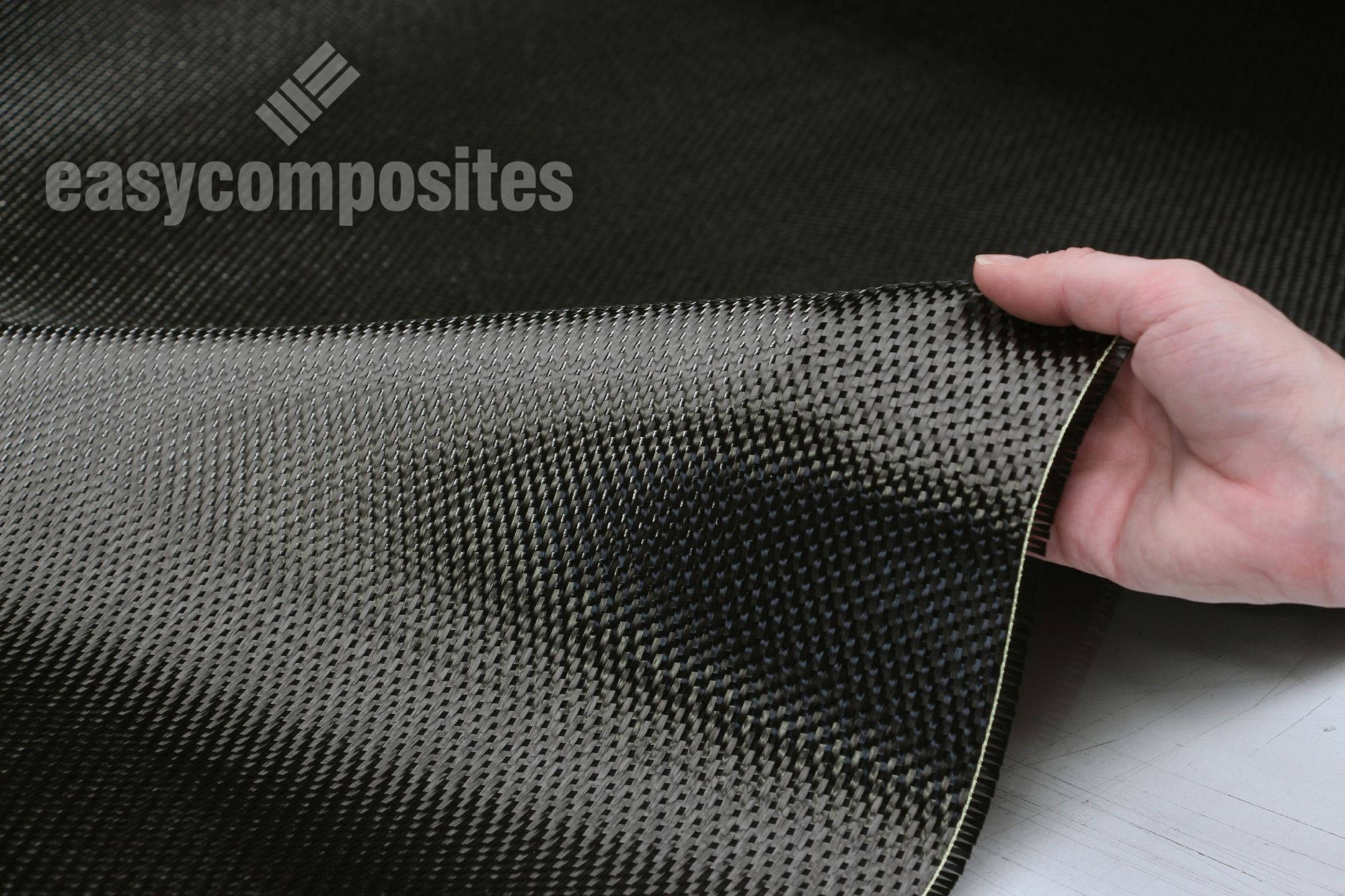

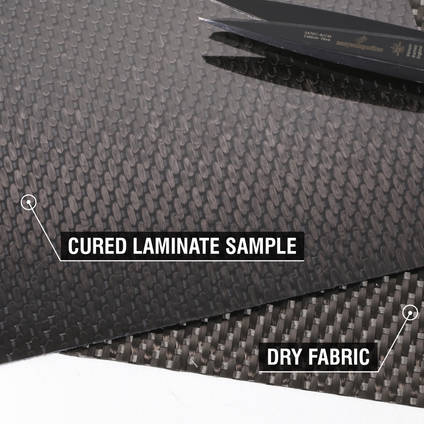

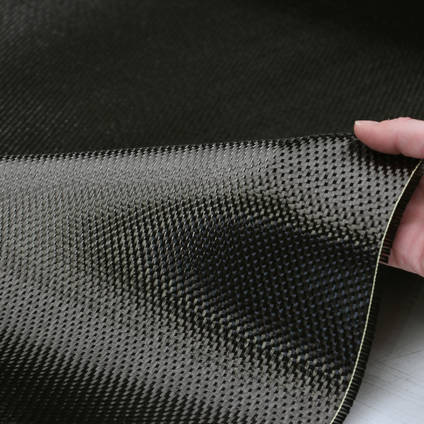

This fabric is a premium quality 375gsm (11.1oz/yd²) 5 Harness Satin weave carbon fiber fabric woven using high strength 6K carbon fibers.

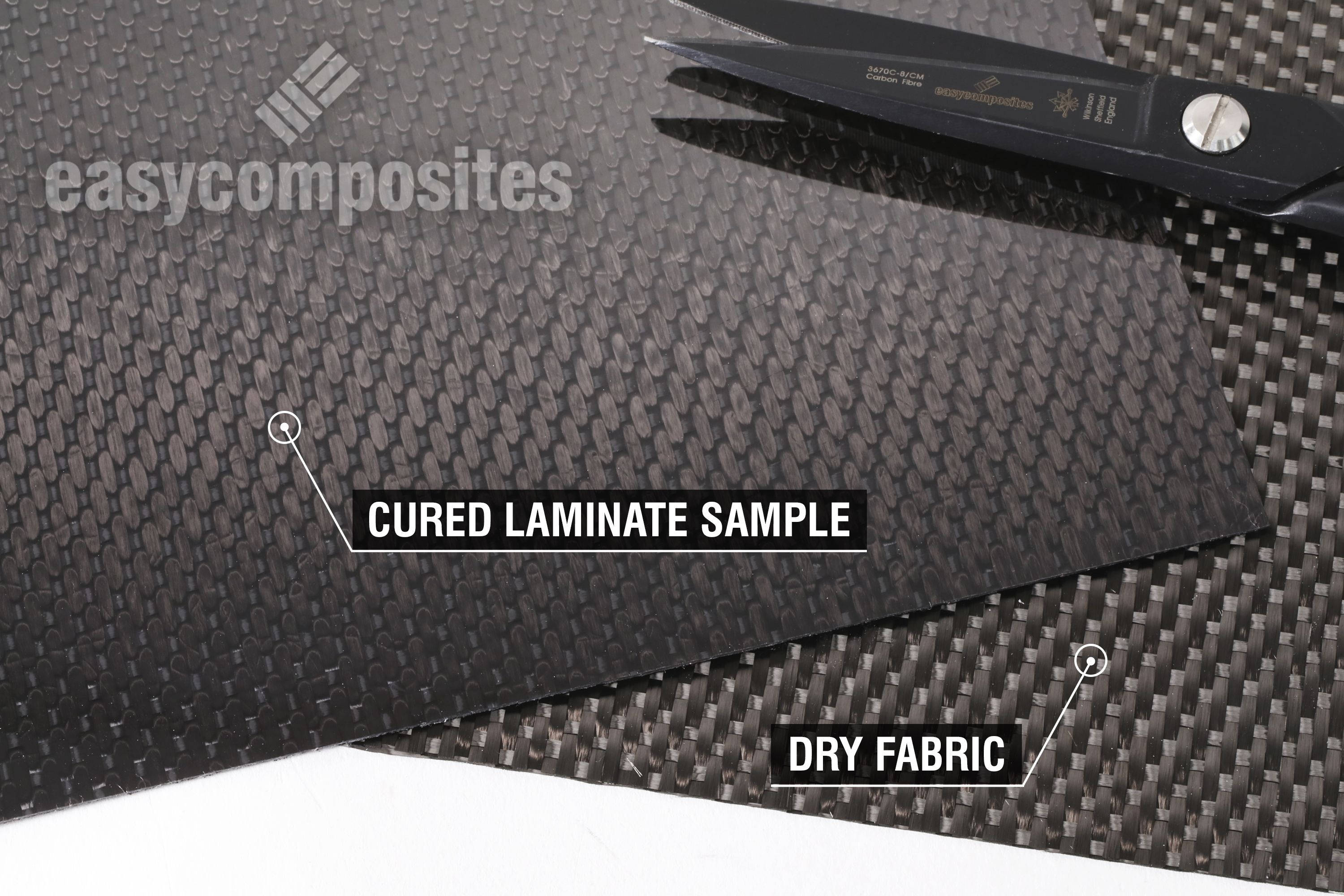

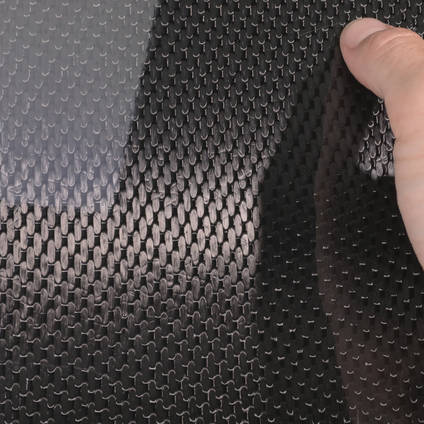

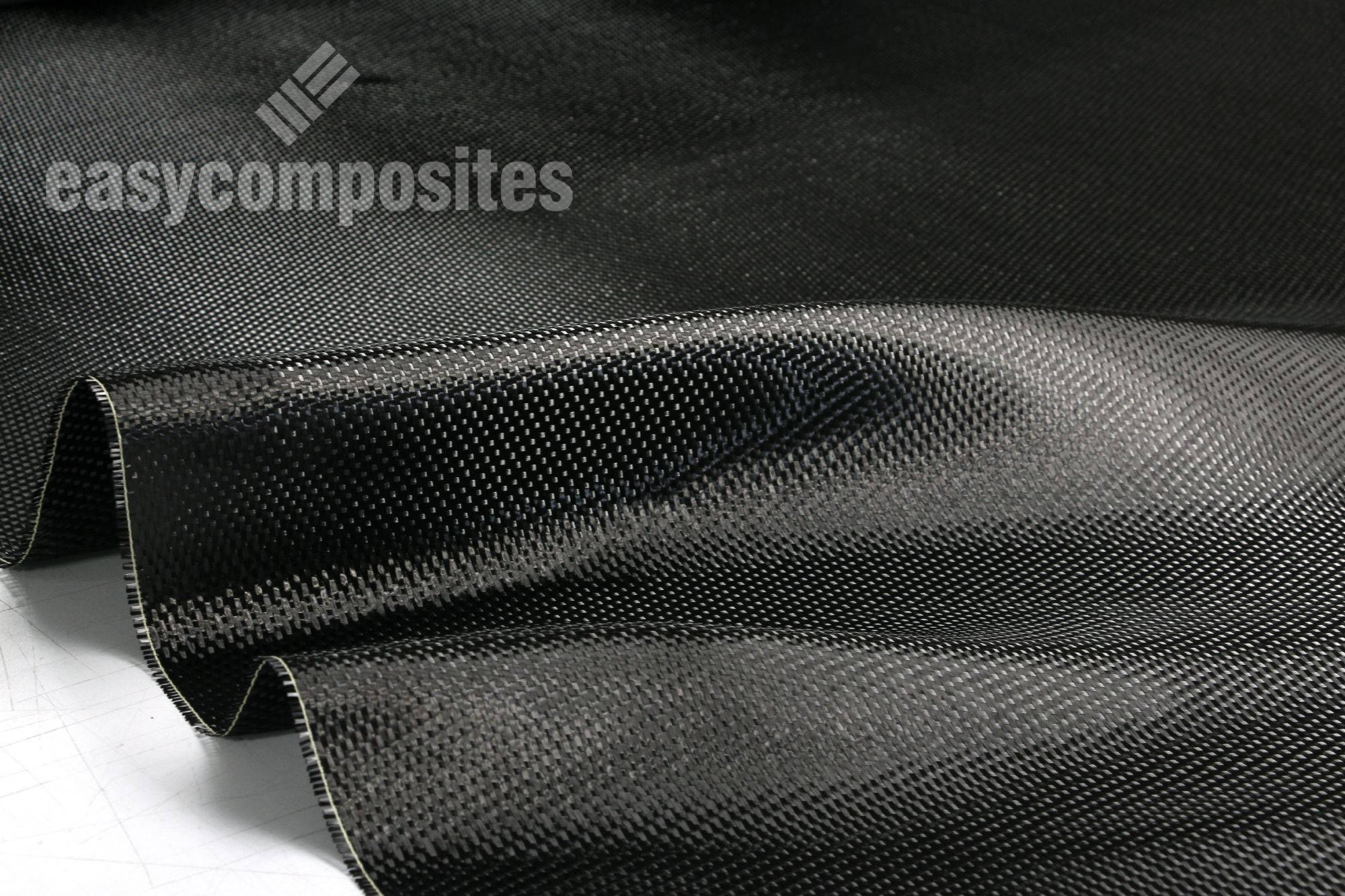

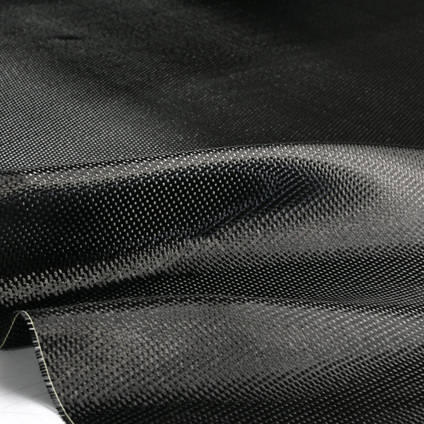

The combination of a medium weight 6k tow and the 5 harness satin weave result is a very smooth fabric with a very close/dense weave pattern. Such fabrics are very easy to handle and show almost no 'gaps'. The 5 harness weave provides extremely good drape and a very smooth surface finish. Woven using a high strength fiber, this high quality fabric is ideal for backing plies on structural components or where a good level of surface smoothness and drapeability is needed. Also the unbalanced lay up is ideal when you need extra strength in one orientation.
How to Buy
This 375gsm (11.1oz) carbon fiber cloth roll is 1.25m (49") wide and the fabric is sold by the linear meter (1 meter = 1.09 yards). The unit price shown is for 1 linear meter but volume discounts automatically apply for larger quantities of fabric.
Trade discounts
| 0-4 | 5-9 | 10-49 | 50+ |
|---|---|---|---|
| $48.60 | $45.75 | $44.35 | $42.90 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
This fabric is a premium quality 375gsm (11.1oz/yd²) 5 Harness Satin weave carbon fiber fabric woven using high strength 6K carbon fibers.
The combination of a medium weight 6k tow and the 5 harness satin weave result is a very smooth fabric with a very close/dense weave pattern. Such fabrics are very easy to handle and show almost no 'gaps'. The 5 harness weave provides extremely good drape and a very smooth surface finish. Woven using a high strength fiber, this high quality fabric is ideal for backing plies on structural components or where a good level of surface smoothness and drapeability is needed. Also the unbalanced lay up is ideal when you need extra strength in one orientation.
How to Buy
This 375gsm (11.1oz) carbon fiber cloth roll is 1.25m (49") wide and the fabric is sold by the linear meter (1 meter = 1.09 yards). The unit price shown is for 1 linear meter but volume discounts automatically apply for larger quantities of fabric.
Downloads (1)
| Technical Datasheet (TDS) | 313 KB |
Specification
Fabric Specification
| Colour | Black | |
|---|---|---|
| Fibre Orientation | 0, 90 | |
| Format | Woven Fabric | |
| Fibre Type | Carbon Fibre | |
| Weave | 5 Harness Satin | |
| Filament Count | 6k | |
| Ends | 4.9 | cm |
| Picks | 4.9 | cm |
| Fibre Specifics | HexTow AS4 6k |
Weight and Dimensions
| Width | 1250 | mm |
|---|---|---|
| Thickness | 0.53 | mm |
| Consolidated Thickness | 0.53 | mm |
| Areal Weight | 375 | g/m² |
Fibre Properties
| UV Resistance | Fully UV Stable | |
|---|---|---|
| Filament Diameter | 7 | µm |
| Elongation at Break | 2.0 | % |
Compatible With
| Compatible With | Epoxy | Yes |
|---|---|---|
| Compatible With | Polyester | Yes |
| Compatible With | Vinylester | Yes |
General Properties
| Gross Weight | 0.468 | kg |
|---|
ASK YOUR OWN QUESTION
Customer Product Reviews for 375g (11.1oz) 5HS 6k Carbon Fiber Cloth 1250mm (49")
SUBMIT YOUR OWN PRODUCT REVIEW
We publish all reviews for verified purchases. Submit your own review and help other customers with their choices.Login to submit a product reviewSUBMIT YOUR OWN PRODUCT REVIEW
We publish all reviews for verified purchases. Submit your own review and help other customers with their choices.Login to submit a product reviewShipping Information
Non Hazardous
This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.
Package Size
When packaged, this product is over 1m in length. A small 'additional handling' charge will be included in the shipping cost.
Delivery Cost
To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.
