Specification
Fabric Specification
| Fibre Specifics | E-Glass | |
|---|---|---|
| Weave | 1 x 1 Plain |
Weight and Dimensions
| Thickness | 0.33 | mm |
|---|---|---|
| Width | 1000 | mm |
| Consolidated Thickness | 0.33 | mm |
| Areal Weight | 290 | g/m² |
Product Data
| Colour | White | |
|---|---|---|
| Format | Woven Fabric | |
| Fibre Type | Glass Fibre |
Mechanical Properties
| Ends | 4 | cm |
|---|---|---|
| Picks | 4 | cm |
Compatible With
| Compatible With | Epoxy | Yes |
|---|---|---|
| Compatible With | Polyester | Yes |
| Compatible With | Vinylester | Yes |
General Properties
| Gross Weight | 0.29 | kg |
|---|
Shipping Information
Non Hazardous
This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.
Package Size
When packaged, this product is over 1m in length. A small 'additional handling' charge will be included in the shipping cost.
Delivery Cost
To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.

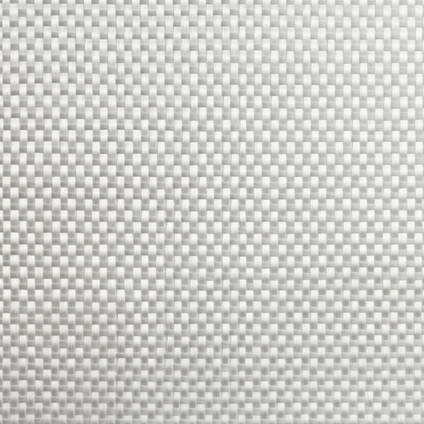

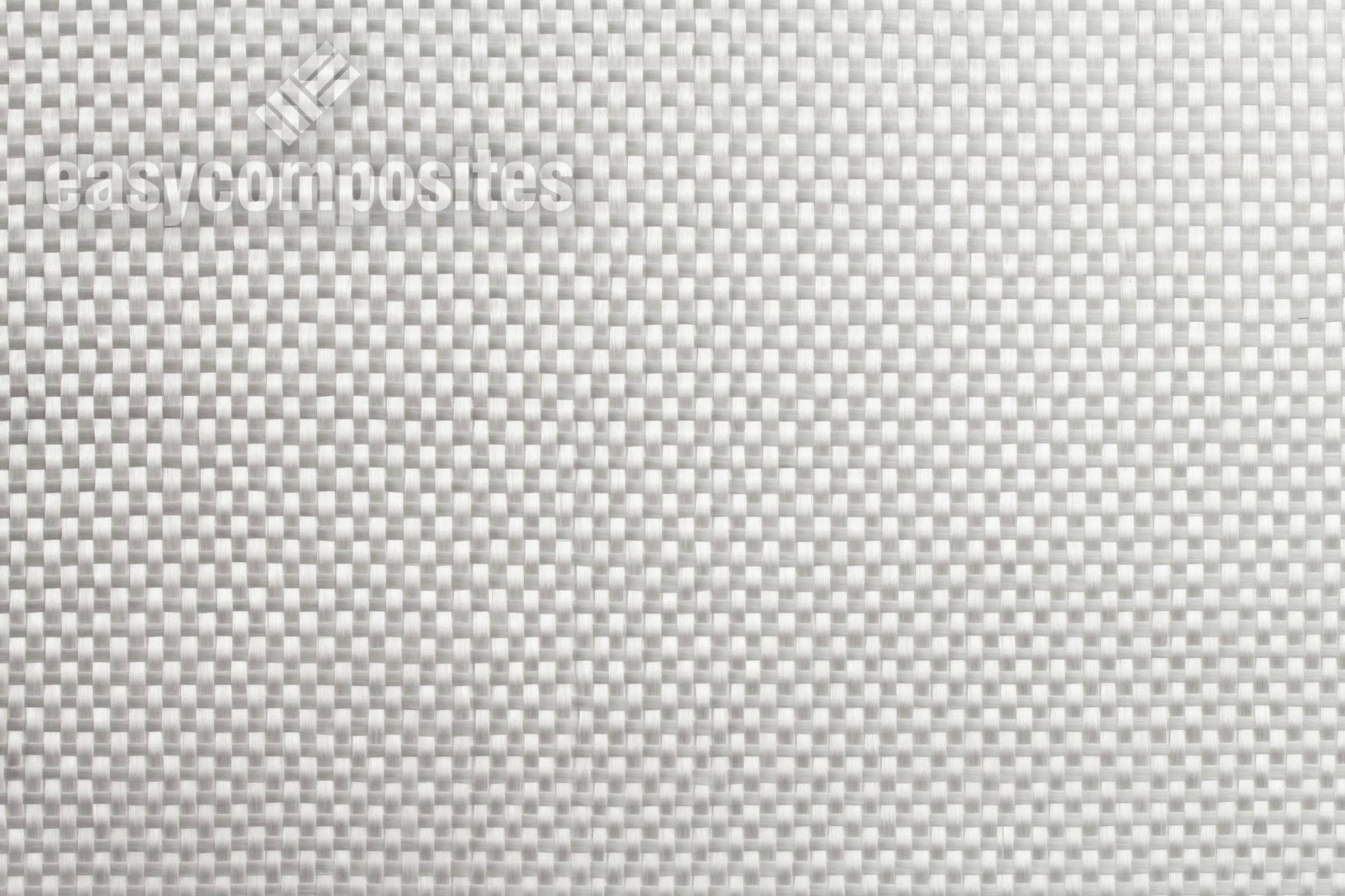

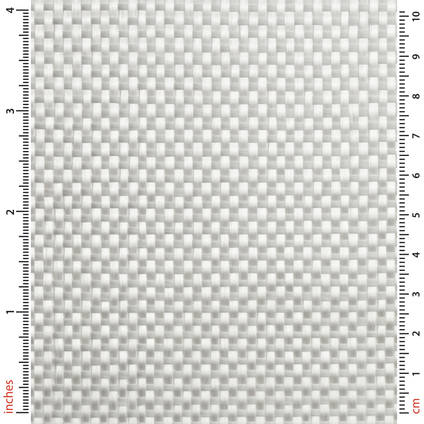

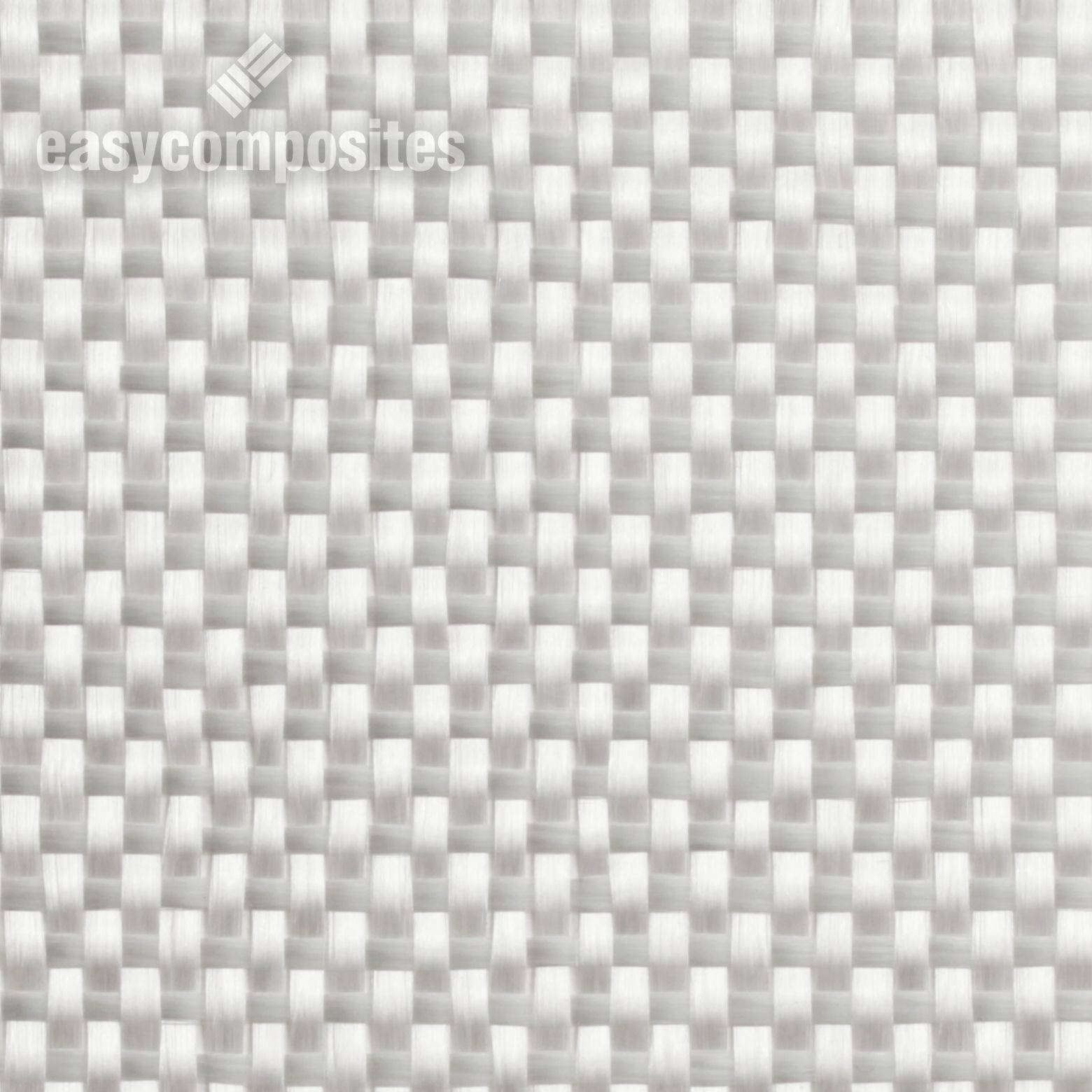

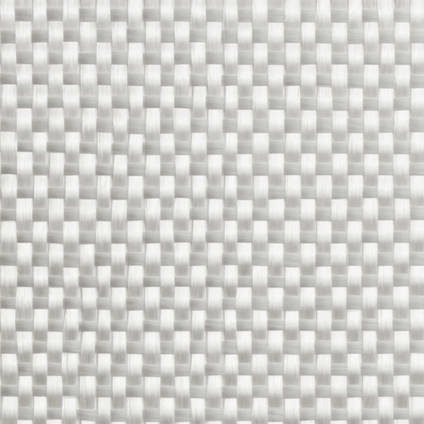

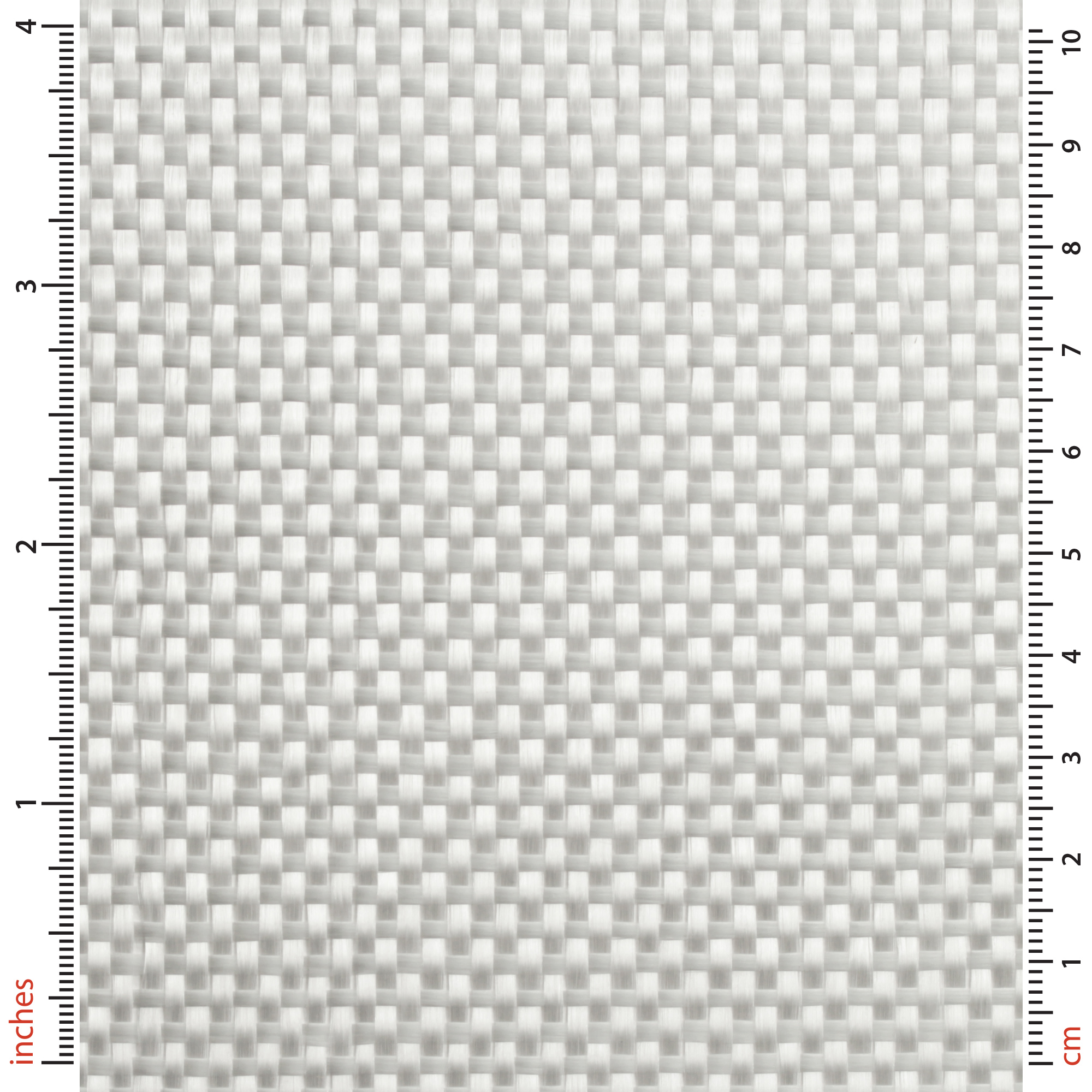

290g (8.6oz) Plain Weave Woven Glass Cloth 1000mm (39")
- GF-PL-290-100
- No reviews
Traditional 'woven roving' low-cost woven glass reinforcement for general fiberglassing. Woven roving makes a good alternative to chopped strand mat (CSM) in many applications where its woven construction produces a stronger/stiffer laminate. Being a woven cloth it uses no binder and so is compatible with all resin systems, including epoxy.
1m (39") wide. sold by the linear meter or in full box quantities.
Trade discounts
| 0-4 | 5-19 | 20-49 | 50-143 | 144+ |
|---|---|---|---|---|
| $5.45 | $5.10 | $4.40 | $3.65 | $3.20 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
290gsm (8.6oz/yd²) plain weave woven rovings (woven glass fabric) is the most common and cost effective fabric reinforcement used in composites. Woven glass has superior performance to chopped strand matt and can bring many of the structural advantage of a woven reinforcement (like carbon fiber) for a fraction of the cost.
Use woven glass to reinforce composites parts, either used in conjunctions with more advanced reinforcements such as carbon fiber or Kevlar or on its own. Woven glass can also be used to reinforce molds.
Typical Uses
Our woven 'E' glass does not include any chemical binders and therefore is suitable for use with any resin system including epoxy, polyester and vinylester.
- Fiberglass parts including kayak/boat hulls
- Fiberglass (GRP/FRP) sheet
- Add low cost additional reinforcement to carbon fiber or Kevlar parts
- Fiberglass mold making
How to Buy
This 290gsm (8.55oz/yd²) woven glass cloth is 1m (39") wide and the fabric is sold by the linear meter (1 meter = 1.09 yards). The unit price shown is for 1 linear meter, volume discounts automatically apply for larger quantities of fabric. In the 'Qty' box, enter the number of linear meters you require.
Small Quantities are Folded
Woven glass reinforcement is not considered a cosmetic reinforcement and, as such, small quantities - up to 5m (5.5yd) - will be carefully folded in a pack. This avoids long package surcharges and therefore reduces the shipping price you will pay and does not affect the performance of the material.
Orders for quantities in excess of 5m (5.5yd) will be supplied on a roll.
If you need your fabric to be supplied on a roll for a particular application then please ensure you place an order for 6m (6.6yd) or more.
Trade discounts
| 0-4 | 5-19 | 20-49 | 50-143 | 144+ |
|---|---|---|---|---|
| $5.45 | $5.10 | $4.40 | $3.65 | $3.20 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
290gsm (8.6oz/yd²) plain weave woven rovings (woven glass fabric) is the most common and cost effective fabric reinforcement used in composites. Woven glass has superior performance to chopped strand matt and can bring many of the structural advantage of a woven reinforcement (like carbon fiber) for a fraction of the cost.
Use woven glass to reinforce composites parts, either used in conjunctions with more advanced reinforcements such as carbon fiber or Kevlar or on its own. Woven glass can also be used to reinforce molds.
Typical Uses
Our woven 'E' glass does not include any chemical binders and therefore is suitable for use with any resin system including epoxy, polyester and vinylester.
- Fiberglass parts including kayak/boat hulls
- Fiberglass (GRP/FRP) sheet
- Add low cost additional reinforcement to carbon fiber or Kevlar parts
- Fiberglass mold making
How to Buy
This 290gsm (8.55oz/yd²) woven glass cloth is 1m (39") wide and the fabric is sold by the linear meter (1 meter = 1.09 yards). The unit price shown is for 1 linear meter, volume discounts automatically apply for larger quantities of fabric. In the 'Qty' box, enter the number of linear meters you require.
Small Quantities are Folded
Woven glass reinforcement is not considered a cosmetic reinforcement and, as such, small quantities - up to 5m (5.5yd) - will be carefully folded in a pack. This avoids long package surcharges and therefore reduces the shipping price you will pay and does not affect the performance of the material.
Orders for quantities in excess of 5m (5.5yd) will be supplied on a roll.
If you need your fabric to be supplied on a roll for a particular application then please ensure you place an order for 6m (6.6yd) or more.
Specification
Fabric Specification
| Fibre Specifics | E-Glass | |
|---|---|---|
| Weave | 1 x 1 Plain |
Weight and Dimensions
| Thickness | 0.33 | mm |
|---|---|---|
| Width | 1000 | mm |
| Consolidated Thickness | 0.33 | mm |
| Areal Weight | 290 | g/m² |
Product Data
| Colour | White | |
|---|---|---|
| Format | Woven Fabric | |
| Fibre Type | Glass Fibre |
Mechanical Properties
| Ends | 4 | cm |
|---|---|---|
| Picks | 4 | cm |
Compatible With
| Compatible With | Epoxy | Yes |
|---|---|---|
| Compatible With | Polyester | Yes |
| Compatible With | Vinylester | Yes |
General Properties
| Gross Weight | 0.29 | kg |
|---|
For wet-lay lamination you will use approximately the same weight of resin as the weight of the fabric. For example, with a 200gsm cloth, for 1 square metre you will have 200g of fabric and thus will need 200g of resin to wet it out, plus a small amount of wastage for the brush and mixing pot.
You can purchase a sample of our glass cloth here.
The manufacturer has not been able to provide any specific CTE data for the woven glass. However, e-glass, which is what this fabric is made from, has a nominal CTE of 5.4 µm/m-°C for temperatures between -30 and 250°C.
Yes these rollers are ideal for spreading resins over woven fibreglass especially for large layups.
