Specification
Weight and Dimensions
| Wall Thickness | 3 | mm |
|---|---|---|
| Outside Diameter (OD) | 18.7 | mm |
| Inside Diameter (ID) | 12.7 | mm |
Product Data
| Colour | Clear | |
|---|---|---|
| Max Service Temp | 60 | °C |
General Properties
| Gross Weight | 0.1 | kg |
|---|
Shipping Information
Non Hazardous
This product is not classed as dangerous goods for transport and can be shipped to all US addresses without restriction.
Package Size
There are no package size restrictions or surcharges for this product.
Delivery Cost
To find the cost for delivery of this item to your address, add it to your cart then use the instant shipping calculator on the cart page.

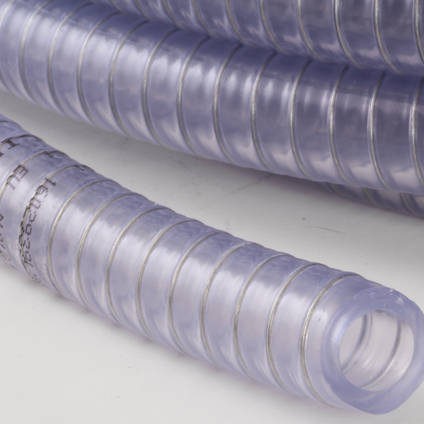

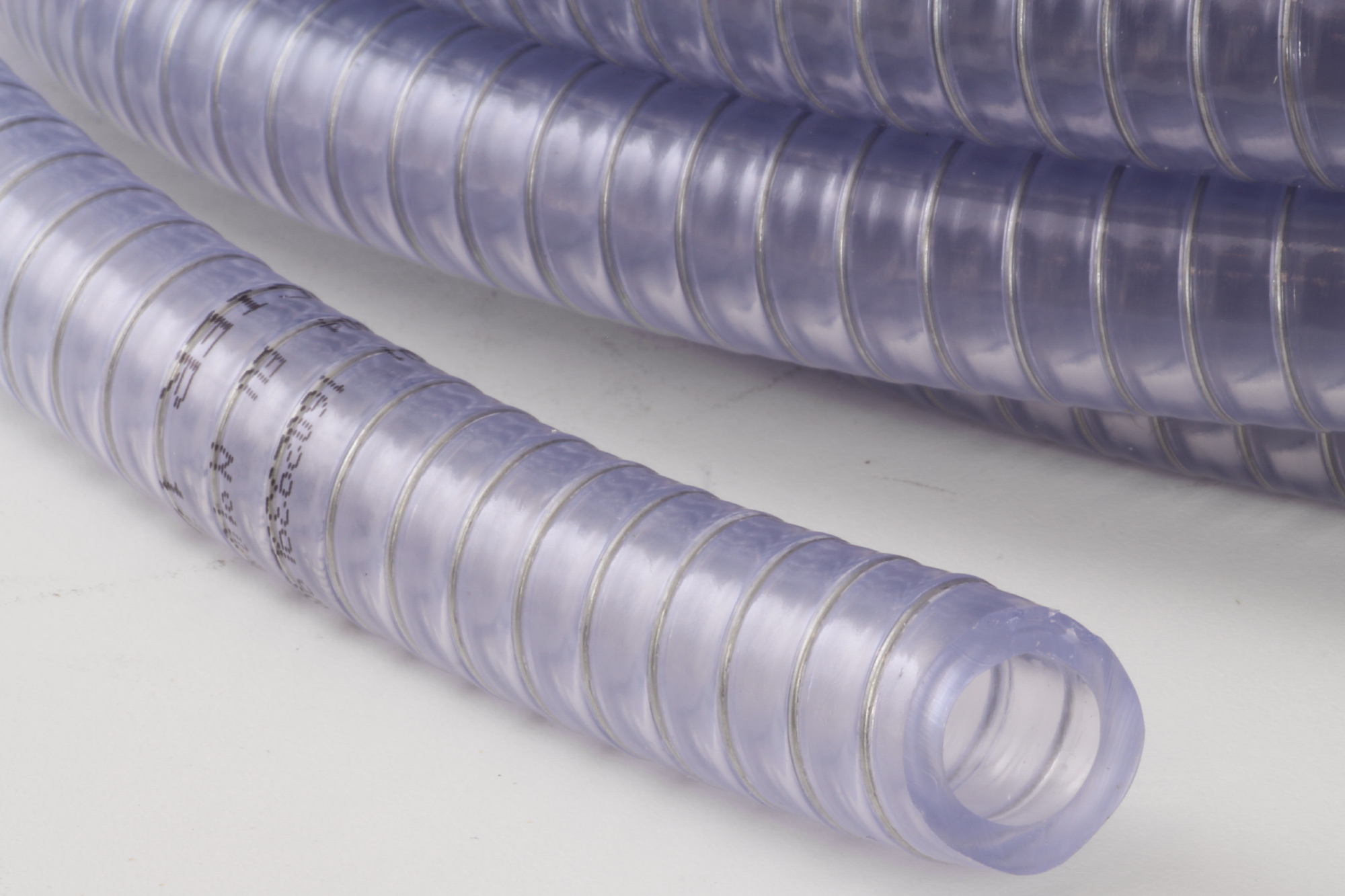

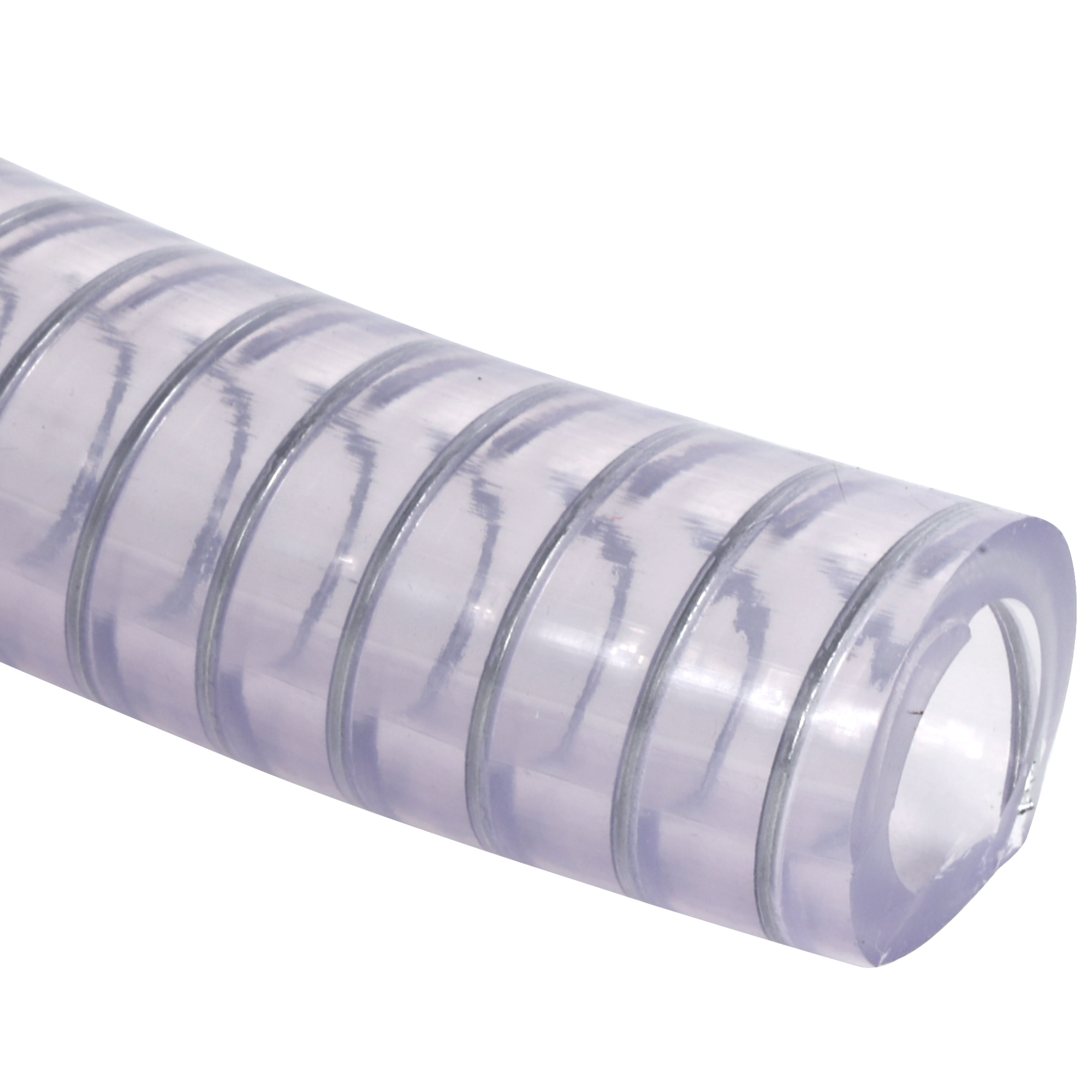

1/2" I.D. Wire Reinforced Vacuum Hose
- VH-PVC12
- No reviews
1/2" (12mm) internal diameter wire reinforced PVC vacuum hose recommended for higher capacity vacuum pumps and equipment.
Sold by the linear meter (1 meter = 1.09 yards). Volume discounts apply.
Trade discounts
| 0-29 | 30+ |
|---|---|
| $6.25 | $5.05 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
High quality wire reinforced PVC hose developed specifically for high vacuum applications.
This 1/2 inch reinforced vacuum hose is ideal for use with our DVP EC.20 Industrial Vacuum Pump when the higher flow rate of 1/2" tubing is desired - such as rapid degassing of volatile and rapid curing resins.
The hose has a 1/2" (12.7mm) ID bore with an 3/4" (18.7mm) OD.
Further Information
How to Use
To connect the wire reinforced PVC hose to a pump or piece of vacuum equipment we recommend using a 12mm (1/2") Hose-Tail Barb Connector 1/2" BSP. The 1/2" BSP thread then enables easy fitting of the hose to the equipment either directly to a 1/2" BSP thread on the equipment itself or via one of our other numerous High quality vacuum fittings and connectors.
The hose is a tight fit onto the hose tail barb connector. To help ensure simple and easy fitting, we recommend dipping the end of the hose into very hot water to soften the PVC, thus enabling the hose to easily slide onto the hose tail barb. Once cooled down, the hose will remain tightly fitted onto the barb and is very unlikely to work loose.
Trade discounts
| 0-29 | 30+ |
|---|---|
| $6.25 | $5.05 |
We won’t be beaten on price!
If you believe you’re buying an equivalent product cheaper elsewhere, contact us to discuss your requirements.
High quality wire reinforced PVC hose developed specifically for high vacuum applications.
This 1/2 inch reinforced vacuum hose is ideal for use with our DVP EC.20 Industrial Vacuum Pump when the higher flow rate of 1/2" tubing is desired - such as rapid degassing of volatile and rapid curing resins.
The hose has a 1/2" (12.7mm) ID bore with an 3/4" (18.7mm) OD.
Further Information
How to Use
To connect the wire reinforced PVC hose to a pump or piece of vacuum equipment we recommend using a 12mm (1/2") Hose-Tail Barb Connector 1/2" BSP. The 1/2" BSP thread then enables easy fitting of the hose to the equipment either directly to a 1/2" BSP thread on the equipment itself or via one of our other numerous High quality vacuum fittings and connectors.
The hose is a tight fit onto the hose tail barb connector. To help ensure simple and easy fitting, we recommend dipping the end of the hose into very hot water to soften the PVC, thus enabling the hose to easily slide onto the hose tail barb. Once cooled down, the hose will remain tightly fitted onto the barb and is very unlikely to work loose.
Specification
Weight and Dimensions
| Wall Thickness | 3 | mm |
|---|---|---|
| Outside Diameter (OD) | 18.7 | mm |
| Inside Diameter (ID) | 12.7 | mm |
Product Data
| Colour | Clear | |
|---|---|---|
| Max Service Temp | 60 | °C |
General Properties
| Gross Weight | 0.1 | kg |
|---|
